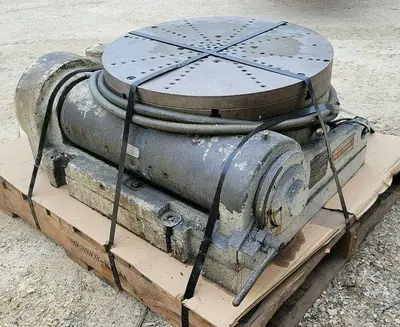

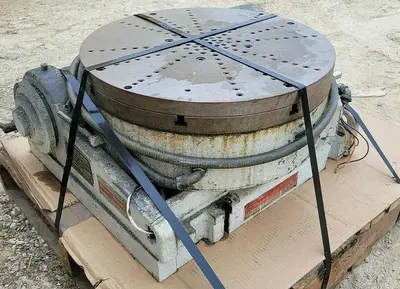

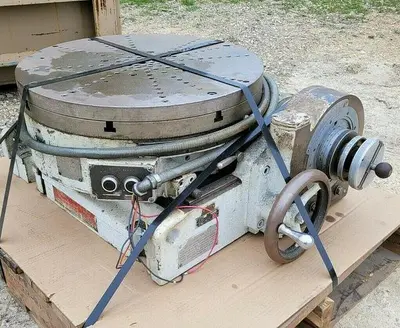

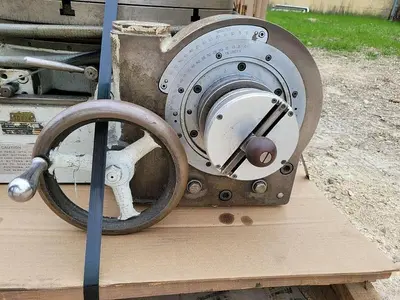

USED 1954 PRATT & WHITNEY M-1896

Pratt & Whitney 24" Motorized Tilting Rotary TableModel: M-1896 | Diameter: 24" | Universal PositioningProfessional OverviewThe Pratt & Whitney M-1896 is a heavy-duty, high-precision motorized tilting rotary table designed for the most demanding aerospace and toolroom applications. Unlike standard horizontal tables, the M-1896 offers universal positioning, allowing operators to rotate workpieces 360 degrees while simultaneously tilting the table to achieve complex angles for spherical tangs, intricate curves, and multi-axis drilling. Built with the massive cast-iron construction Pratt & Whitney is known for, this unit provides the rigidity necessary to maintain sub-thousandth tolerances even under heavy load.Technical SpecificationsFace Plate Diameter: 24" precision-ground surfaceLoad Capacity:Horizontal Position: 1,200 lbsTilting Position: 500 lbsMechanical Precision:Axial Runout: 0.0003"Parallelism: 0.0003"Flatness: 0.003"Indexing & Graduation:360-Degree Scale: 1-minute increments on the main dialUltra-Precision: 2-second vernier for extremely fine positioningDrive System: 1/4 HP AC Motor providing reversible rotation (CW/CCW)Table Features: 5 Parallel T-slots and 1 Cross T-slot for versatile workholdingKey Performance FeaturesMotorized Efficiency: The integrated motorized drive eliminates the fatigue of manual rotation, providing consistent feed rates for circular milling or rapid indexing between operations.Extreme Rigidity: Weighing approximately 900 lbs, the M-1896 uses its mass to dampen vibration and resist deflection, ensuring that your setup remains "locked-in" regardless of the tilting angle.Low-Profile Design: With an overall height of approximately 7 inches when in the horizontal position, this table maximizes your machine’s vertical "Z-axis" envelope.

Seller notes: “Used - In Excellent condition!!!”
Setting position: Tilting
Operation: Electric
* Tilting Position: 500 lbs

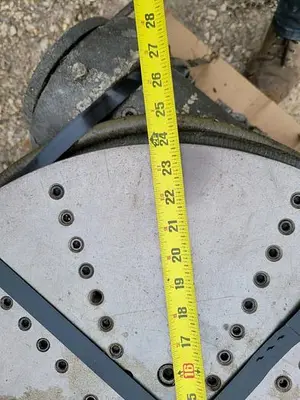

* Face Plate Diameter: 24" precision-ground surface
* Parallelism: 0.0003"
* Horizontal Position: 1,200 lbs
* Flatness: 0.003"
* Axial Runout: 0.0003"
