USED 1961 IMA A60-S

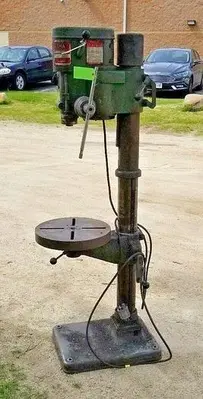

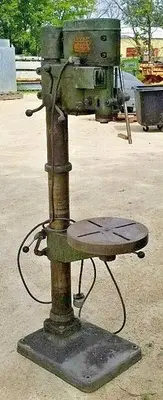

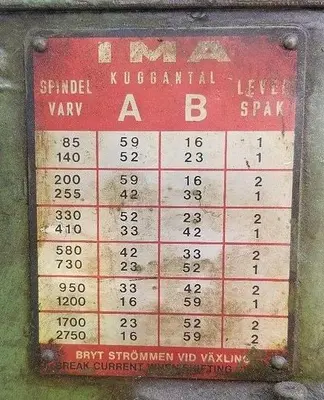

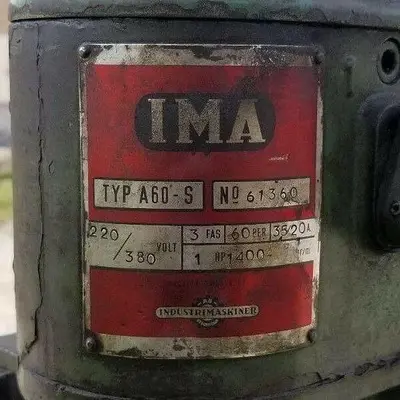

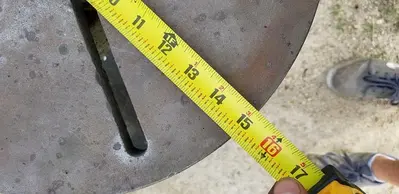

IMA A60-S 18" Geared Head Pedestal Drill PressModel: A60-S | Production Year: 1961 | Serial No: 61360Professional OverviewThe IMA A60-S is a Swedish-built, industrial-grade geared head drill press known for its exceptional rigidity and high-torque performance. Unlike common belt-driven models, this geared head design ensures positive power transmission, making it ideal for heavy drilling, reaming, and large-diameter hole making. Sourced from the legendary Machinery Scandinavia (Rosenfors, Sweden), this "heavy iron" pedestal press is a staple for toolrooms that require precise, repeatable results and long-term durability.Technical SpecificationsSwing: 18" (Drills to center of an 18" circle)Speed Range: 12 Selectable Geared Speeds: 85 to 2750 RPMSpindle Motor: 1 HP, 3-Phase, 220/380V @ 1400 RPMQuill Travel: 6" stroke for deep-hole applicationsTable: 15" Diameter Slotted Circular TableAdjustments: Mechanical rise/fall positioning for both the table and the headConstruction: Solid cast-iron base and 6' heavy-duty pedestalKey Performance FeaturesSwedish Precision Gearing: Features hardened and ground alloy steel gears designed for smooth operation and maximum longevity.Versatile Speed Control: The 12-speed gearbox allows for a low 85 RPM for tough steels and a high 2750 RPM for smaller non-ferrous drilling.Massive Vibration Dampening: The dense cast-iron frame eliminates the chatter common in lighter, modern drill presses, ensuring cleaner holes and longer tool life.Mechanical Rise/Fall: A robust rack-and-pinion system allows for easy height adjustment of the table to accommodate various workpiece sizes.

Seller notes: “in good working condition when removed from service”
Bundle listing: No
