USED 1959 BALDOR 1215W

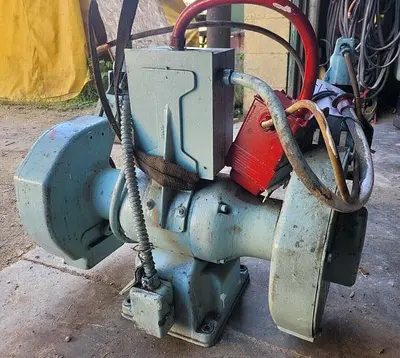

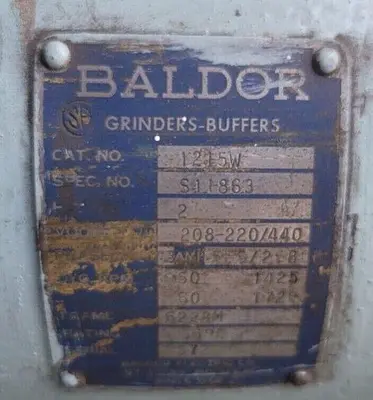

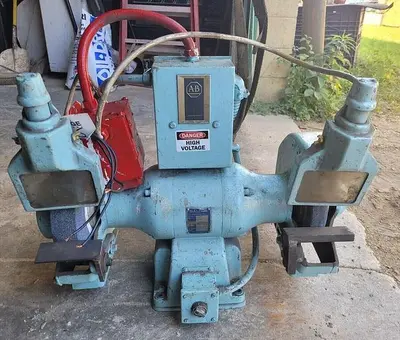

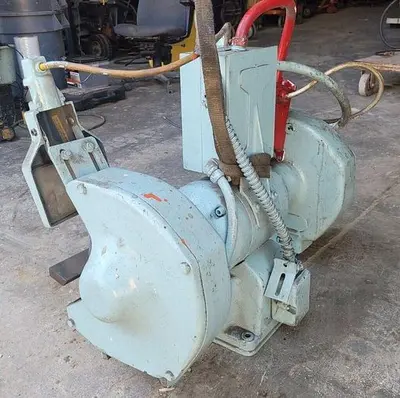

Baldor 1215W 12" Heavy-Duty Industrial GrinderSerial Number: 572 | Series: Late 1950s Production | Configuration: Wide-Design Pedestal ReadyOverviewThe Baldor 1215W is the ultimate industrial grinder for heavy-duty material removal. Unlike standard 8" or 10" models, the 1215W features a "Wide Design" motor housing. This provides critical extra clearance for grinding long bars, odd-shaped castings, or bulky weldments that would otherwise strike the motor body.This specific unit, Serial #572, represents the peak of Baldor's mid-century manufacturing. It features a solid cast-iron frame that absorbs vibration for a smoother finish and a 2 HP 3-phase motor designed to maintain high torque under the heaviest of grinding loads.Technical SpecificationsManufacturer: Baldor Electric Co. (Fort Smith, AR)Model: 1215W Wide DesignWheel Capacity: 12" Diameter x 2" Face WidthArbor Hole: 1-1/4"Power: 2 HP Industrial Induction MotorElectrical: 208-230/460V, 3-PhaseSpeed: 1,800 RPM (60Hz) / 1,500 RPM (50Hz)Guards: Exhaust-Type Cast Iron Guards (Accepts 5" vent pipe for dust collection)Shipping Weight: Approx. 253 lbs (Bench model only)Professional FeaturesWide-Design Clearance: The extended spindle design provides significant space between the wheels and the motor housing, essential for complex fabrication work.Integrated Safety: Equipped with adjustable cast-iron tool rests, spark breakers, and heavy-duty wheel guards.Overload Protection: Includes the original manual starter with integrated thermal overload protection to prevent motor damage.Maintenance-Friendly: Built with oversized industrial ball bearings designed for decades of service and easy replacement if ever required.

Machine type: Pedestal Grinder
Spindle: Horizontal
Power source: Electric
Custom bundle: No
Modified item: No
Function: Grinding
Voltage: 208-230V
Swing over table: 12 in
Grinding wheel speed: 1725 RPM
