USED HOMAG ABD050

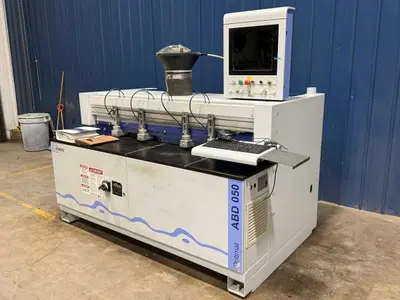

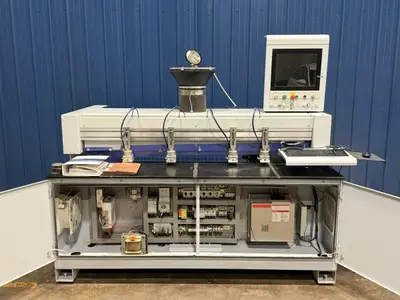

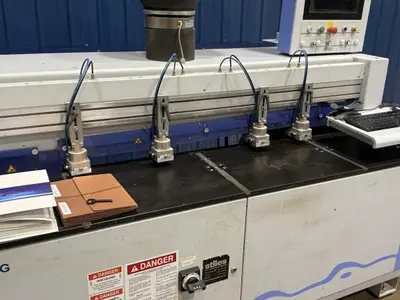

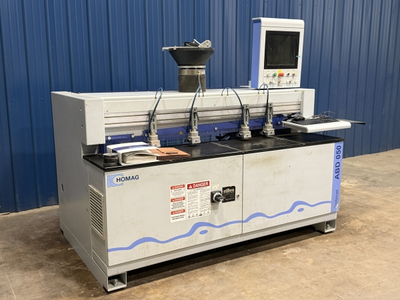

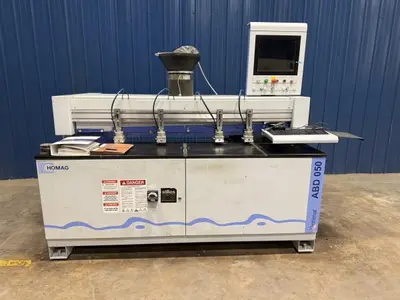

2017 Homag ABD050 Bore, Glue, and Dowel Machine
Supported Workpiece length (min/max): 20 / 1250 mm (0.79"/ 49.2")
Workpiece width (min/max): 50 / 800 mm (1.97" / 31.5")
Workpiece thickness (min/max): 10 / 60 mm (0.39" / 2.36")
Vertical Drilling Thickness (min/max): 10 / 30mm (0.39" / 1.25")

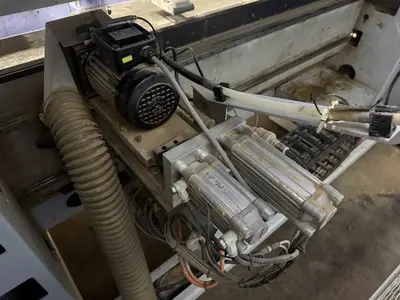

Horizontal spindle Qty.: 1
Rotational spindle speed: max. 7500 rpm
Drill shank diameter: 10 mm
Total length of drill bit: 70 mm

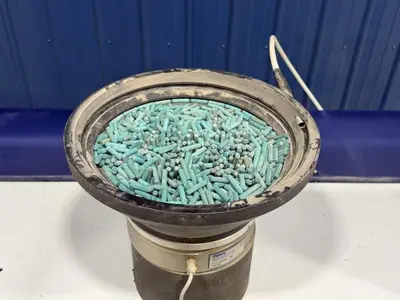

Dowel driver: 1
Dowel diameter: 8 mm
Dowel length: 30 mm / 35 mm
Tolerances required for wooden dowels:
Dowel length: ±1 mm
Dowel diameter: ±0.2 mm
Dowel projection: Fixed according to dowel length
Dowel adhesive: Low Viscous Glue (approx. 350 mPas)

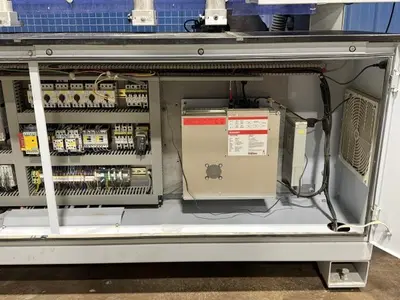

CNC control: PC-based with WoodWOP programming
Serial # 0-250-80-3903
