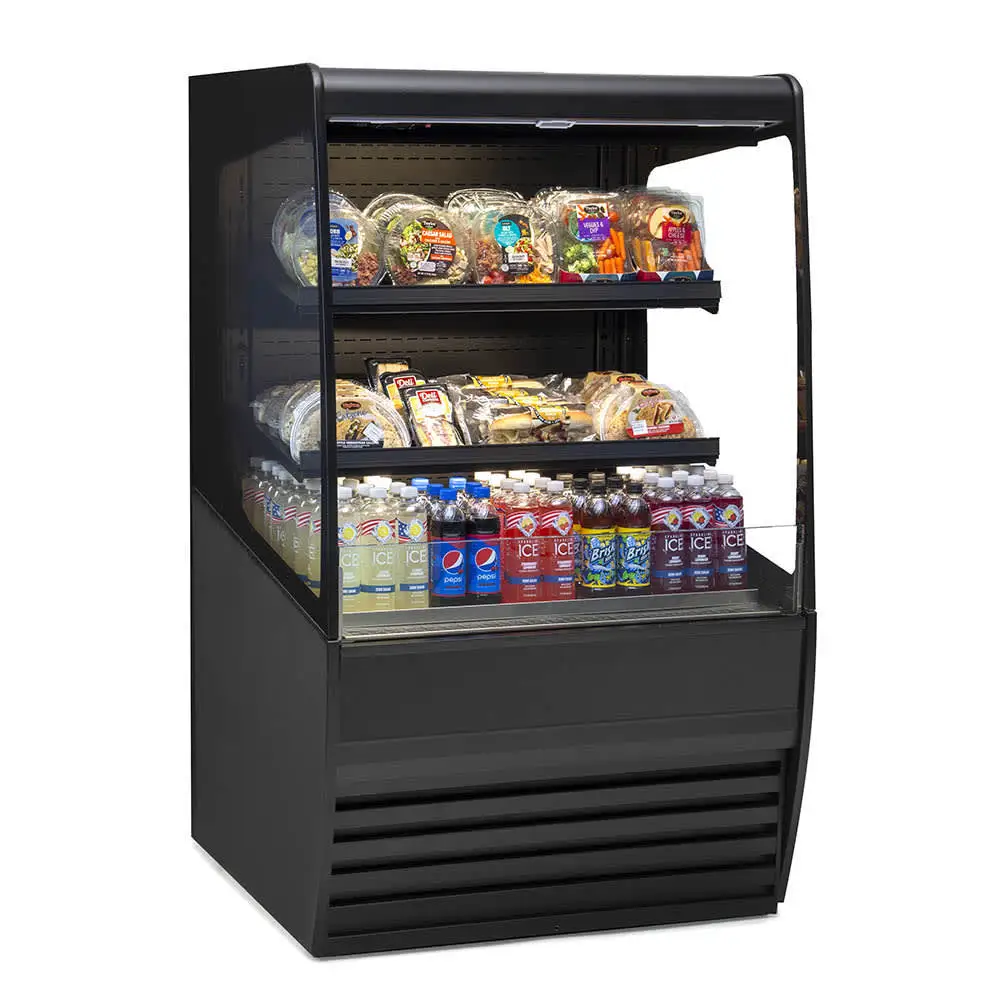

Federal VRSS3678C-QS 36" Vision Series Vertical Open Air Cooler W/ (5) Levels, 120v
Overview
Description
The Federal VRSS3678C-QS Vision series open-air merchandiser is a vertical self-service unit designed for displaying chilled products in accessible retail environments. With a 19.47-cubic-foot interior, it includes five adjustable black metal shelves that hold packaged items in view. Each shelf is outfitted with black price tag molding and can be positioned flat or tilted at a 10-degree angle. The open front, black interior, and curved tempered glass ends present a full view of contents, while a stainless steel display deck supports heavy loads at the base of the cabinet. Illumination is provided by a 3500K LED top light and shelf lights that increase visibility throughout the display. A night curtain can be pulled down during non-operational hours to reduce cold air loss and energy use.
The Federal VRSS3678C-QS merchandiser includes a self-contained refrigeration system that operates with R290 hydrocarbon refrigerant. It maintains set temperatures between 38 and 40 degrees Fahrenheit using electronic controls, and a digital thermometer displays internal conditions for monitoring. A self-cleaning condenser removes accumulated dust to preserve airflow and help prevent system strain. Additional refrigeration components include a clear coil on demand defrost system and a coated evaporator coil that resists corrosion. The cabinet frame is constructed with a welded black powder-coated steel base and moisture-resistant end panels for durability. Leg levelers adjust to stabilize the unit on uneven flooring, and the plug-in design enables straightforward installation.
Vision Series Refrigerated Self-Serve High Profile Merchandiser, 36" x 33" x 78", curved ends, (4) tiers adjustable black metal shelves with price tag molding, stainless steel display deck, black interior back panel, welded powder coated steel base, R290 refrigerant, 3500K LED top & shelf lights, self-cleaning condenser, night curtain, adjustable leg levelers, electronic temperature controls, thermometer, 120v/60/1-ph, 16 amps, cord & NEMA 5-20P plug, UL, cUL, UL Sanitation
*Image may not depict product color, inclusions or accessories.
Important Prop 65 information for California residents.
Specifications
Manufacturer
Federal
Color
Black
Compressor Type
Self Contained
Depth (in)
33
Design
Vertical
Height (in)
78
Hertz
60
NEMA
5-20P
Number of Levels
5
Phase
1
Product
Open Air Merchandisers
Product Type
Commercial Refrigeration
Rating
Best
Refrigerant
R290 (Hydrocarbon)
Series
Vision Series
Special Features
Adjustable Shelf Angle
Special Features
Black Interior
Special Features
LED Lighting
Special Features
Night Curtain
Voltage
120
Warranty
1-year Parts & Labor; 5-year Compressor Parts
Width (in)
36
Weight
740.00
Specifications
Manufacturer: Federal
Color: Black
Compressor Type: Self Contained
Depth (in): 33
Design: Vertical
Height (in): 78
Hertz: 60
NEMA: 5-20P
Number of Levels: 5
Phase: 1
Product: Open Air Merchandisers
Product Type: Commercial Refrigeration
Rating: Best
Refrigerant: R290 (Hydrocarbon)
Series: Vision Series
Special Features: Adjustable Shelf Angle
Special Features: Black Interior
Special Features: LED Lighting
Special Features: Night Curtain
Voltage: 120
Warranty: 1-year Parts & Labor; 5-year Compressor Parts
Width (in): 36
Weight: 740.00
