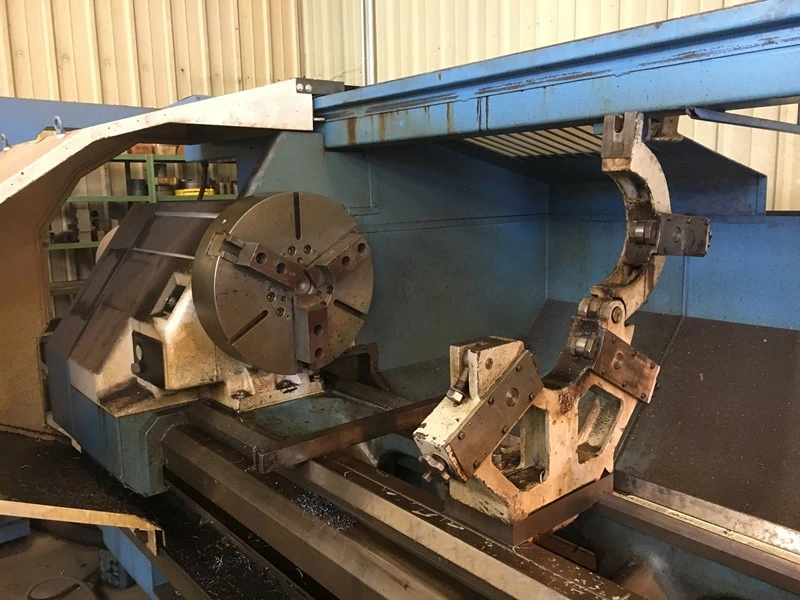

MAZAK POWERMASTER 3000U CNC TURNING CENTER, Mazatrol CAM T-2 CNC Control, 34" Swing, 120" CC, 1,200 rpm, 60 Hp.
| Swing | 34" | 863.6 mm |
| Machining Length | 120" | 3,048 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 4.5" | 114.3 mm |
| Max RPM | 1,200 RPM | 1,200 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Mazatrol CAM T-2) | CNC (Mazatrol CAM T-2) |
| Dimensions | 250" x 130" x 76"H | 250" x 130" x 76"H |
| Weight | 28000 | 28000 |
Mazatrol CAM T-2 CNC Control,
Mazatrol Conversational Programming,
EIA/ISO Programming- Includes PC Software for Uploading Programs,
8- Position Disc Turret,
4-Station ID Boring Turret,
Hardened Bed & Cross Slide Ways, Ballscrews,
Heavy Duty Tailstock w/ Hydraulic Quill, Live Center,
Steady Rest,
Chip Conveyor,
*Ways Reground & Ballscrews Replaced 2010
Coolant System,
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
Offered "As Inspected, Plant Site AL"
Max. Swing Over Bed 34"
Max. Swing Over Crosslide 22"
Max. Tailstock Position 120"
Chuck Size 24"
Cross Travel (X-Axis) 22"
Longitudinal Travel (Z-Axis) 121-3/8"
Cross Feed Range (.01" Increment) 263 IPM
Longitudinal Feed Range (.01" Increment) 315 IPM
Spindle Bore 4-5/8"
Spindle Nose A1-11
Spindle Speeds (12) 2-1200 RPM
Motor - Electrics 60 HP - 430/3/60
Dimensions- Floorspace 250" x 130" x 76"H,
Weight 28,000 Lbs
