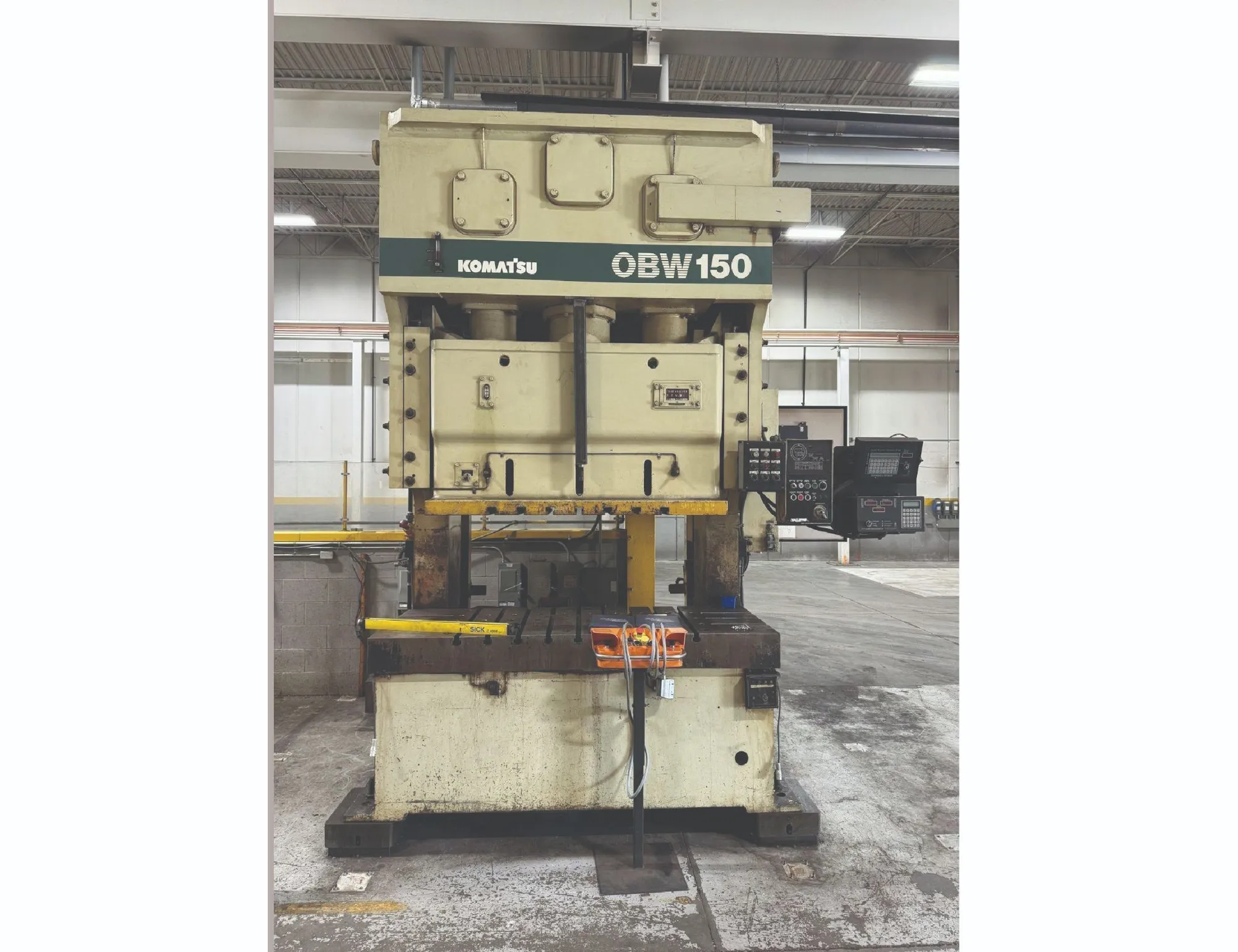

Used 150 Ton Komatsu Double Crank Gap Frame Press, Model OBW 150-3, 1996. Features: 150T capacity, 82"x30" bed, 7.87" stroke, dual speed (35-67 SPM), air clutch, hydraulic overload protection, light curtains, T-slotted bolster, and safety block.
| Ton | 150 T | |
| Bed L-R | 82 in | |
| Bed F-B | 30 in | |
| Stroke | 7.87 in | |
| Adjustment | 3.94 in | |
| Shut Height | 18.11 in | |
| Speed (max) | 67 strokes/min. | 67 strokes/min. |
| Speed (min) | 35 strokes/min. | 35 strokes/min. |
| OBI Single Double | double | double |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 89" LR x 82.3" FB x 139.8" Overall height | 89" LR x 82.3" FB x 139.8" Overall height |
| Weight | 55,000# | 55,000# |
Capacity: 150 tons US
Model OBW 150-3
Stroke: 7.87”
Bolster S.D.A.U.: 18.11”
Bed Area: 82” x 30” (LR x FB)
Bolster Plate: 82.2” x 29.9” (LR x FB) x 6.69” Thick T-Slotted Plate
Ram Area: 63” x 22.8” (LR x FB)
Ram Adjustment: 3.94”
Speed: 35-67 Strokes per Minute
Distance Between Uprights: 63.75”
Air clutch and brake
air counter balances
Hydraulic overload protection
(3) Knock-Out Slots in the Ram
7" T-slotted bolster plate
inch/single/continuous
T-stand palm controls( with top stop,reset,emergency stop, slide control, )
light curtains
Vibro foot pads
T-Slotted Ram
Safety Block
Link model 1100 tonnage control
Overall Dimensions (approx.)
89" LR x 82.3" FB x 139.8" Overall height
55,000lbs weight
Floor Standing
