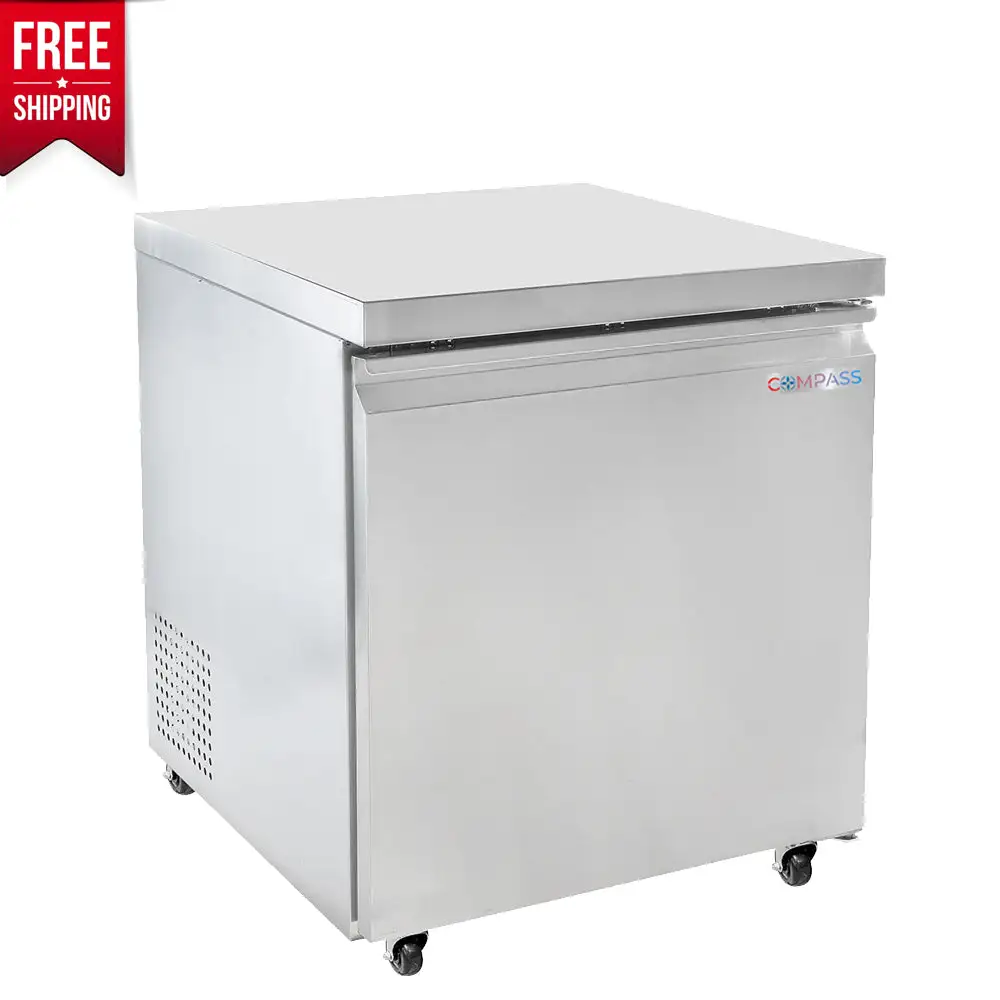

Compass PUC27R - 27" W Undercounter Refrigerator W/ (1) Section & (1) Door, 115v
Overview
Description
The Compass PUC27R Undercounter Refrigerator delivers reliable, space-saving refrigeration designed specifically for commercial kitchens, bars, and foodservice operations. This single-section, 27-inch wide unit fits seamlessly under standard countertops, providing convenient cold storage exactly where you need it most. Constructed with a durable stainless steel exterior and aluminum interior, the PUC27R combines professional-grade performance with straightforward operation. The self-contained refrigeration system maintains temperatures between 33°F and 41°F using eco-friendly R290 refrigerant, while the programmable digital display with self-diagnostic capability ensures optimal performance and simplified troubleshooting.
Refrigeration Performance
Temperature Range 33°F to 41°F - Maintains optimal food safety temperatures for fresh ingredients
1/6 HP Compressor - Reliable cooling power for consistent performance throughout the day
R290 Refrigerant - Eco-friendly hydrocarbon refrigerant with minimal environmental impact
Self-Contained Refrigeration - Complete refrigeration system requires no external components
Cool Air Intake - Optimized airflow design for efficient cooling
Programmable Digital Display - Precise temperature monitoring and control
Self-Diagnostic Capability - Built-in diagnostic system identifies issues for faster maintenance
Professional Construction
Stainless Steel Exterior - Commercial-grade stainless steel construction for durability and corrosion resistance
Aluminum Interior and Back - Easy-to-clean aluminum surfaces throughout the cabinet
Polyurethane Insulation - High-density foam insulation throughout cabinet for superior cold air retention
Self-Closing Door - Door closes automatically before 90 degrees to preserve cold air
Stay-Open Feature - Door remains open past 90 degrees when loading or unloading product
Easy-to-Access Condenser - Slide-out condenser design simplifies cleaning and maintenance
Storage & Organization
One PVC Coated Shelf - Heavy-duty wire shelf with protective PVC coating
27-Inch Width - Compact footprint fits under standard countertops
Single-Section Design - Full-width access to refrigerated storage
Zero Clearance Installation - No side or back clearance required for installation
Mobility & Installation
Factory-Installed Casters - Four swivel casters for easy positioning and mobility
Front Brake Casters - Two front casters with brakes lock unit securely during operation
115V Operation - Standard 115V/60Hz/1Ph electrical requirement
1.9 Amp Draw - Energy-efficient operation
NEMA 5-15P Plug - Standard plug type with 7.5-foot cord included
Ideal Applications
This versatile undercounter refrigerator is perfectly suited for:
Bars and Taverns - Behind-bar cold storage for garnishes, mixers, and ingredients
Restaurant Prep Stations - Convenient ingredient storage at point of use
Coffee Shops and Cafes - Cold storage for dairy products, beverages, and grab-and-go items
Food Trucks - Compact refrigeration for mobile foodservice operations
Institutional Kitchens - Satellite cold storage throughout large facilities
Hotel Breakfast Stations - Convenient cold storage for breakfast service areas
Catering Operations - Mobile cold storage for event preparation
Performance Specifications
Model: Compass PUC27R
Configuration: Single-section undercounter refrigerator
Width: 27 inches
Temperature Range: 33°F to 41°F
Compressor: 1/6 HP
Refrigerant: R290 (eco-friendly hydrocarbon)
Doors: One self-closing solid door
Shelves: One PVC coated wire shelf
Electrical: 115V/60Hz/1Ph, 1.9 Amps
Plug Type: NEMA 5-15P
Cord Length: 7.5 feet
Exterior: Stainless steel front, sides, and top
Interior: Aluminum
Casters: Four swivel casters (two with front brakes)
Insulation: High-density polyurethane foam
Why Choose the Compass PUC27R?
The Compass PUC27R Undercounter Refrigerator delivers professional-grade refrigeration in a compact, space-efficient design perfect for commercial kitchens and bars. The 27-inch width allows the unit to fit under standard countertops while providing valuable cold storage exactly where you need it most. The self-contained refrigeration system uses eco-friendly R290 refrigerant to maintain temperatures between 33°F and 41°F, ensuring food safety compliance and optimal ingredient freshness.
Built with commercial-grade stainless steel construction and an aluminum interior, the PUC27R withstands the demanding conditions of high-volume foodservice operations. The programmable digital display with self-diagnostic capability makes temperature monitoring and troubleshooting straightforward, while the easy-to-access condenser simplifies routine maintenance. High-density polyurethane foam insulation throughout the cabinet provides superior cold air retention and adds structural rigidity to the unit.
The innovative self-closing door design automatically closes before 90 degrees to preserve cold air and energy efficiency, yet stays open past 90 degrees when staff need easy access for loading or unloading product. Factory-installed casters with two front brakes provide mobility when needed and stability during operation. The zero-clearance installation requirement allows the unit to be positioned directly next to other equipment, maximizing your valuable floor space. The single PVC-coated wire shelf offers durable storage that's easy to clean and maintain.
Maximize your kitchen efficiency with the Compass PUC27R Undercounter Refrigeratora€”where compact design meets reliable commercial refrigeration performance.
