The Biro 1433 Meat Saw is a compact production saw that's perfect for today's scaled down meat room. Its 3 HP totally enclosed motor and 3600 feet per minute blade speed provide you with the power you need for demanding commercial operations. Biro's exclusive EZ-Flow meat carriage helps reduce operator fatigue and increase productivity. The 1433 incorporates the superior design and engineering you've come to expect from Biro, which means you'll get years of use, low maintenance, and lower overall cost of ownership.
Powerful Motor & Drive System
3 HP Totally Enclosed Motor - Powerful, sealed motor protects against contaminants and moisture
3600 Feet Per Minute Blade Speed - High-speed cutting for maximum productivity
Non-Slip Silent V-Belt Drive - Double V-belt and pulley drive system with adjustable tension
Multiple Motor Configurations - Available in various voltages and phases for flexible installation
Superior Construction & Design
Heavy Duty Stainless Steel Construction - Base, legs, head and door structure all stainless steel
Movable Head Design (14") - 14-inch movable head configuration for versatile cutting
All Stainless Steel Platter - Held in place with two push-pull hold down stainless steel rods
Sealed Motor Compartment - Motor compartment sealed off from meat contact areas, easily accessible through removable panel door
EZ-Flow Meat Carriage System
8 Bearing Stainless Steel Carriage - Exclusive EZ-Flow design reduces operator fatigue
Smooth Operation - Heavy-duty bearing system ensures effortless carriage travel
Increased Productivity - Ergonomic design allows for extended use without fatigue
Stainless Steel Construction - Durable, sanitary material for food processing
Advanced Safety & Control Systems
Watertight Magnetic Starter - Sealed electrical system with thermal overload protection
Under Voltage Protection - Additional electrical safety feature
End Cut Safety Pusher Plate - Standard safety accessory keeps hands away from blade
Upper and Lower Blade Guards - Comprehensive blade protection system
Professional Blade System
14" Cast Iron Blade Wheels - Chrome nickel plating, upper wheel assembly lifts out
Heavy Duty Tapered Roller Bearings - Used in upper wheel and lower bearing housings
Upper and Lower Blade Backup Guides - Removable assemblies with long-life carbide backup inserts
Ratchet Arm Blade Tension - Cam against tension spring gauge for proper blade tension
Precision Cutting Features
Stainless Steel Meat Gauge Plate - Adjustable from 1/16" (1.59 mm) to 6-1/2" (165 mm)
Locks in Position - Secure positioning for consistent cut thickness
Can Be Thrown Out of Gear - Easy to disengage when not needed
Entire Assembly Removable - Complete removal for thorough cleaning
Easy Cleaning & Maintenance
Removable Lower Wheel - Easy access for cleaning and maintenance
Stainless Steel Cleaning Unit - Long-life carbide guides, steel saw cleaners, removable as a unit
Extra Deep Poly Catch Pan - Rounded corners, pan sealed off from other parts of base
Accessible Through Base Hinged Door - Easy access to catch pan for cleaning
Ideal Applications
This versatile meat saw is perfectly suited for:
Butcher Shops - Professional meat cutting and portioning
Restaurants - In-house meat preparation and portion control
Delicatessens - Slicing meats and specialty products
Small to Medium Processing Plants - Compact production sawing
Institutional Kitchens - Schools, hospitals, and foodservice operations
Catering Operations - Large-scale food preparation
Scaled Down Meat Rooms - Perfect for today's compact meat processing areas
Performance Specifications

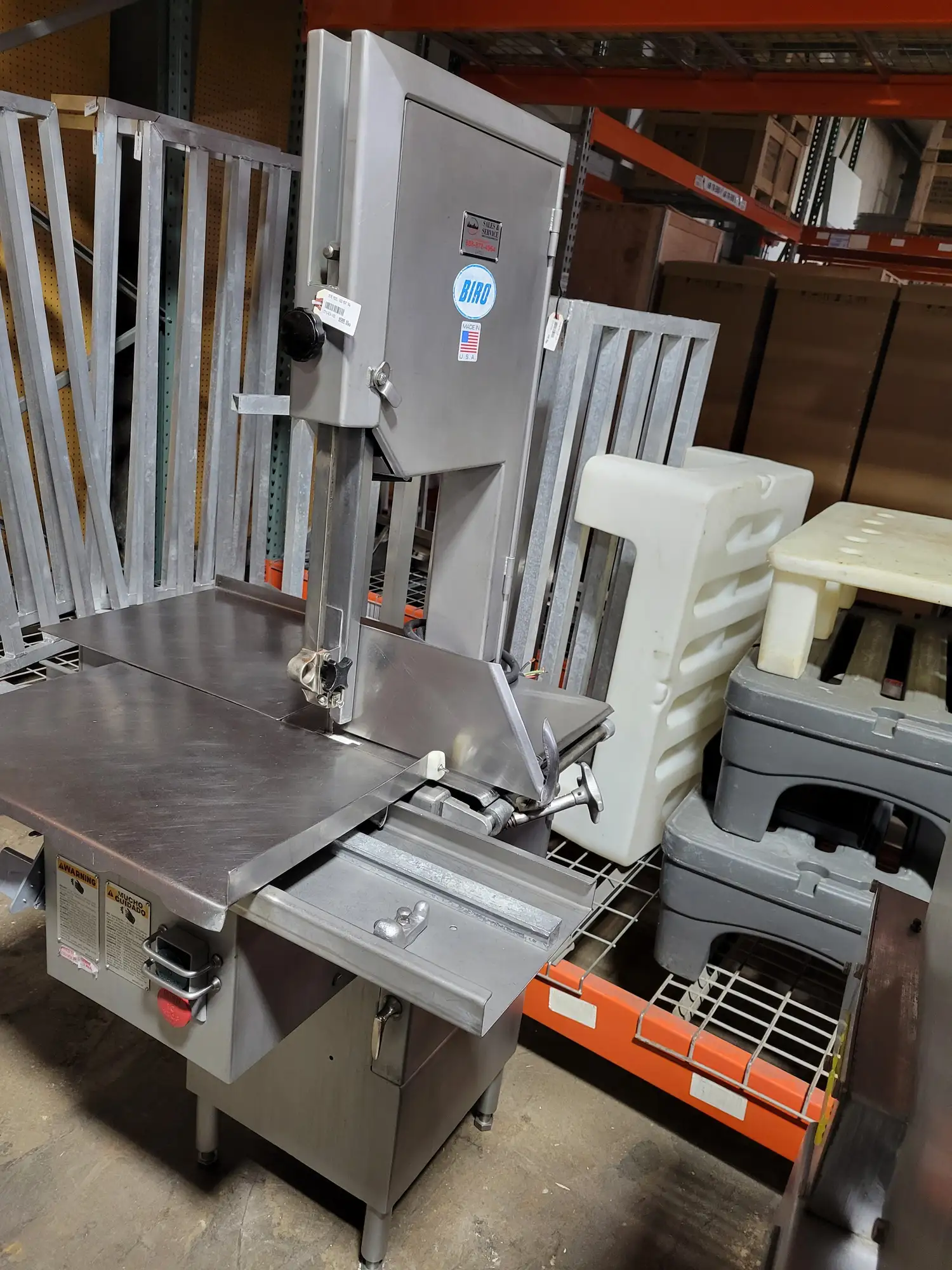

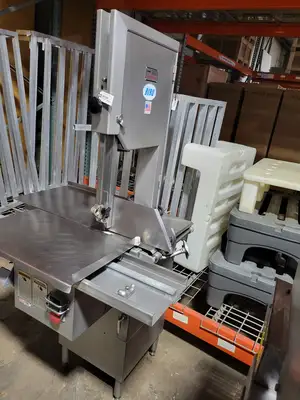

Model: Biro 1433 Power Cutter (Movable Head - 14")
Motor: 3 HP, Totally Enclosed
Blade Speed: 3600 feet (1097 m) per minute
Construction: Heavy duty stainless steel base, legs, head and door structure
Blade Wheels: 14" (35.5 cm) cast iron, chrome nickel plating
Bearings: Heavy duty tapered roller bearings
Meat Carriage: Stainless steel 8 bearing EZ-Flow
Gauge Plate Adjustment: 1/16" (1.59 mm) to 6-1/2" (165 mm)
Drive System: Non-slip silent V-belt, tension adjustable
Switch: Watertight magnetic with thermal overload and under voltage protection
Weight: 374 lbs. (169.6 kg) uncrated
Certifications: U.S.D.A., U.L., N.S.F.
Standard Equipment Included
Two Saw Blades - Standard hard tooth .022 inch (.5 mm) thick, three teeth per inch, 5/8 inch (16 mm) wide, 108 inches (2743 mm) long
Operation and Safety Manual - Complete instructions for safe operation
Safety Wall Poster - Visual safety reminder for operators
End Cut Safety Pusher Plate - Standard safety accessory
Stainless Steel Leg Bolt Levelers - For proper equipment leveling
Extra Deep Poly Catch Pan - Rounded corners for easy cleaning
Motor Configurations
Standard: 3 HP, 208/220/, 60 Hz, 3 Phase
Why Choose the Biro 1433?
The Biro 1433 Meat Saw combines compact design with powerful performance, making it perfect for today's scaled down meat room operations. The 3 HP totally enclosed motor and 3600 feet per minute blade speed provide the power needed for demanding commercial applications, while the exclusive EZ-Flow meat carriage with 8 bearings helps reduce operator fatigue and increase productivity.
The heavy duty stainless steel construction ensures years of reliable service, while the watertight magnetic starter with thermal overload protection provides safe, dependable operation. The removable lower wheel, double V-belt and pulley drive system, and long-life carbide blade guides all contribute to low maintenance and lower overall cost of ownership.
With superior design and engineering backed by Biro's reputation since 1921, the 1433 delivers the quality and value you need with service available from over 245 locations worldwide.
Experience the reliability and precision that has made Biro the trusted choice of meat cutting professionals worldwide for over 100 years.
