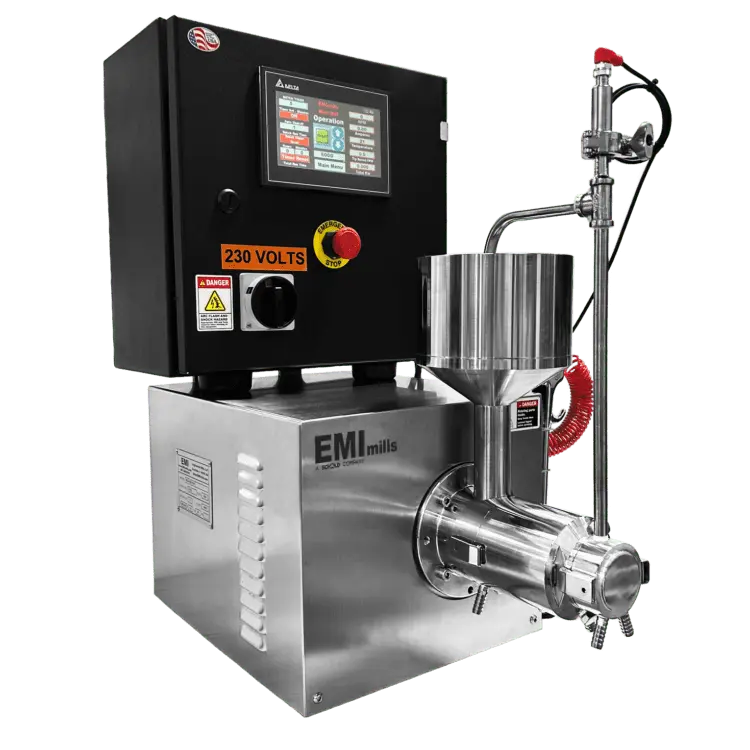

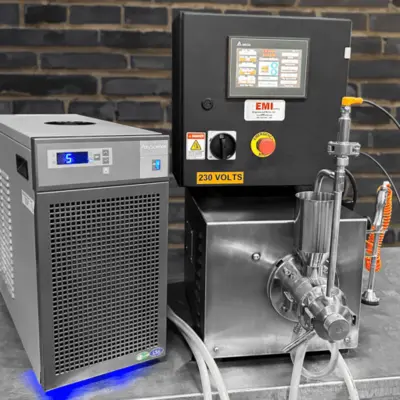

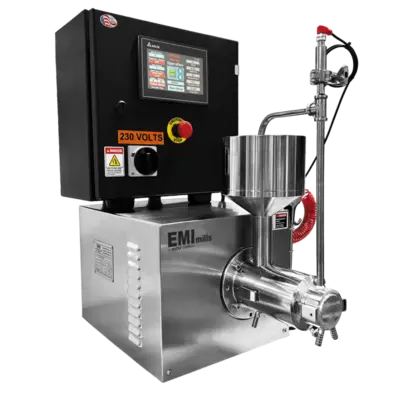

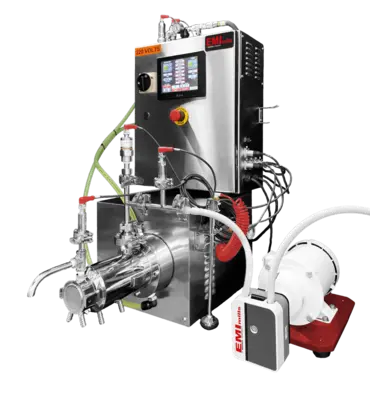

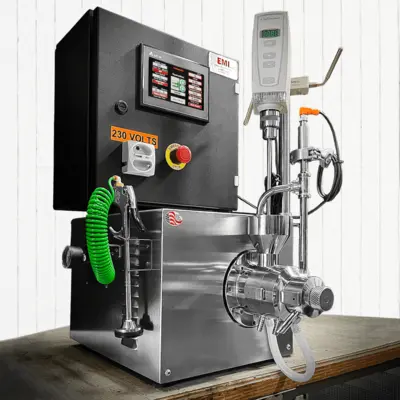

Self-contained lab bead mill for small-scale milling, fine grinding, and dispersing liquid and paste applications. Ideal for product research, quality control of raw materials, technical service applications, and scaling to production-sized batches. This lab bead mill uses grinding media to develop the high shear and impact forces required to reduce agglomerates or finite particles. For larger batches, check out the Horizontal Media Mill or post-mounted VIM Immersion Mill.
Sample Size Range: 25 mL – 10 L
Capable of producing sub-micron particles
Includes built-in pump and pre-disperser as required
Single pass or re-circulation milling
General purpose, explosion proof and intrinsically safe electrical controls
PLC diagnostic controls available for operating, monitoring process variables, and data collection
Quick release latches allow easy removal of components
Customizable to meet application/processing requirements
Chamber Volume: 2000 mL
Sample Size: 2200 – 7000 mL
Power: 7.5HP
Agitator Speed: 0 – 3500 RPM
