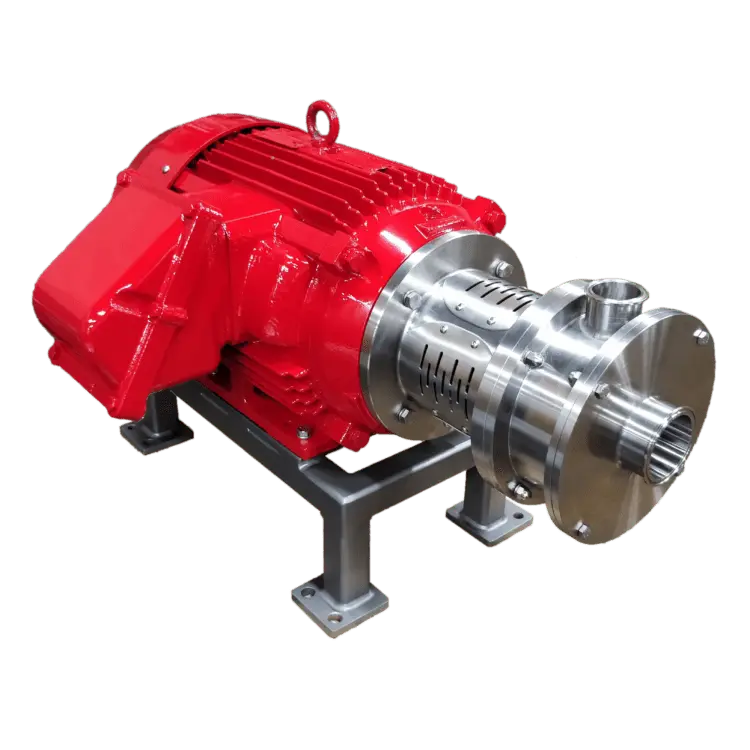

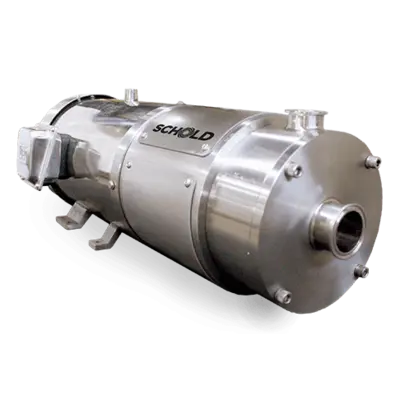

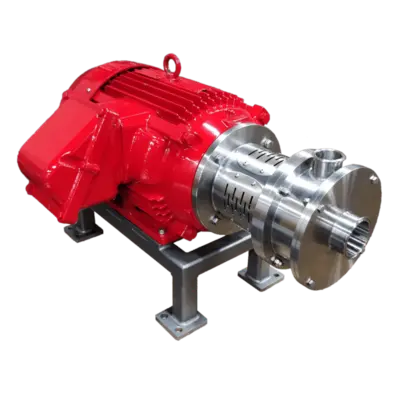

The ILD Inline Disperser utilizes rotor-stator technology to process inline/batch applications. It quickly produces homogenous mixtures, suspensions, and emulsions for a wide range of products including chemicals, foods, pharmaceuticals, cosmetics, and many others.
Compact size allows for simple integration with current process
Disperses and mixes simultaneously as product is sheared between teeth of rotor
Multiple inline configurations – single stage, dual stage, and more
Various rotor and stator sizes available to meet production needs

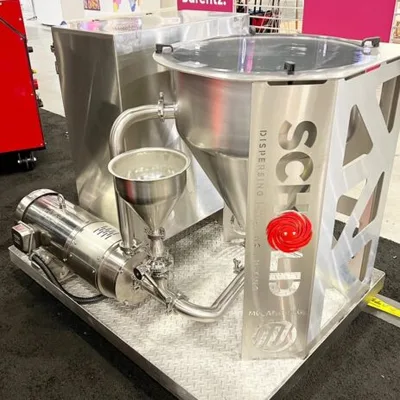

For a similar, but post-mounted option, find the VRS Rotor Stator. Need to process powders and liquids together? The ILD Inline Disperser Cart System is a common answer. For maximum shearing or particle reduction, browse our Media/Bead Mills.
Capacity: Up to 100 GPM (378 LPM)
Power: 5HP (3.7 kW)
Rotor Diameter: 3 inches (76 mm)
Max Tip Speed: 4241 ft/min (21.5 m/s)
