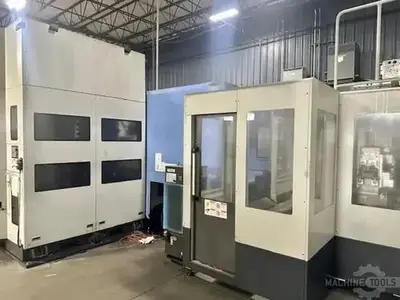

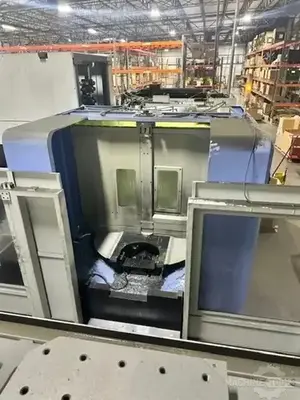

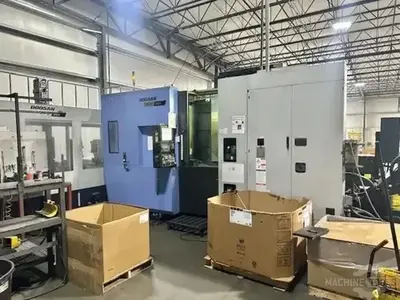

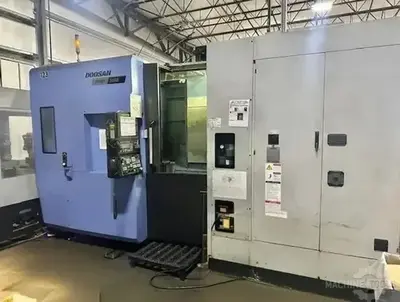

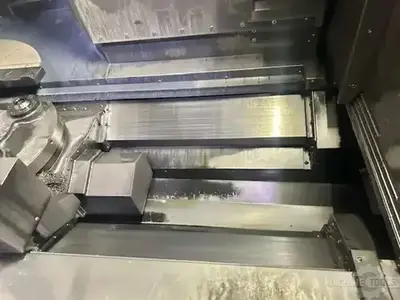

USED 2019 DOOSAN NHP-5000

CNC Horizontal Machining Center

Request a Quote
Add to Cart
Pallet Size (Millimeters): 500
Pallet Size: 19.7" x 19.7"
X-Axis Travel: 28"
Y-Axis Travel: 28.7"
Z-Axis Travel: 34.6"
Tool Magazine Capacity: 275 ATC
Spindle Speed: 15,000 RPM
Spindle Taper: CAT 40
Control: Fanuc 31ib
Pallet Indexing: Full 4th Axis
Chip Removal: Chip Conveyor
Spindle Motor: 49.6 HP
Coolant: Through Spindle Coolant
Power Requirement: 220V/3ph
Rapid Traverse Rate(X/Y/Z): 2364 IPM
Cutting Feed Rate: 1181 in/sec
Pallet Weight Capacity: 1102 Lbs
Pallet Surface to Spindle Center: 3.1 - 29.1
Pallet Center To Spindle Gage Line: 3.9 - 38.6
Workpiece Dimensions: 31.5" x 39.4"

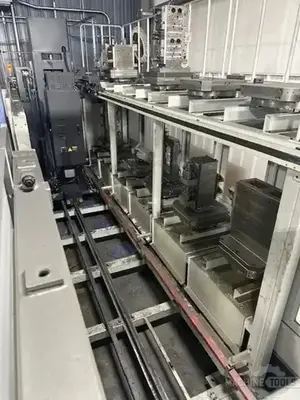

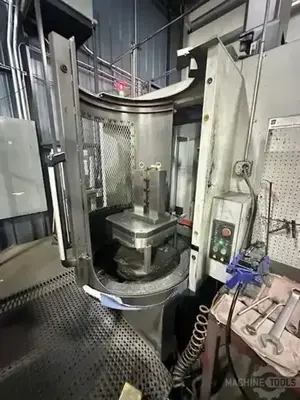

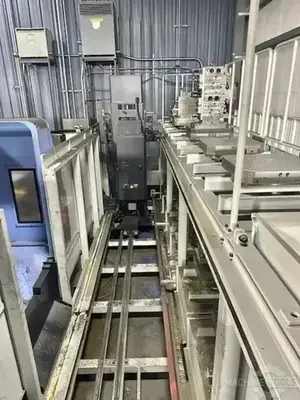

(1) Loading Station w/ LPS Controller: 12 Linear Pallet System (6 Upper./6 Lower)
48 Pairs Work Coordinates: 80MG Part Program Storage
Advanced Tool & Pallet Retract Function: Air Limit Pallet Clamping System
Auto Tool Damage Detection BK 9: Auto Tool Measurement Touch Probe RMI - Q Only Renishaw
Embedded Ethernet Function: Fastems Interface
Flood and Flushing Coolant: LNS Chip Blaster 1000 PSI
Matrix Auto Tool Changer: Nanno Smoothing
PCMCI Card Slot: Remote DPM + Cosy Remote H/W/(LPS)
Tool Offsets 400 Pairs: Video Monitouring Solution (Machining Area & LPS Set Up)
Custom Macro B: Renishaw Part Probe
USB Port: Tool Retract & Recover
Hand Held Remote MPG: Manual Guide I Conversational Programming
