20" x 60"
| size | 10" Chuck | 10" Chuck |
| Swing | 20" | 508 mm |
| Machining Length | 60" | 1,524 mm |
| # Axis | 2 | 2 |
| Chuck Size | 10" | 254 mm |
| Power | 8 hp | 6 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 10" | 254 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

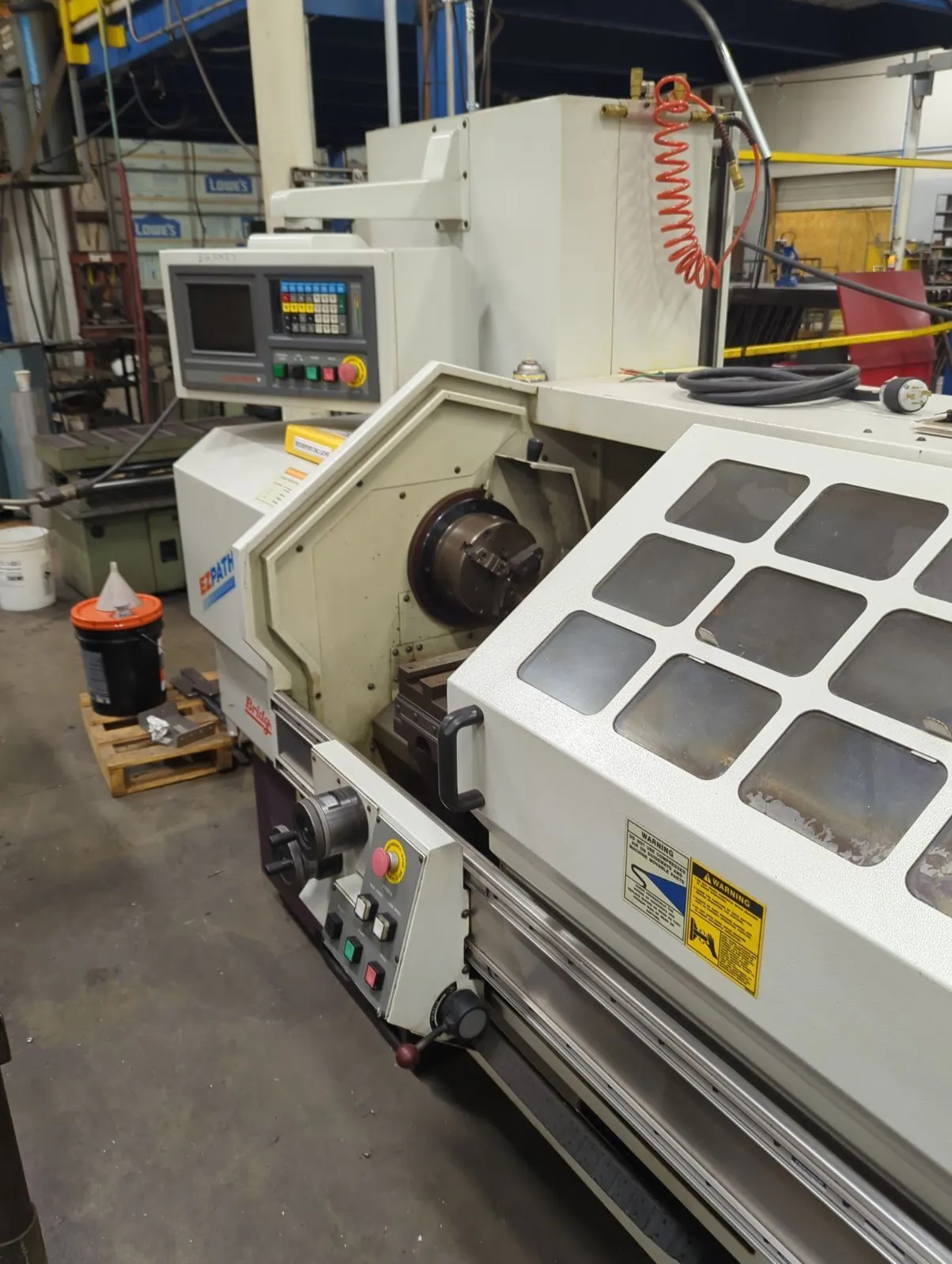

Bridgeport Romi EZ-Path SD CNC Flat Bed Lathe
Spindle Bore Diameter: 2.56"
Swing Over Bed, Maximum: 20"
Distance Between Centers, Maximum: 60"
Swing Over Cross Slide, Maximum: 10.0"
Tailstock Quill Travel: 6.3"
Tailstock Quill Diameter: 2"
Tailstock Quill Taper: #4 MT
Spindle Speeds, Range: 4 to 3,500 RPM
Rapid Traverse Rate, X-Axis: 250 IPM
Rapid Traverse Rate, Z-Axis: 250 IPM
Spindle Motor, Horsepower: 8 HP
Width Of Bed .......................... 13.5"
Height Of Bed ......................... 12.5"
Tailstock Quill Travel................. 5.11"
Tailstock Quill Diameter............... 3.15"
Tailstock Taper........................ #4mt
Floor Space Required................... 60" X 107"
Approximate Weight..................... 6,750 Lbs.
8" 3-Jaw Chuck
