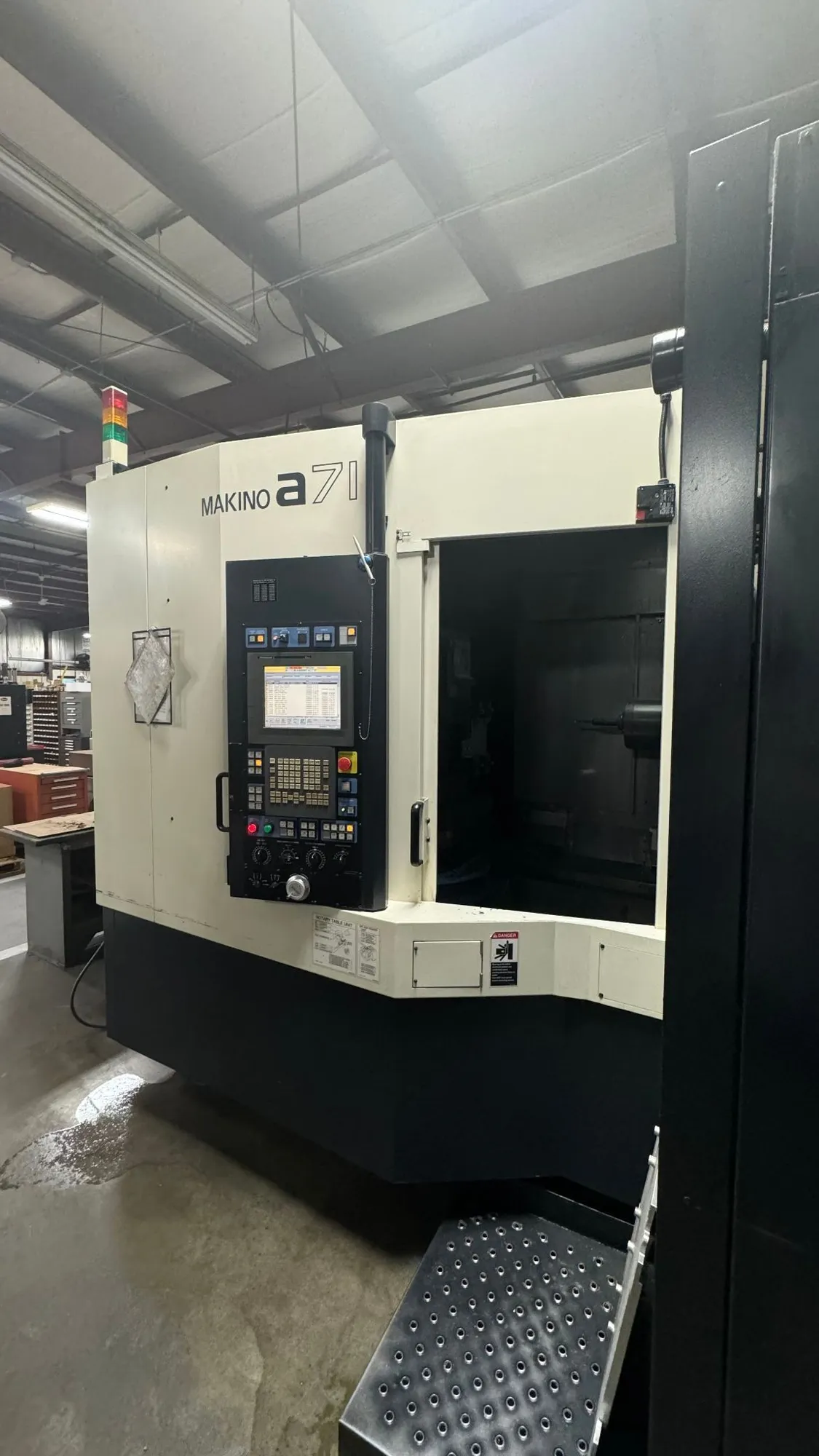

MAKINO a71 CNC Horizontal Machining Center (2010). Specifications: X/Y/Z: 28.7" / 28.7" / 31.5", Power: 40 hp, 10,000 RPM, 60 ATC, CAT 50 Taper, Pallet: 19.7" x 19.7", 4 Axes. Includes 8-nozzle coolant, overhead shower system, 300 psi TSC, NC rotary table, chip conveyor.
| X | 28.7" | 728.98 mm |
| Y | 28.7" | 728.98 mm |
| Z | 31.5" | 800.1 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT50 | CAT50 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
| Control | CNC (Pro 5 Control) | CNC (Pro 5 Control) |
Eight (8) Nozzle Coolant
Overhead Shower Coolant System
300 psi TSC and Air
Helical Interpolation
NC Rotary Table
Probe
Chip Conveyor
