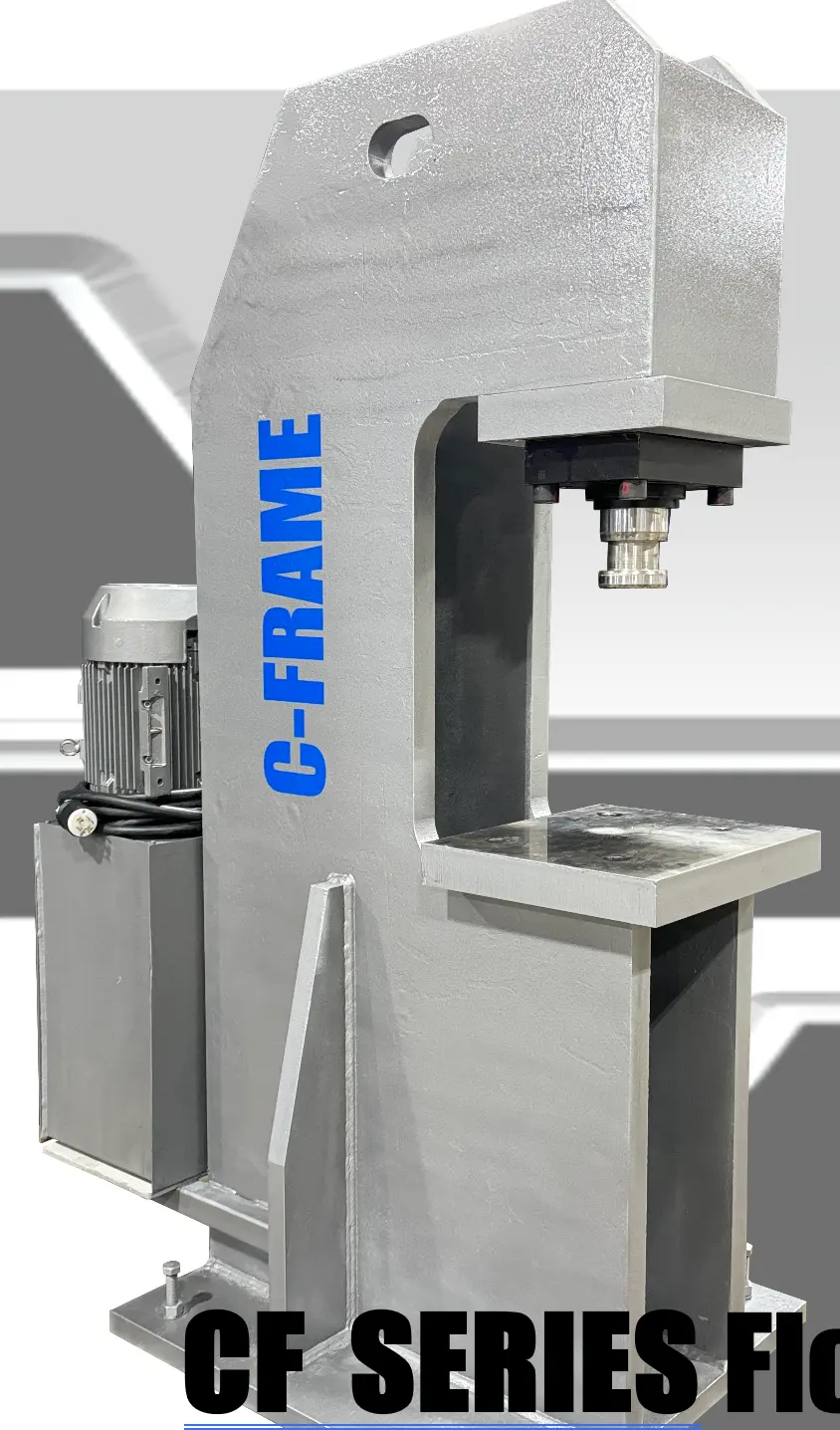

NEW 2026 MAGNUM CF35M
Overview
Introducing the NEW 35 Ton Magnum C Frame Hydraulic Press CF35M, 2024 model. Features a robust steel frame, 35T capacity, adjustable stroke, and simplified controls. Rapid Advance Speed of 55 ipm, extendable to 120 ipm with optional regen circuit.
Specs
Capacity: 7.1 to 35.0 Ton (adjustable)
Bed Area: 19" lr x 16" fb
Stroke: 1" to 10" (adjustable)
Daylight: 16.3"
Shut Height: 6.3"
Throat: 8"
Speeds:
Rapid Advance: 55 ipm (120 ipm with optional #3 Regen)
Pressing: 55 ipm
Retract: 67 ipm
Reservoir: 20 gallon
Motor: 10 HP TEFC
Input Voltage: 230/460V / 3ph / 60Hz
Estimated Lead Time: 2 - 3 weeks based on purchase of current inventory unit
Equipped With
Robust Oversized Floor Mount Steel Frame
Removable Bolster
Pressure Indicator
Visual Level Gauge
Single Point Power Connection
Simplified Controls with manual lever valve actuation Manual Motor Starter
A simple, removable and easily serviceable press mounted press hydraulic system powers the press
Press Mounted Lever Control Valve w/ Adjustable Speed Control Main RAM metered with lever valve
3000 psi rated NFPA tie rod hydraulic cylinder with heavy rectangular front flange and oversized 2:1 rod with 1-7/8-12 female rod thread.
Flat Face O-Ring Hydraulic Connections provide the most leak resistant hydraulic system
12 month parts warranty against defects in workmanship
Some Available Option Items may affect lead time:
Item Description Price Ea.
1 Full perimeter guarding.
Front mounted single manual door with wire mesh.
Fixed guarding on both sides using wire mesh. $1,400.00
2 Regenerative hydraulic circuit increase rapid advance speed to 120ipm $1,600.00
3 Standard Bolster comes plain. Magnum can provide custom machining contact for pricing
