USED 2013 IFP Europe Srl KP50 H/MA

IFP Europe KP 50 HMA Basic Vacuum Parts Washer
Mfd. 2013
S/N: 201305-00974
Specifications:
Number of Baskets per Wash Cycle 1
Basket Size 11.9″ x 7.9″ x 17.7″
Machine Dimensions 70″ x 103″ x 70″
Chiller Size 5 ton
Solvent Capacity 106 Gallon
Wash Cycles Per Hour 4 to 8
Chamber “Max. Load Weight” 110 lbs
Machine Weight 4,000 lbs
Equipped With:
Rotos & Vane Pumps,
Liquid Ring Tank,
Rust Inhibitor Tank Filter,
Waste Oil Separator,
Siemens Touch Screen Control,

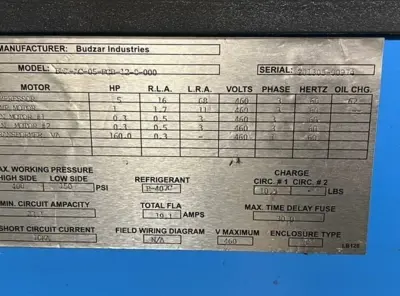

Budzar BWA-AC-05-FCB-12-0-000 5-HP Chiller,
Safety Guarding,
Light Curtains,
Automatic Door,
(3) Wash Settings,
Rust/Vap/Mist/Vac/Oscillation Settings,
100-Lb. Batch Weight

Repairs necessary:

Pumps

C301.00020 DVP LC106 Vane Pump — $5,500.00

C301.00078 Liquid Ring Pump — $3,561.55

C301.00081 RBS 45 Rotary Lobe Pump — $13,500.00

Pump Subtotal: $22,561.55

Accessories / Pipes for Conversion

A508.00031 — $287.50

A508.00012 — $287.50

A508.00013 — $345.00

Accessories Subtotal: $920.00

Grand Total

$23,481.55
