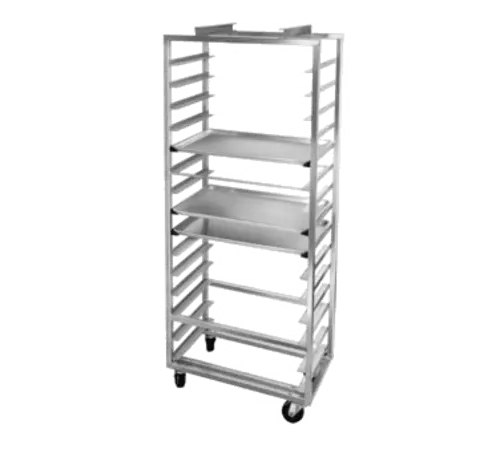

Channel 410A-OR 28 1/2"W 30 Sheet Pan Rack W/ 2" Bottom Load Slides

The Channel 410A-OR sheet pan rack has 2 inches between each slide. Pans load from the side so the user can have a better grip on the pans when loading or unloading. This unit can hold up to 30 sheet pans measuring 18 inches by 26 inches. The entire unit is constructed from extruded aluminum for heavy duty use and corrosion resistance. The rack can withstand temperatures from -45 to 475 degrees Fahrenheit, and it can withstand 575 degrees Fahrenheit intermittently. The Channel 410A-OR sheet pan rack is easy to move with the 4-inch swivel casters.
Oven Rack, Single Section, Standard Heavy-Duty Series, 28.5"W x 18"D x 69.75"H, Aluminum Construction, Side Load, 2" Angle Spacing, (30) 18" x 26" pans, 4" Swivel High Temp Phenolic Plate Casters w/ Zerk grease fitting model # CPS54H, Made in USA, NSF, 40lbs. (ITEM WEIGHT ONLY), CAD drawing will be supplied for approval, base oven rack model excludes lifting devices and pan stops, weight does not include 50 lbs. for pallet weight,

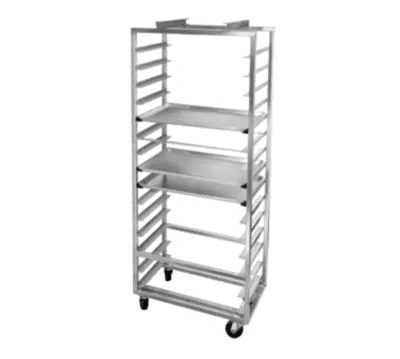

*Image may not depict product color, inclusions or accessories.
Specifications

Manufacturer: Channel
Accommodates: Full Size Pans
Delivery Configuration: Assembled
Height (in): 69.75
Load Type: Side Load
Material: Aluminum
Number of Levels: 30
Pan Type: Sheet/Bun
Product: Pan Racks
Product Type: Storage & Transport
Slide Spacing (in): 2
Slide Type: Bottom Load
Special Features: Roll-In Height
Type: Full Height
Warranty: Lifetime Against Rust & Corrosion
Width (in): 28.5
Weight: 90.00
