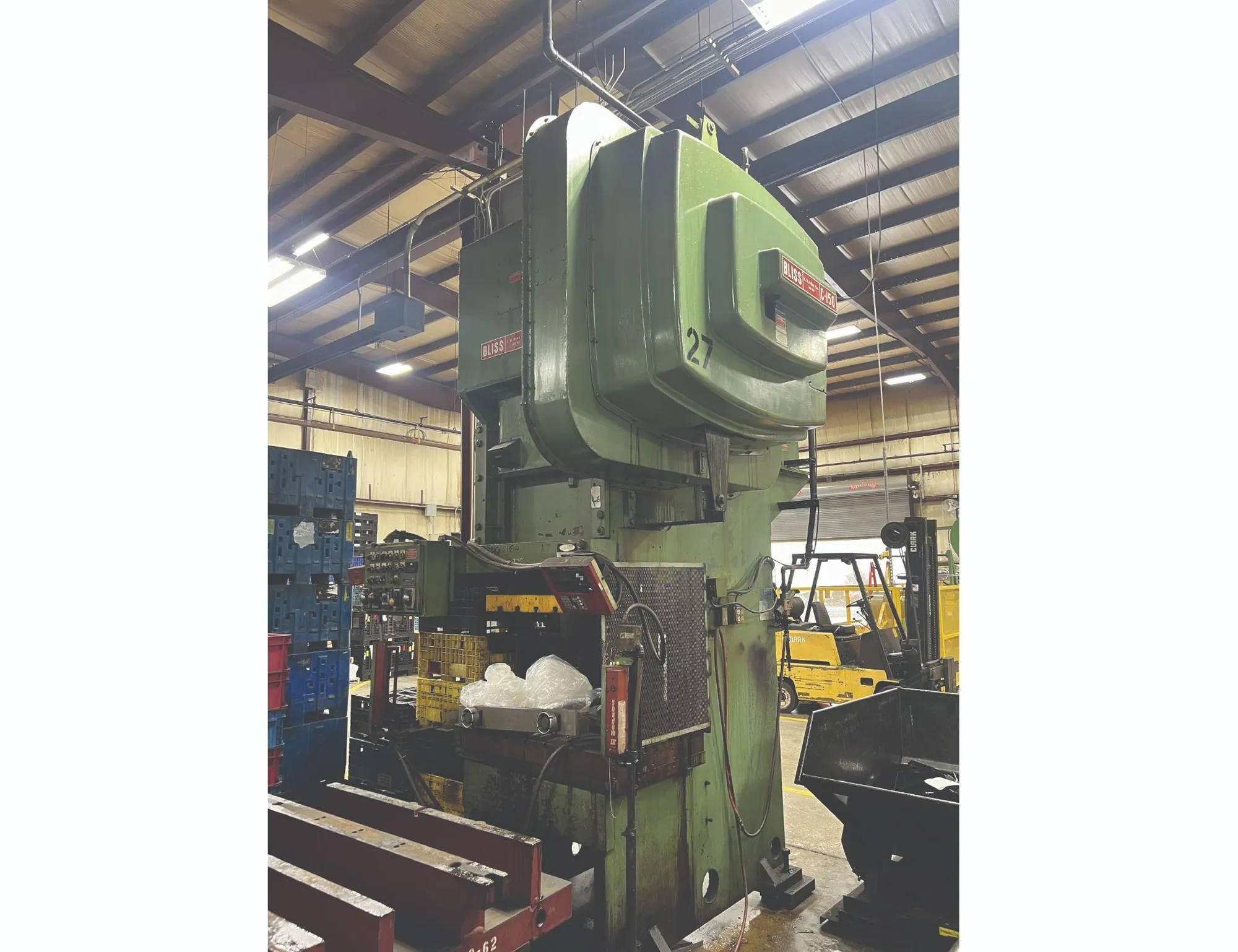

1985 BLISS C-150, 150 Ton OBI/Gap Frame Press. Features a 50"x30" bed, 8" stroke, and adjustable speed of 30-60 SPM. Includes air clutch for reliable performance. Ideal for various industrial applications.
| Ton | 150 T | |
| Bed L-R | 50 in | |
| Bed F-B | 30 in | |
| Stroke | 8 in | |
| Adjustment | 4.5 in | |
| Shut Height | 22 in | |
| Speed (max) | 60 strokes/min. | 60 strokes/min. |
| Speed (min) | 30 strokes/min. | 30 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 107 lr x 97 fb x 176 tall | 107 lr x 97 fb x 176 tall |
| Weight | 49,000 lbs | 49,000 lbs |
Capacity: 150 Ton
Bed Area: 50" lr x 30" fb
Bolster Plate: 4.5" thick (t-slotted)
Ram Area: 34" lr x 24" fb
Stroke: 8"
Adjustment: 4.5"
Speed: 30 - 60 SPM
Shut Height: 22"
Floor to Top of Bed: 37”
Floor to Top of Bolster: 41.5”
