Live Tool , C Axis, Tailstock
| Swing | 23" | 584.2 mm |
| Machining Length | 24" | 609.6 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 10.3" | 261.62 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |

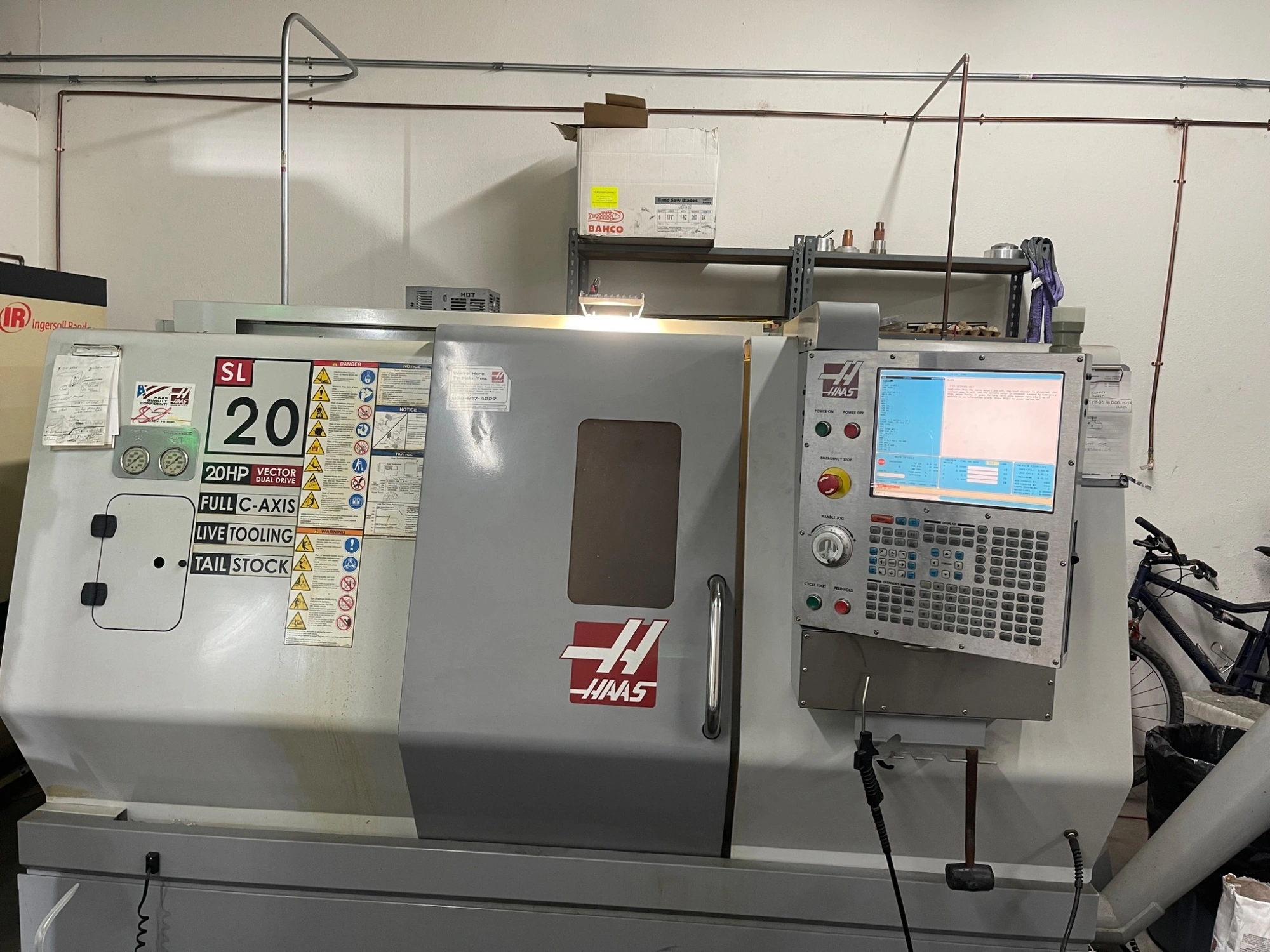

Haas SL-20 Live Tool CNC Lathe (2008)
Max Swing Over Front Apron: 23.0″
Max Swing Over Cross Slide: 9.5″
Chuck Size: 8.3″ 3-Jaw Chuck and 5C Collet Chuck
Max Turning Diameter: 10.3″
Max Turning Length: 20″
Rapid Feed Rates: 710 IPM
Spindle Speeds: 4,000 Max RPM
Spindle Drive: 20 HP Vector
Spindle Nose: A2-6
Hole Thru Spindle: 3.0″
Max Swing Over Bed: 23″
Hole Thru Draw Tube: 2.06″
Max Swing Over Saddle: 9.5″
Turret Capacity: 12 Station
Turret Index Time (One Tool): 1 Second
Turret Travels (X,Z): 8.45″ / 20″
Turret Index Time: 1 Second Per Station
Tailstock Travel: 20″
Tailstock Quill Diameter / Taper: #4 Morse Taper
Rapid Feed Rates: 1,000 IPM
Electrical: 208/230 Volt 3 Phase
Haas 32-Bit CNC Control, Live Milling on Turret, Full C-Axis Spindle (.001 Degree),
12 Station Live Tooling, Tailstock, 3 Jaw Hydraulic Chuck, Chip Auger
