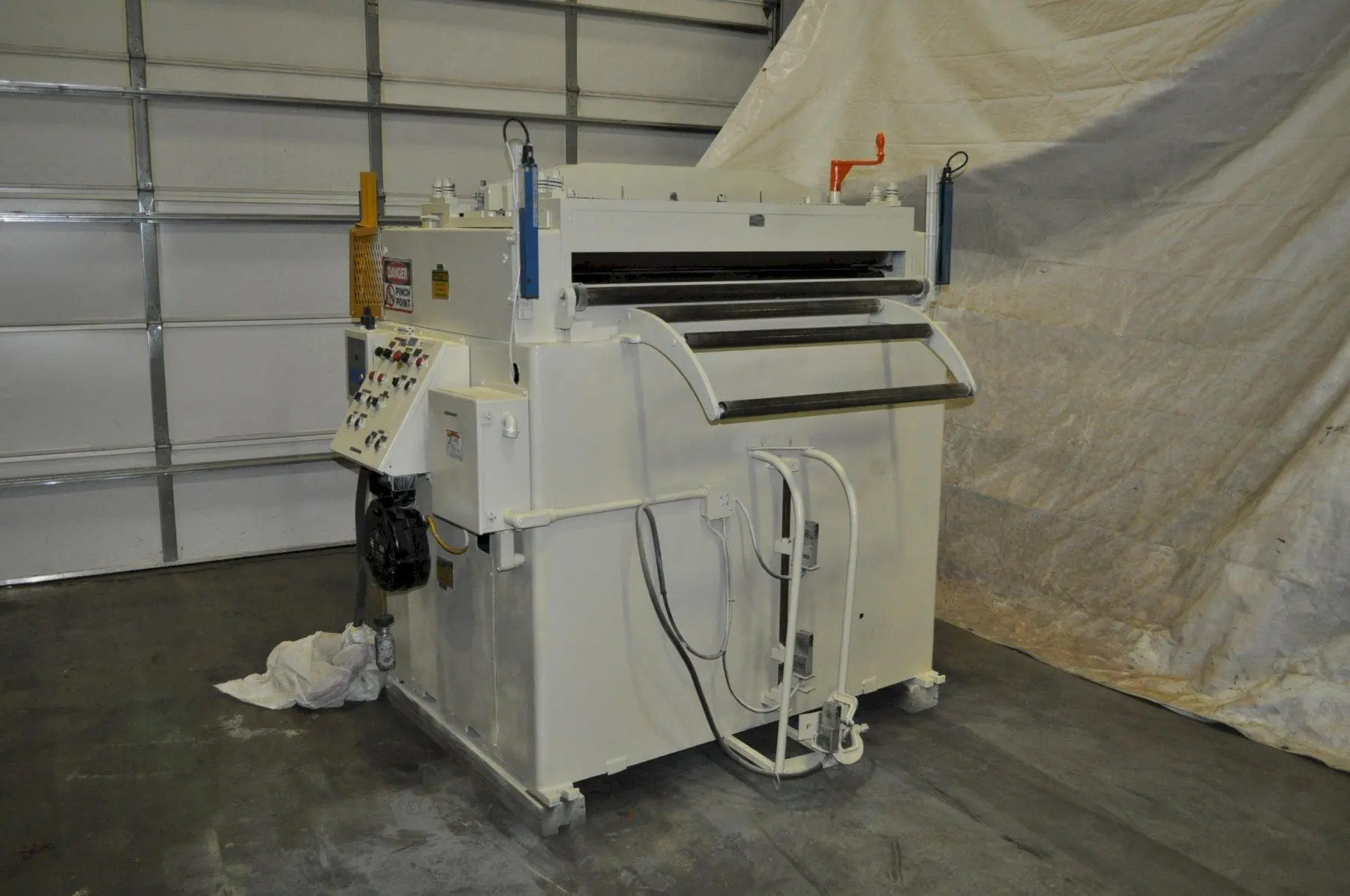

For sale: Used CWP 48D-11 Straightener. Handles up to 48" wide, 0.093" thick coils. Features 11 rolls, entry/exit pinch rolls, loop control. Operates at 10 HP, 460V. Approx. dimensions: 77" x 72" x 84", 8400 lbs.
| Max Coil Width | 48 in | |
| Max Coil Thickness | 0.093 in |
CWP Straightener:
48" MAX WIDTH
.021" -.093" CAPACITY
11 ROLL STRAIGHTENER
ENTRY + EXIT PINCH ROLLS
LOOP CONTROL
CAN ACCEPT 52" WIDE MATERIAL
58" PASSLINE
4.20" PINCH ROLL DIAMETER
2.80" STRAIGHTENING ROLL DIAMETER
3.25" CENTER DISTANCE
10 HP
460V
77" X 72" X 84"T APROX.
8400 LBS APROX.
