Maximum clamp force (lbs): 800
Amplitude range :: 0.040" to 0.070" (1.02 to 1.8 mm)
Lift table speed:: 10 inches/second (254 mm/second)
Total dry cycle time (without welding):: 5.0 seconds (at 15" [380 mm] stroke and 50 psig)
Horsepower:: 12.7 kW
Power requirements:: 480 V AC, 15 amps, 3 phase, 50/60 Hz
Output frequency:: 240 Hz variable
Drive platen fixture weight capacity:: 7-8 lbs. (3.2-3.6 kg) recommended

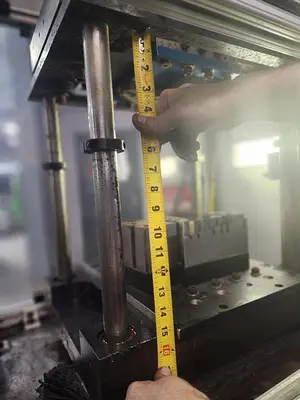

Open Daylight (in.): 15

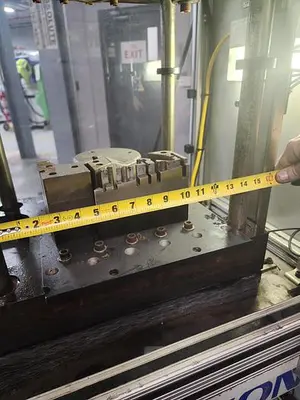

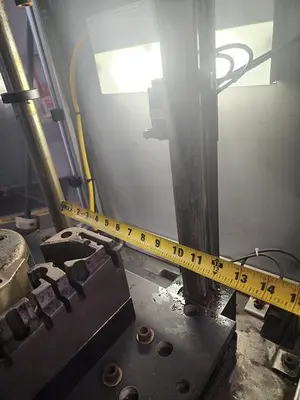

Space Between Bars LxW(in.): 13 1/4 X 10
