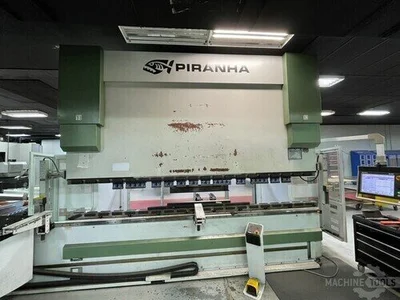

USED PIRANHA 280-13P

Brand – PIRANHA Model – 280-13P Type – Press Brakes Year – 2017 Condition – Used – Good

Tonnage: 280 T
Type: HYD
Overall Length: 161.4″
Between Housings: 141.5″
Stroke: 8.5″
# Axis: 6
Dimensions: 197″ L x 83″ W x 110″ H
Weight: 37200

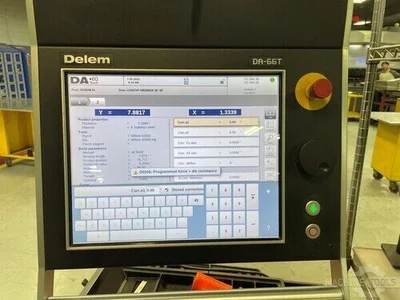

Control: CNC (Delem DA-66T)
Press Force: 280 Tons Length of Worktable: 161.4 in Distance Between Uprights: 141.5 in Throat Depth: 16.1 in Ram Stroke: 8.5 in Max Open Height (with Die Rail, No Clamps): 17.7 in Die Rail Height: 3.15 in

Delem DA-66T Control, Synchronized precision hydraulic brake system with programmable Y1/Y2 rams, EasyCrown integrated hydraulic crowning system for accurate bends, Fiessler AKAS-LC laser safety curtain system, European/American reversible precision tooling clamps, Manual and linear-guided front sheet supports, High-speed precision back gauge (X, R, Z1/Z2) – up to 6+1 axis,
