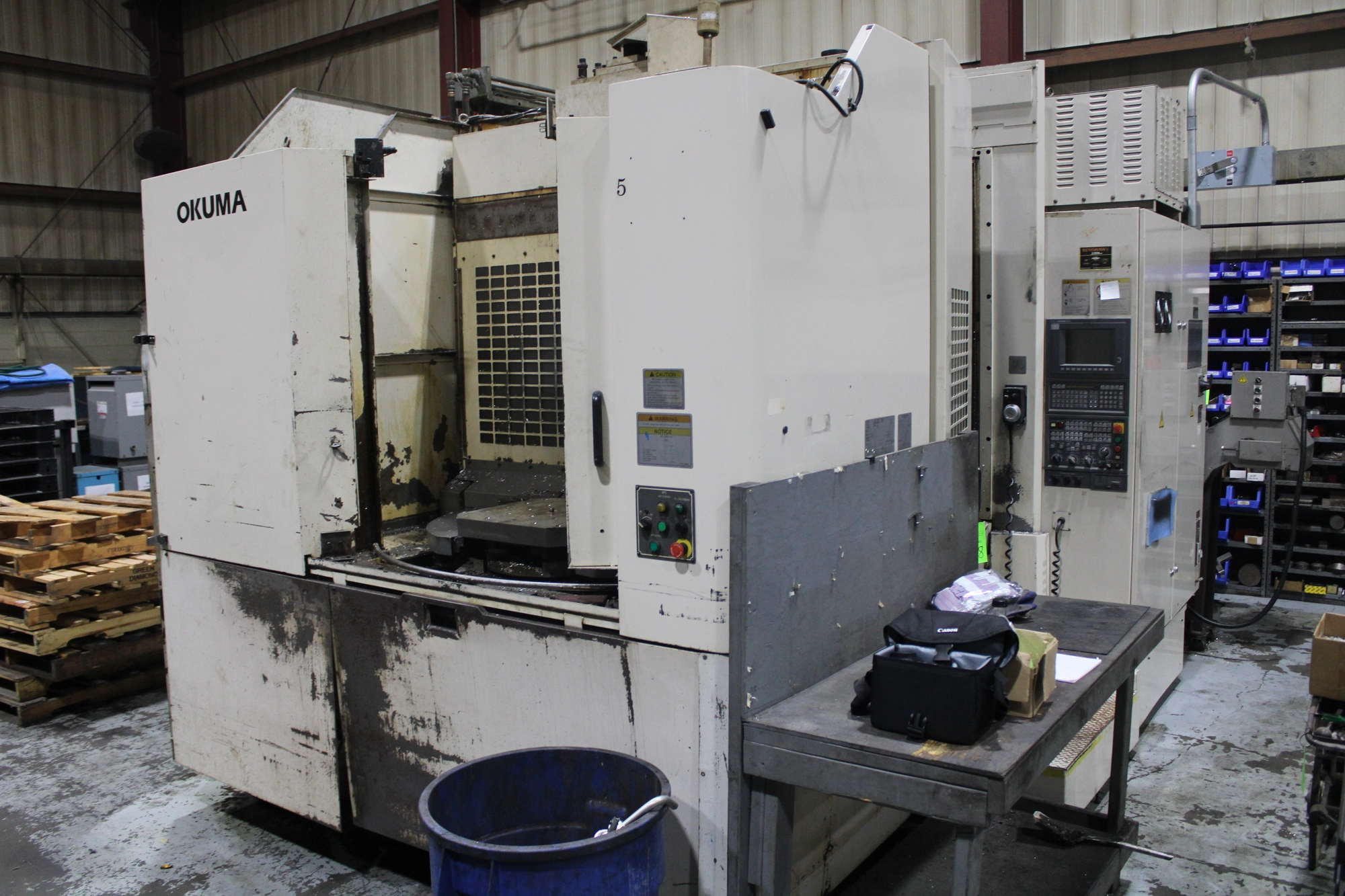

USED 2000 OKUMA MX-50HB

SN: 0202

SPECIFICATIONS
Control.............................................. OSP U100M
X-Axis Travel ................................... 27.56"
Y-Axis Travel ................................... 31.50"
Z-Axis Travel ................................... 27.56"
Number of Pallets ........................... 2
Pallet Size ...................................... 19.69" x 19.69"
Pallet Indexing ............................... 1 Degree
Spindle Speed Range .................... 50-5,000 RPM
Spindle Taper ................................. CAT 50
Tool Changer Positions................... 60 ATC
Max. Tool Diameter / Length / Weight 10.0"/ 17.72 / 55LBS.
Spindle Drive Motor ....................... 30 HP AC
Rapid Traverse (X,Y,Z) .................. 1,181 IPM
Feed Rate...................................... 0.04 - 787 ipm
Tool Change Time
   Chip to Chip................................ 5 sec
   Tool to Tool.................................. 2 sec
EQUIPPED WITH:
Dual Pallet
One Degree Indexing
Chip Blaster Thru The Spindle
2 Pallet Changer
HI-G
Graphics
320M Storage
Rigid Tapping
Machinery Management Software
3.5" Floppy Disk Drive

Floor Space (L X W X H)................ 195" X 137"X 130"
Weight (Approx)............................... 46,200 lbs
