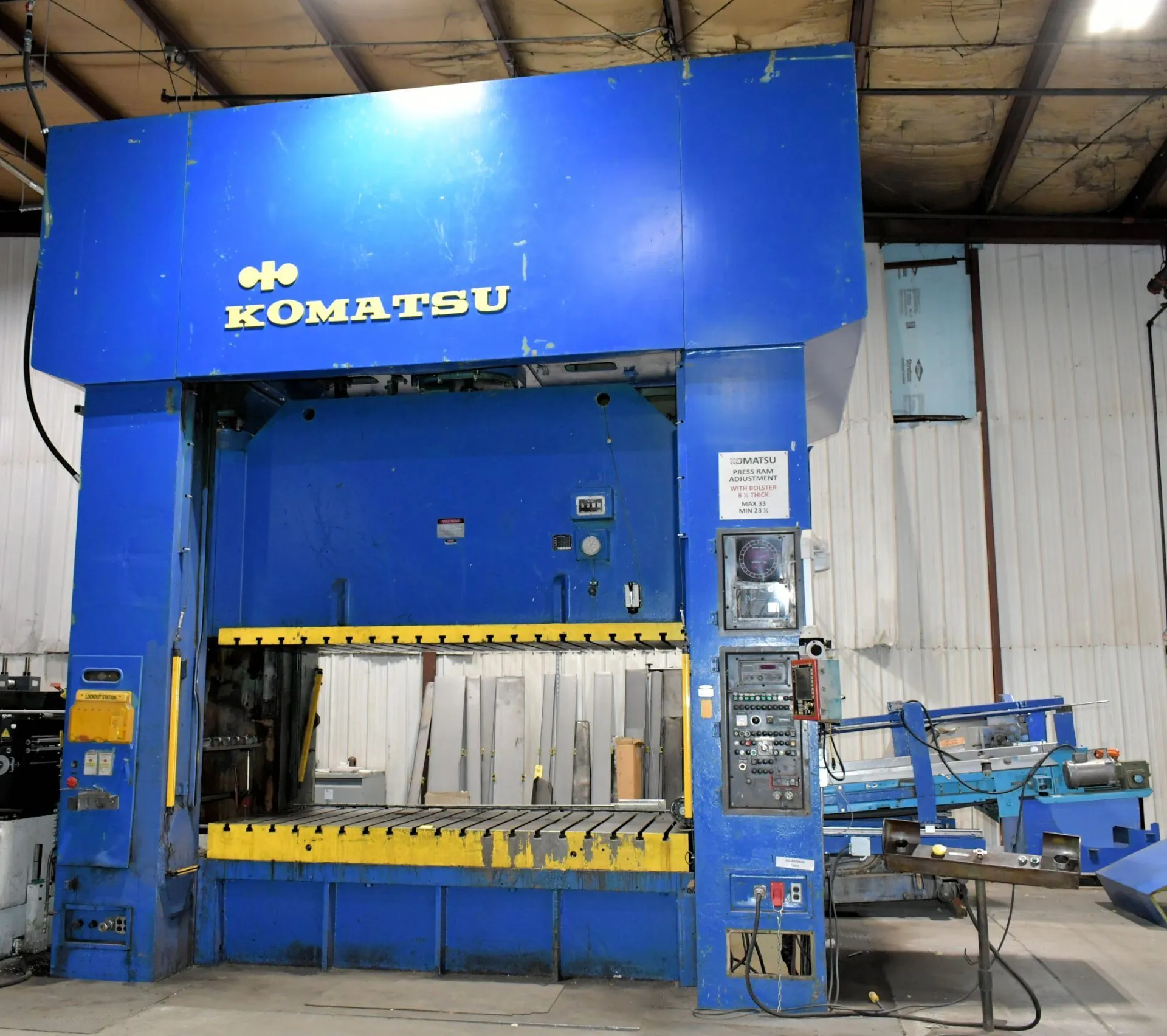

Komatsu 550 US Ton Straight Side Mechanical Press. 118.11" x 51.18" Bed area, 11.81" Stroke, 33.07" Shut height over the bolster, and 20-40 SPM.
| Tonnage | 550 T | 498.952 t |
| Stroke | 11.81" | 299.97 mm |
| Shut Height | 33.07" | 839.98 mm |
| Bed area (Left to right) | 118.11" | 3,000 mm |
| Bed area (Front to back) | 51.18" | 1,300 mm |
| SPM min. | 20 strokes/min. | 20 strokes/min. |
| SPM max. | 40 strokes/min. | 40 strokes/min. |
| Adjustment | 9.84" | 249.94 mm |
| Windows Width | 48" | 1,219.2 mm |
Model Number: E2F 500
Serial Number: 10016
Capacity: 550 Tons US Tons
Year of Manufacture: 1986
Bed Area: 118.11” x 51.18”
Slide Area: 118.11” x 47.24”
Stroke: 11.81”
Adjustment: 9.84”
Shut Height: 33.07” over bolsterSDAU
Strokes per Minute: 20-40
Bolster: 8” thick approx.
Windows: 48” wide x 32” tall
Trabon Recirculating Lubrication System
Power Supply: 480V/60 HZ/ 3 Phase
T-slotted Bolster and Ram
Wintriss Smart Pac 2 Press Controller
DSI 2 Wintriss Die Protection (8 Inputs)
Light Curtains
8 Point Gibbing
Variable Speed Motor
Jet Set Pac Lube Sprayer
Air Clutch and Brake Assembly
Air Counterbalances
Vibration Isolation Levelers
