2006 Haas VF-2D WIPS Renishaw Tool & Part Probe, Wired for 4th Axis, Macros, Programmable Coolant, 10k rpm Spindle, High-Speed Machining

Haas WIP Renishaw Tool & Part Probe
24 Station Side Mounted Tool Changer
4th Axis Drive & Wiring
10,000 RPM Spindle
Programmable Coolant Nozzle
High Speed Machining
Auger Style Chip Conveyor
Remote Jog Handle
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Visual Quick Code Programming
1 MB Programming Memory
Floppy Disk Drive Converted to a USB Drive
RS 232 Port Interface
Brushless Servo Motors
208/230 Volts 3-Phase

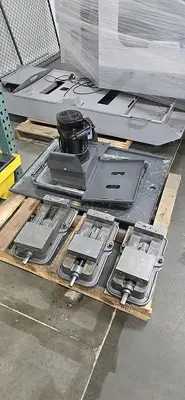

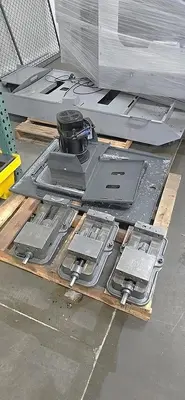

(3) Kurt Vises

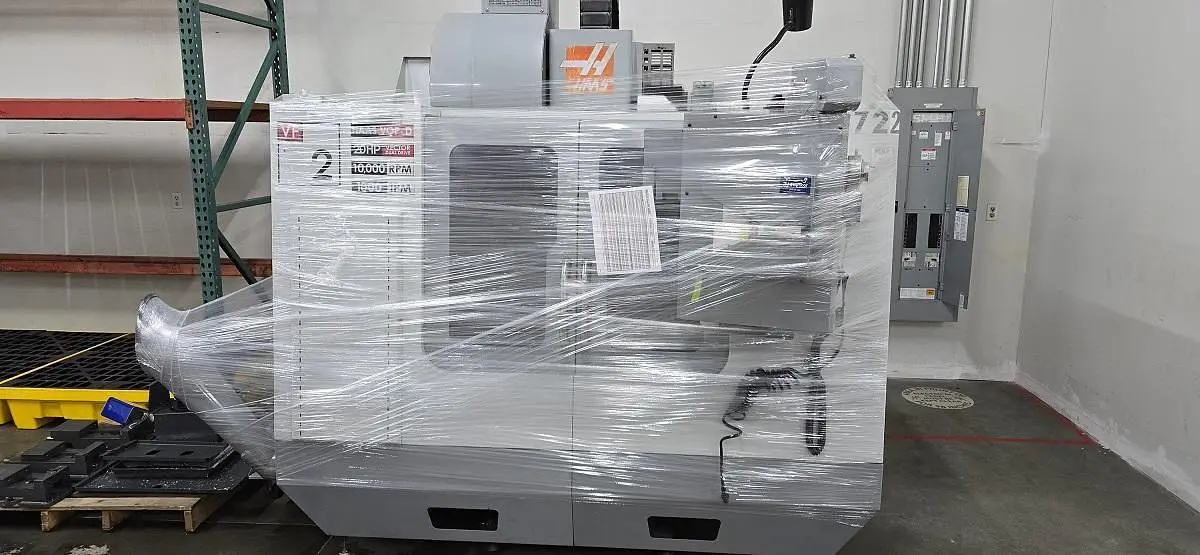

The 2006 Haas VF-2D is a versatile CNC Vertical Machining Center designed for precision and efficiency. This machine features a Renishaw tool and part probe system to enhance accuracy and ease of setup. It's wired for a 4th axis, offering expanded capabilities for complex operations. The machine supports macros and programmable coolant, providing flexibility and improved operational control.

Equipped with a 10,000 RPM CAT 40 spindle and high-speed machining capabilities, the VF-2D is ideal for fast, precise work. Its table size measures 36" x 14" with a maximum load capacity of 3,000 lbs. The machine offers travel capabilities of 30" on the X-axis, 16" on the Y-axis, and 20" on the Z-axis. The tool magazine has a 24-station side-mounted ATC, which facilitates quick tool changes.

With rapid traverse rates of 1,000 IPM, the VF-2D ensures efficiency in operation. The machine's dimensions are 88" x 92.5" x 104" and it weighs 8,000 lbs, making it a robust choice for high-demand machining environments. Its programmable features and high-speed capabilities make it suitable for a variety of industrial applications.

Table Size: 36" x 14"
Maximum Table Load: 3,000 lbs
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Distance Spindle Nose to Table Top: 4" - 24"
Spindle Taper: CAT 40
Spindle Speed: 10,000 RPM
Spindle Motor: 2 hp
Tool Magazine Capacity: 24 Station Side Mounted ATC
Maximum Tool Diameter / Length / Weight: 3.5" / NA / 12 lbs
Rapid Traverse Rates: 1,000 IPM
Machine Dimensions LxWxH: 88"x92.5"x104"
Machine Weight: 8,000 lbs
