NEW POWERMATIC 4224B

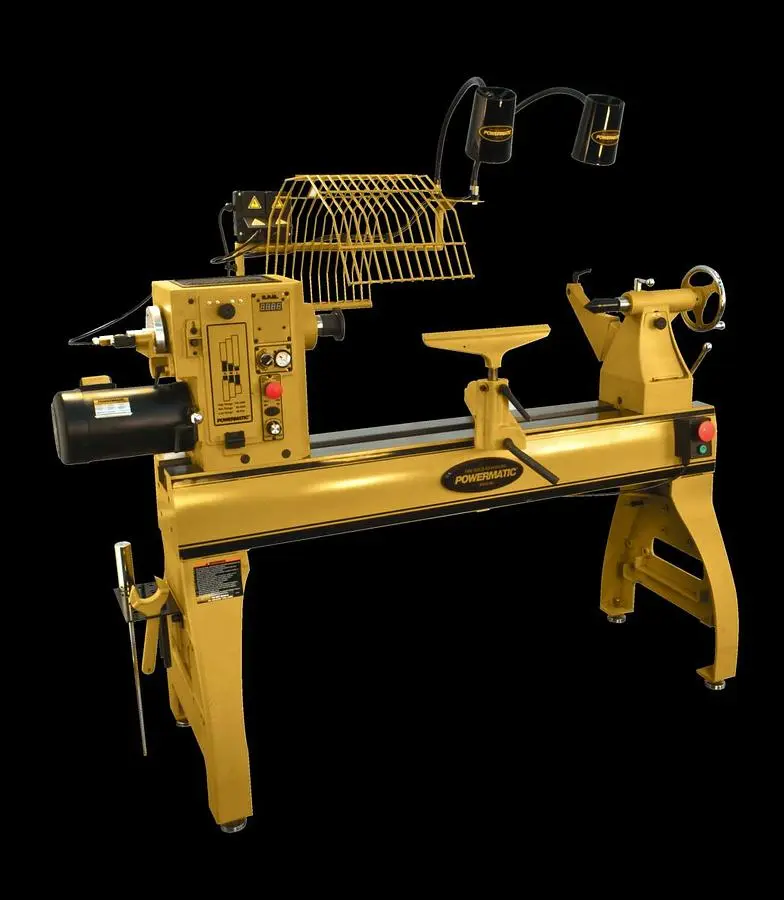

Powermatic 4224B Lathe with Lamp Kit 1794224K, 3HP, 220V, 1PH, 24 x 42 Capacity

New Machine!

15 Amp quad receptacle for easy reach of powered accessories
Variable frequency drive allows machine to run on single- or three-phase power
Air nozzle with quick connect for clearing dust/chips
Brass-tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
Includes two 100W task lamps to provide ideal lighting and safety guard.
Magnetic-backed moveable control box for versatility and safety
Set of dead centers which hold a spindle for visual comparison

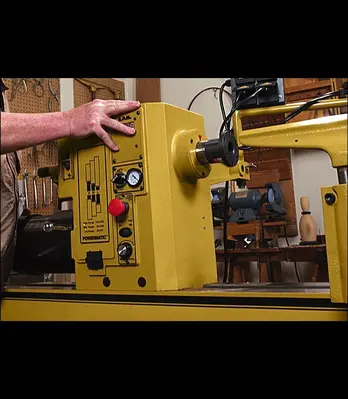

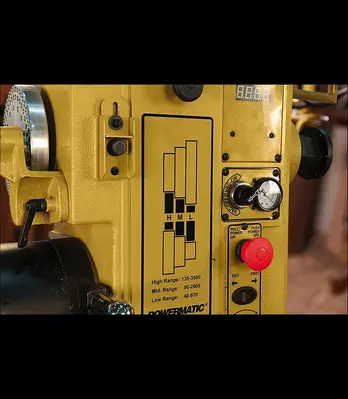

Sliding headstock with electronic variable speed
Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
Vacuum system provides quick method of chucking bowl blanks

Specification Value

Swing Over Bed (In.) 24
Distance Between Centers (In.) 42
Weight (Lbs.) 870
Centerline of Spindle to Floor (In.) 44
Motor Power (HP) 3, 220V, 1PH
Bed Construction Cast Iron
Overall Dimensions (L x W x H) (In.) 89 x 28 x 65
Motor Amps 10 Recommended Circuit Size (Amps.) 30
Shipping Dimensions (L x W x H) (In.) 68 x 27 x 31.5
Net Weight (Lbs.) 870
Gross Weight (Lbs) 945
Input Power 220V, 1PH
Length 68"
