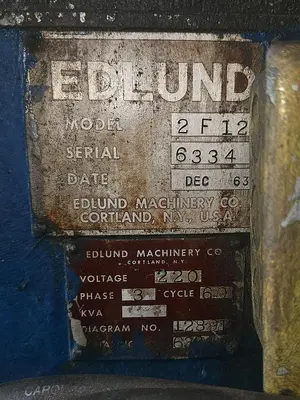

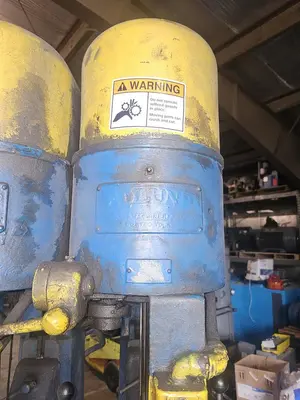

USED 1963 EDLUND 2F12

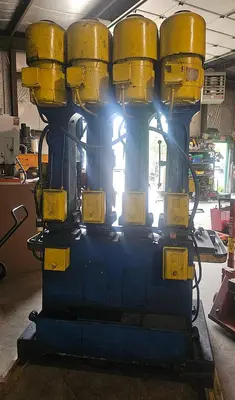

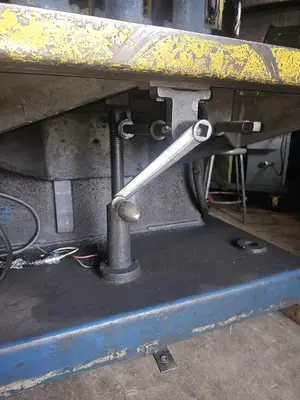

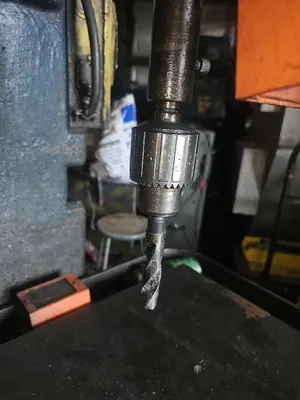

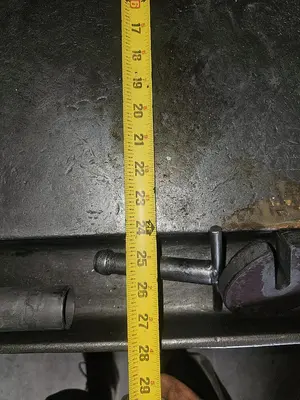

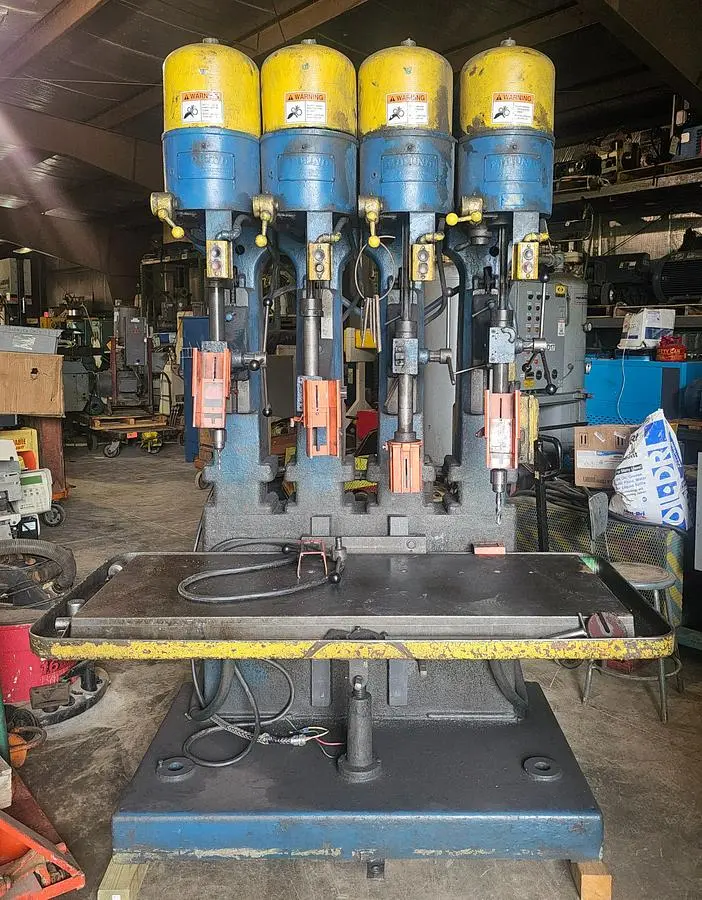

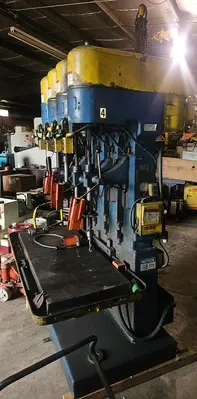

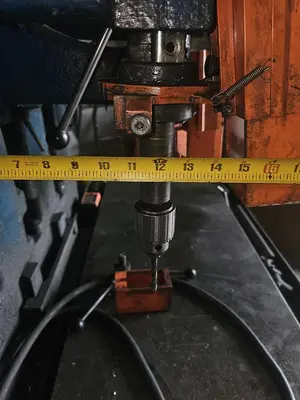

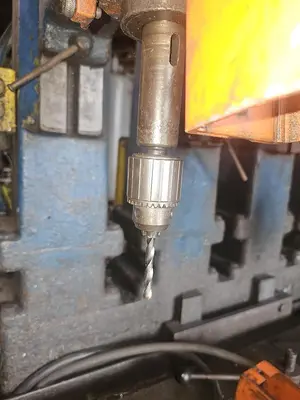

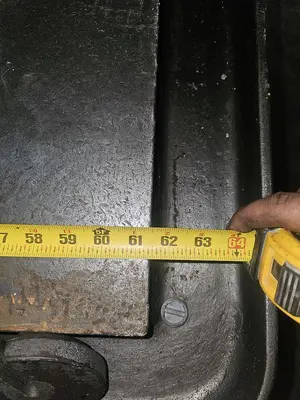

Edlund 2F12 4-Spindle Industrial Gang Drilling MachineModel: 2F12 (4-Head Configuration)Type: High-Production Heavy-Duty Gang DrillCondition: Professional Grade / Fully OperationalThe Multi-Stage Production AdvantageThe Edlund 2F12 is engineered for the highest levels of manual drilling efficiency. By utilizing four independent spindles, this machine eliminates the need for tool changes. Each spindle can be set to a different speed and depth, allowing workpieces to move across the 61" precision-ground table in seconds. Built on a massive cast-iron base with a "24-inch swing" capacity, the 2F12 is significantly more rigid and capable than standard multi-spindle drill presses.Technical SpecificationsNumber of Spindles: 4 Independent HeadsTable Size: Approx. 24" x 61" (Precision-ground with coolant trough)Spindle Taper: #3 Morse Taper (MT3) – (Accommodates large-diameter drills)Spindle Speeds: 0 – 2,400 RPM (Infinitely Variable per head)Spindle Travel (Quill): 6" – 7.5"Drilling Capacity: 7/8" in Mild Steel / 1" in Cast IronMotor Power: 2 HP per head (8 HP Total Capacity)Electrics: 230V / 460V, 3-PhaseDistance Between Spindles: 12" CentersVertical Table Travel: 15" (Adjustable via ball screw or rack/pinion)Machine Weight: Approx. 4,500 – 5,500 lbsKey Features & EquipmentIndependent Speed Control: Each of the four heads features its own variable speed dial, allowing for optimized SFPM for various hole sizes and materials.Heavy-Duty Meehanite Casting: The massive common base and columns provide the dampening needed for heavy-duty drilling without chatter.Adjustable Table Height: The large work surface can be raised or lowered to accommodate tall fixtures or deep parts.Integrated Coolant Reservoir: Large-capacity table trough designed for high-volume coolant recycling during production runs.Included Tooling: Equipped with industrial-grade Jacobs ball-bearing chucks on each spindle.Dealer Note"This 4-spindle 2F12 is a rare find in the current market. While 2-spindle units are common, the 4-spindle 'K' frame allows for true industrial throughput. Whether you are running small-batch aerospace parts or high-volume structural components, this Edlund offers the reliability and 'Made in USA' rigidity that modern imports lack. The independent MT3 spindles make this a incredibly versatile tool for any serious machine shop."
