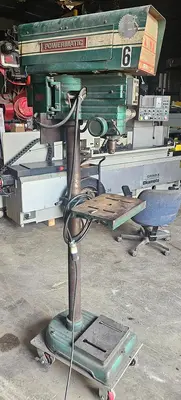

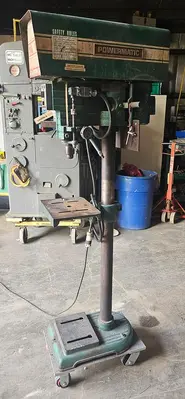

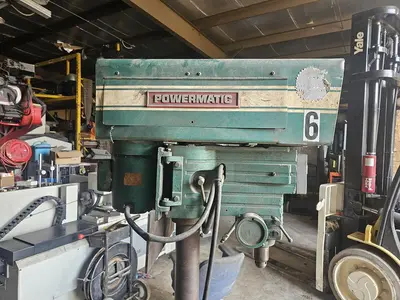

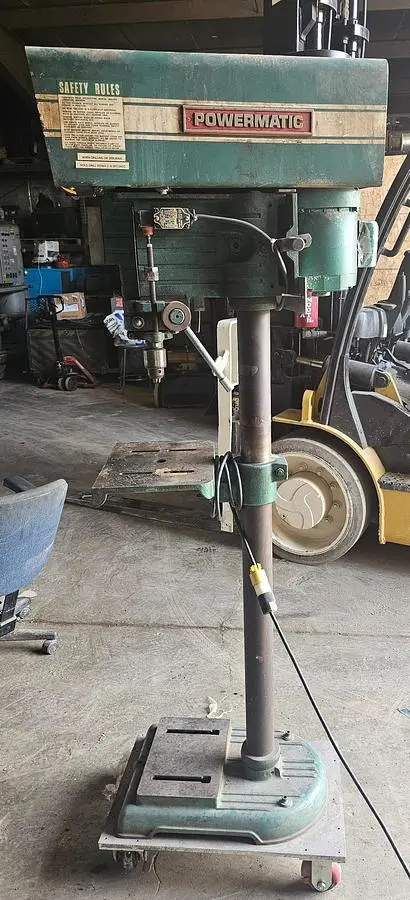

USED 1973 POWERMATIC 1150

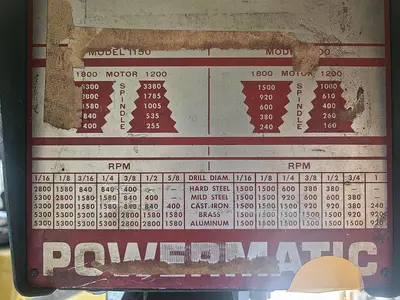

1973 Powermatic 1150 15" Industrial Pedestal Drill PressSerial Number: 315S905 or 315S402Year of Manufacture: 1973Power: 115/230V Single Phase (Plug-and-Play)Condition: Professional Grade / Well-MaintainedOverviewThe Powermatic 1150 is a legendary American-made drill press, favored by machinists and high-end woodworkers alike. Built in McMinnville, Tennessee, this 1973 unit comes from the highly regarded Houdaille era, known for its massive cast-iron construction and "overbuilt" mechanical components. This specific machine features the Step-Pulley drive system, which is widely preferred for its mechanical simplicity and bulletproof reliability compared to complex variable-speed heads.Technical SpecificationsSwing: 15" (Drills to center of a 15" circle)Quill Stroke: 6" (Industry-leading depth for deep boring)Spindle Taper: #2 Morse Taper (MT2)Speeds: 5 Speeds (400, 840, 1580, 2800, 5300 RPM)Motor: 1 HP Industrial Motor, 1725 RPMElectrical: Single Phase, 60Hz, 115/230VColumn Diameter: 3" Heavy-walled steelTable Type: Production TableOverall Height: 66"Weight: Approx. 325 lbsKey FeaturesMassive 6" Quill Travel: The extra-long stroke allows you to drill through thick stock or use long bits without having to reposition the table mid-cut.Step-Pulley Reliability: The 5-speed belt-and-pulley system is quiet, efficient, and virtually maintenance-free. Unlike mechanical variable speed drives, there are no expensive sheaves to wear out.Tension Control: Features a rapid-release motor mount for fast, tool-free belt speed changes.Single Phase Advantage: Factory-wired for standard household/small-shop power. No phase converters or VFDs required.Precision Ground Table: Heavy cast-iron work surface with dual "T-slots" for secure fixture mounting.Dealer Note: "Serial #315S905 is a prime example of why vintage Powermatic iron is still the gold standard. In an era of lightweight imports, this 1973 floor model offers a level of rigidity and quill precision that is hard to find today. If you want a machine that will hold its value and stay accurate for another 50 years, this is the one."

S/N: 315S905 or

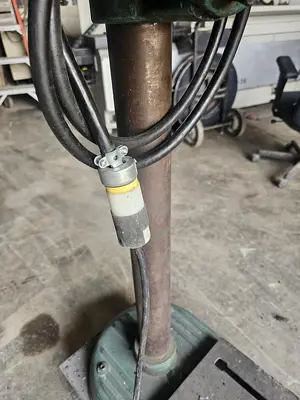

Power: 115/230V Single Phase (Plug-and-Play)
* Spindle Taper: #2 Morse Taper (MT2)
* Electrical: Single Phase, 60Hz, 115/230V
* Column Diameter: 3" Heavy-walled steel

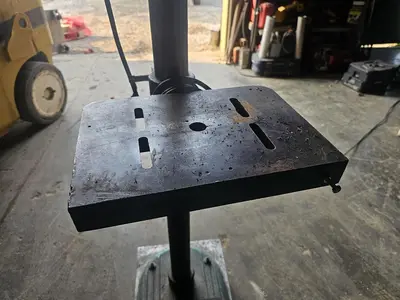

* Table Type: Production Table
* Weight: Approx. 325 lbs
* Overall Height: 66"
* Single Phase Advantage: Factory-wired for standard household/small-shop
