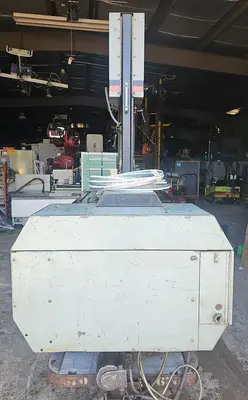

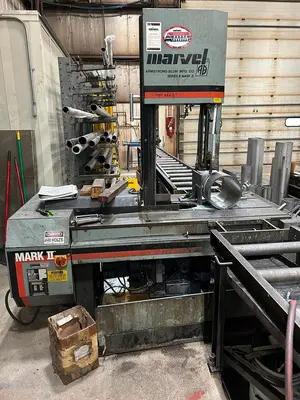

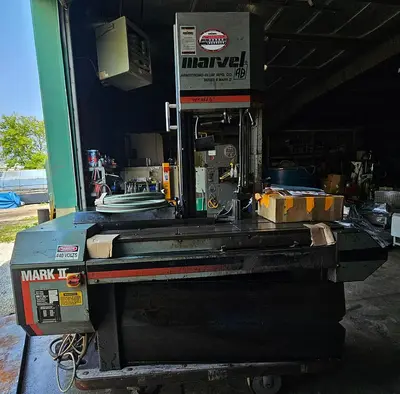

USED 1995 MARVEL SERIES 8 MARK II

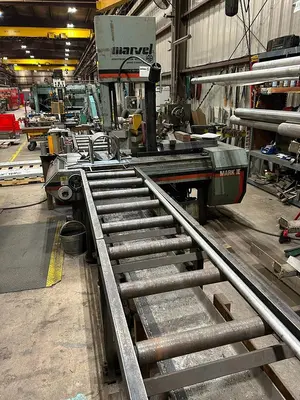

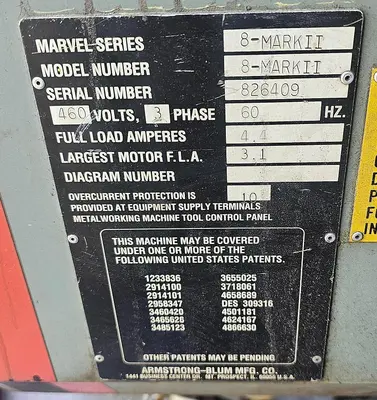

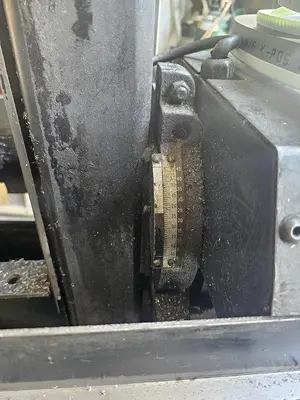

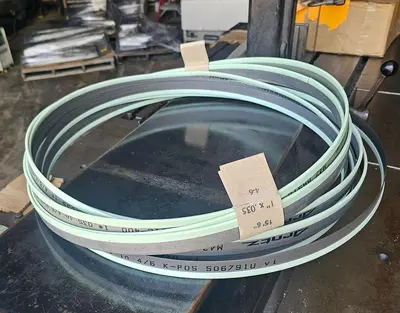

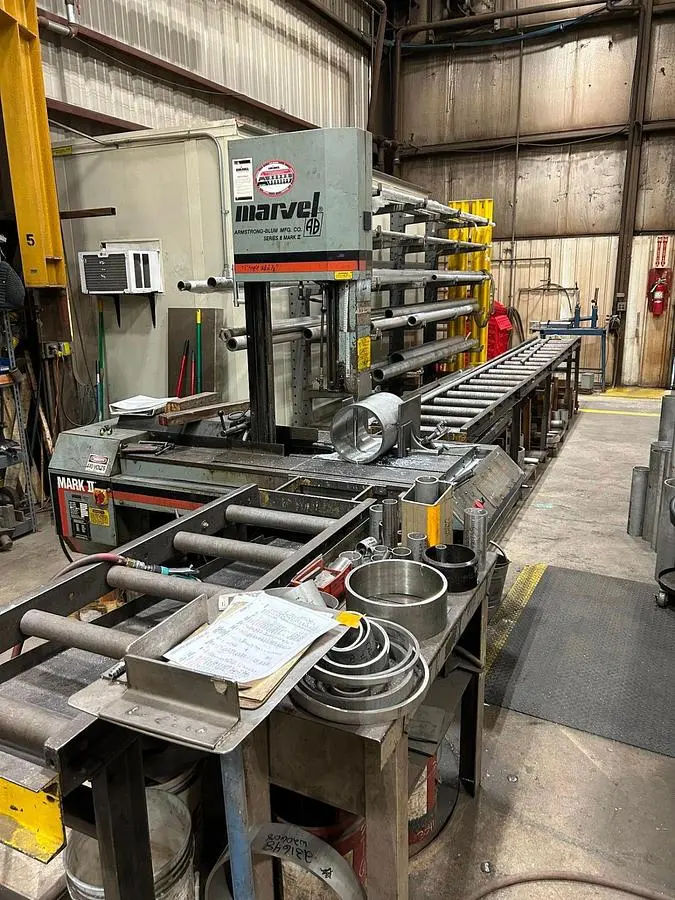

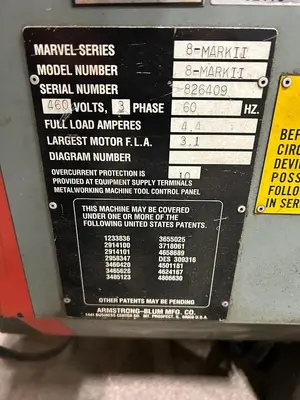

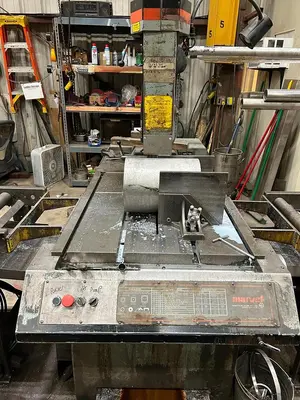

1995 Marvel Series 8 Mark II Vertical Tilt-Frame BandsawSerial Number: 826409Year of Manufacture: 1995Country of Origin: USACondition: Professional Grade / Production ReadyOverviewThe Marvel Series 8 Mark II is the "Swiss Army Knife" of the fabrication world. Its unique vertical tilt-frame design allows the column to miter up to 45° left or right while the workpiece remains stationary on the table—a critical feature for shops handling long structural beams or heavy tubing. Known for its massive cast-iron table and precision mechanical feed, this saw is built to deliver square, accurate cuts across a massive work envelope.Technical SpecificationsCapacity (90°): 18" Horizontal x 22" VerticalCapacity (45° Miter): 18" Horizontal x 12.75" VerticalBlade Size: 1" Wide x 14' 6" Long x .035" ThickBlade Speeds: 50 – 450 FPM (Infinitely Variable)Feed Force: 0 – 140 lbs (Adjustable Mechanical Feed)Table Size: 33" x 24.25" T-Slotted Working SurfaceMotor: 2 HP, 230/460V, 3-PhaseMachine Weight: Approx. 2,870 lbsKey Features & PerformanceTilt-Frame Versatility: Quickly adjust for miter cuts using the built-in protractor. This eliminates the need to angle 20-foot beams across your shop floor, saving massive amounts of space.Mechanical Power Feed: Marvel’s signature feed system automatically senses material resistance. If the blade encounters a hard spot or starts to deflect, the feed slows down to protect the blade and ensure cut quality.All-Gear Drive: Features a rugged, oil-bath lubricated gearbox for maximum torque transmission and long-term durability compared to belt-driven alternatives.Integrated Coolant System: A high-capacity pump and reservoir ensure the blade stays lubricated during heavy production runs, extending tooling life.Quick-Action Vise: Includes a heavy-duty manual vise that can be positioned anywhere along the T-slotted table for secure clamping of irregular shapes.Dealer Note: "The 1995 Marvel Mark II is a true 'lifetime' machine. Unlike modern light-duty saws, this unit uses heavy-walled castings to dampen vibration, which is why these saws are still the first choice for structural steel shops decades later. Serial #826409 has been well-maintained and is ready to go back into 24/7 service immediately."

* Machine Weight: Approx. 2,870 lbs

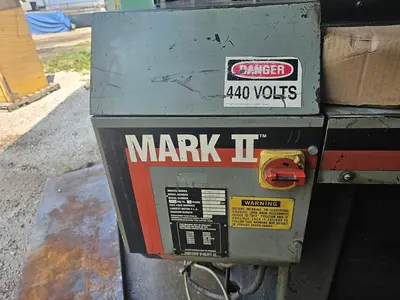

* Motor: 2 HP, 230/460V, 3-Phase
Country of Origin: USA
