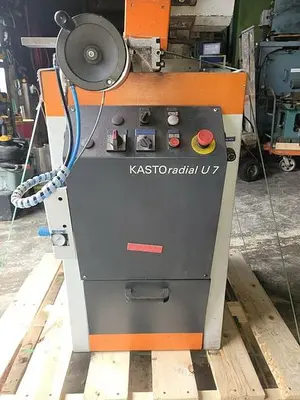

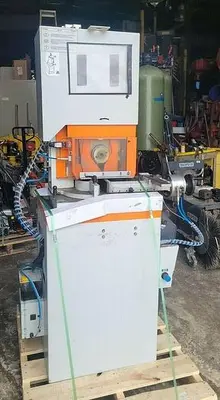

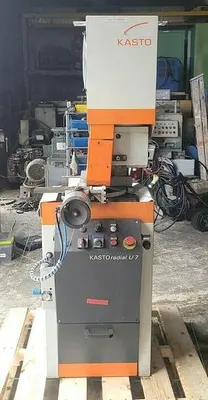

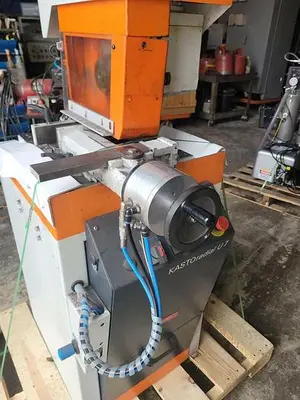

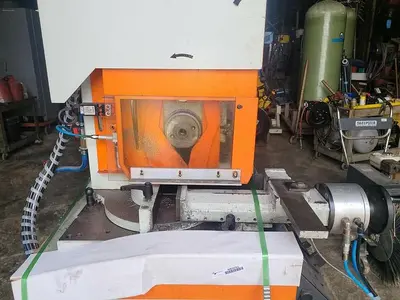

USED 2016 KASTO RADIAL U7

2016 Kasto RADIAL U7 Semi-Automatic Circular Cold SawPrecision Cut-Off | High-Efficiency Production | German EngineeredOverviewThe Kasto RADIAL U7 is a premium, vertical-style circular cold saw designed for the fast and burr-free cutting of tubes, profiles, and solid materials. Unlike standard abrasive chop saws, the U7 utilizes a slow-speed HSS blade and flood coolant to produce a "milled" finish that is cool to the touch and requires zero secondary deburring.This 2016 model features a semi-automatic cycle: with a single foot switch or button press, the machine clamps the material, performs the cut with a controlled hydraulic/pneumatic feed, and returns the head to the home position—drastically reducing operator fatigue and increasing throughput.Technical SpecificationsYear of Manufacture: 2016Blade Diameter: 315 mm (Approx. 12.5")Blade Speed: Dual Speed (17 / 34 m/min or 34 / 68 m/min options)Mitering Capacity: +/- 45° (Head swivels, material stays straight)Vise Opening: 5.31" MaxMotor: 2-Speed 1.74 / 2.41 HP (3-Phase)Operation: Semi-Automatic (Pneumatic/Hydraulic feed & clamping)Cooling System: Integrated recirculating flood coolantMachine Weight: Approx. 660 lbs (Compact but rigid cast iron base)Cutting Capacities (90 & 45°)Round Tube: 3.74" (95 mm)Round Solid: 2.76" (70 mm)Square Tube: 3.35" x 3.35" (85 x 85 mm)Flat Rectangle: 5.31" x 2.95" (135 x 75 mm)Key Features & Dealer BenefitsBurr-Free Results: The double-clamping pneumatic vise secures material on both sides of the blade, ensuring perfectly square, clean cuts every time.Smart Cycle Times: Features automatic stroke height adjustment; the saw head only travels as far as needed for the material size, shaving seconds off every cut.Heav: y-Duty Gearbox: Features a precision-ground worm gear drive in an oil bath, providing the high torque and vibration-dampening needed for stainless steel and tough alloys.Space-Saving Design: With a small footprint (approx. 18" x 41"), this machine fits easily into tool rooms or busy production cells without sacrificing capacity.Dealer Note: Kasto is widely considered the "Mercedes" of the sawing world. This 2016 U7 unit is an ideal upgrade for shops currently using manual pull-down saws that want to increase precision and safety while reducing labor time.

Modified item: No
Wheel diameter: 500 mm
Custom bundle: No
* Blade Diameter: 315 mm (Approx. 12.5")
* Vise Opening: 5.31" Max
* Cooling System: Integrated recirculating flood coolant
* Round Tube: 3.74" (95 mm)
* Round Solid: 2.76" (70 mm)
