Used ExtraktLab E140 Supercritical CO2 Extraction System | High-Throughput Botanical Extraction Platform

Manufacturer Information

Manufacturer: ExtraktLab

Model: E140

System Type: Supercritical CO₂ Extraction System

Condition: Used

Controls: Touchscreen HMI Panel

Chiller Included: PolyScience DuraChill

Manufacturer Overview: ExtraktLab is a leading manufacturer of commercial-scale supercritical CO₂ extraction systems, trusted for efficiency, automation, and scalability in botanical, hemp, and specialty compound processing.

Description

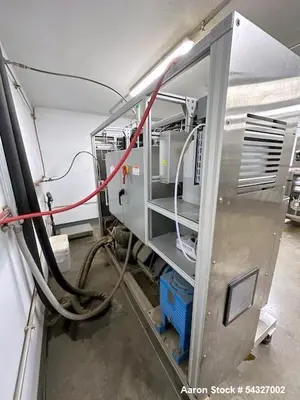

The Used ExtraktLab E140 Supercritical CO₂ Extraction System is a production-capable extraction platform designed for high recovery rates, consistent throughput, and automated operation. Capable of processing up to 192 kg (422 lbs) of biomass per day, this system delivers excellent extraction efficiency—90%+ oil recovery for hemp and 95%+ for marijuana.

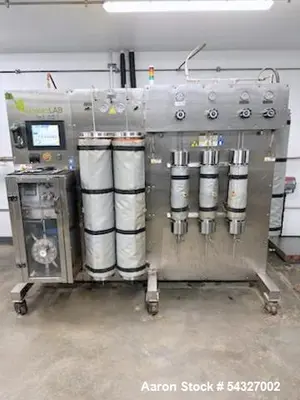

This system includes (2) 20-liter extraction vessels, (3) 304 stainless steel collection columns, and is controlled via an intuitive touchscreen HMI panel. With a compact 24 sq. ft. footprint, the E140 maximizes output while conserving valuable facility space.
The package is further enhanced with optional integrated upgrades, including a CO₂ Recycler System, an Onboard Ethanol Pump, and a PolyScience DuraChill chiller, providing a turnkey solution for high-performance extraction, cleaning, and co-solvent applications.

Specifications

Biomass Processing Capacity (Per Day): 192 kg / 422 lbs

Biomass Input Per Cycle: 5 – 8 kg

Cycle Time (10% PP): 60 minutes

Oil Recovery Efficiency:

Hemp: 90%+

Marijuana: 95%+

Operating Pressure: 0 – 5,000 PSI

Operating Temperature: 25 – 100 °C

CO₂ Supply Inlet Pressure: 750 – 850 PSI

Extraction Vessels: (2) × 20 Liter

Collection Columns: (3) × 304 Stainless Steel

System Footprint: Approx. 24 sq. ft.

Controls: Touchscreen HMI Panel

Electrical Requirements (Extractor):

208 – 240 VAC

3 Phase

50 – 60 Hz

Included Optional Upgrades

CO₂ Recycler System

Liquid CO₂ recycler

5,000 PSI

20L capacity cylinder

Fully integrated with automated HMI control

Onboard Ethanol Pump

Integrated ethanol pump for internal cleaning and co-solvent extraction

5,000 PSI

Automated HMI control

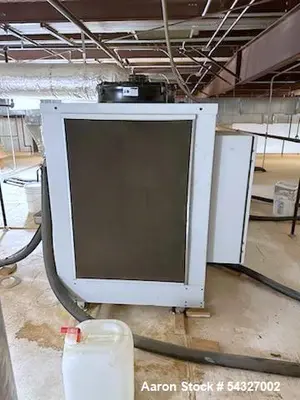

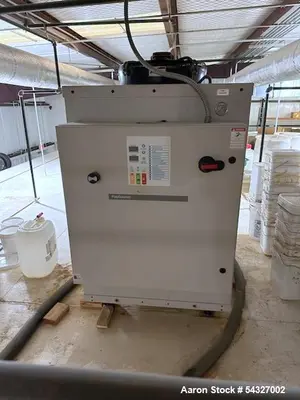

PolyScience DuraChill Chiller

Power: 5 HP

Cooling Capacity: 17,935 Watts / 61,200 BTU/hr @ 35°C

Electrical: 230V / 3 Phase / 60 Hz

Applications

Hemp and cannabis extraction

Botanical oil processing

Nutraceutical and supplement production

Pharmaceutical compound extraction

Terpene recovery

Specialty plant extracts

R&D and pilot-scale extraction

Commercial extraction facilities

Contract extraction services

High-purity CO₂ extraction workflows

What Might This Be Used For

CBD and cannabinoid extraction

THC oil production

Full-spectrum botanical extracts

Terpene isolation

Nutraceutical oils

Pharmaceutical-grade compounds

Specialty plant extracts

Research and formulation development

Commercial cannabis processing

High-efficiency CO₂ extraction operations
