Used ExtraktLab E140 Supercritical CO2 Extraction System | High-Efficiency Botanical Extraction Platform

Manufacturer Information

Manufacturer: ExtraktLab

Model: E140

System Type: Supercritical CO₂ Extraction System

Condition: Used

Controls: Touchscreen HMI Panel

Manufacturer Overview: ExtraktLab is a leading manufacturer of scalable, high-performance extraction systems used in botanical, hemp, and specialty compound processing with an emphasis on efficiency, safety, and automation.

Description

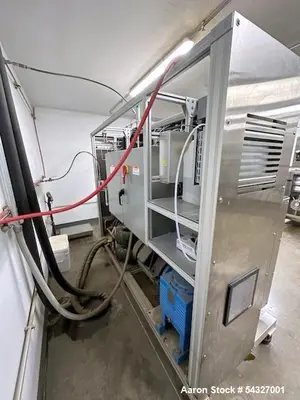

The Used ExtraktLab E140 Supercritical CO₂ Extraction System is a production-grade extraction platform engineered for high recovery, consistent throughput, and automated operation. Capable of processing up to 192 kg (422 lbs) of biomass per day, the E140 delivers exceptional oil recovery rates—90%+ for hemp and 95%+ for marijuana—while maintaining tight control over pressure, temperature, and cycle timing.

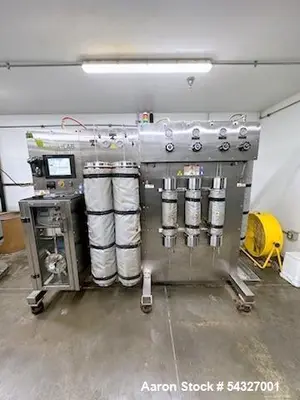

This system includes (2) 20-liter extraction vessels and (3) 304 stainless steel collection columns, all controlled via an intuitive touchscreen HMI. With a compact 24 sq. ft. footprint, the E140 maximizes output while minimizing floor space. The package also includes valuable optional upgrades: a fully integrated CO₂ Recycler System and an Onboard Ethanol Pump, both automated through the HMI for streamlined operation, cleaning, and co-solvent applications.

Specifications

Biomass Processing Capacity (Per Day): 192 kg / 422 lbs

Biomass Input Per Cycle: 5–8 kg

Cycle Time (10% PP): 60 minutes

Oil Recovery Efficiency:

Hemp: 90%+

Marijuana: 95%+

Operating Pressure: 0 – 5,000 PSI

Operating Temperature: 25 – 100 °C

CO₂ Supply Inlet Pressure: 750 – 850 PSI

Extraction Vessels: (2) × 20 Liter

Collection Columns: (3) × 304 Stainless Steel

Footprint: Approximately 24 sq. ft.

Controls: Touchscreen HMI Panel

Electrical Requirements:

208–240 VAC

3 Phase

50–60 Hz

Included Optional Upgrades

CO₂ Recycler System

Liquid CO₂ recycler

5,000 PSI

20L capacity cylinder

Fully integrated with automated HMI control

Onboard Ethanol Pump

Integrated ethanol pump for cleaning and co-solvent use

5,000 PSI

Automated control via HMI panel

Applications

Hemp extraction

Cannabis extraction

Botanical oil production

Nutraceutical processing

Pharmaceutical compound extraction

Terpene extraction

Specialty plant compounds

R&D and pilot-scale production

Commercial-scale extraction facilities

Contract extraction operations

What Might This Be Used For

CBD and cannabinoid extraction

THC oil production

Full-spectrum botanical extracts

Terpene recovery

Nutraceutical oils

Pharmaceutical-grade extracts

Specialty plant compounds

Research and formulation development

Commercial cannabis processing

High-purity CO₂ extraction workflows
