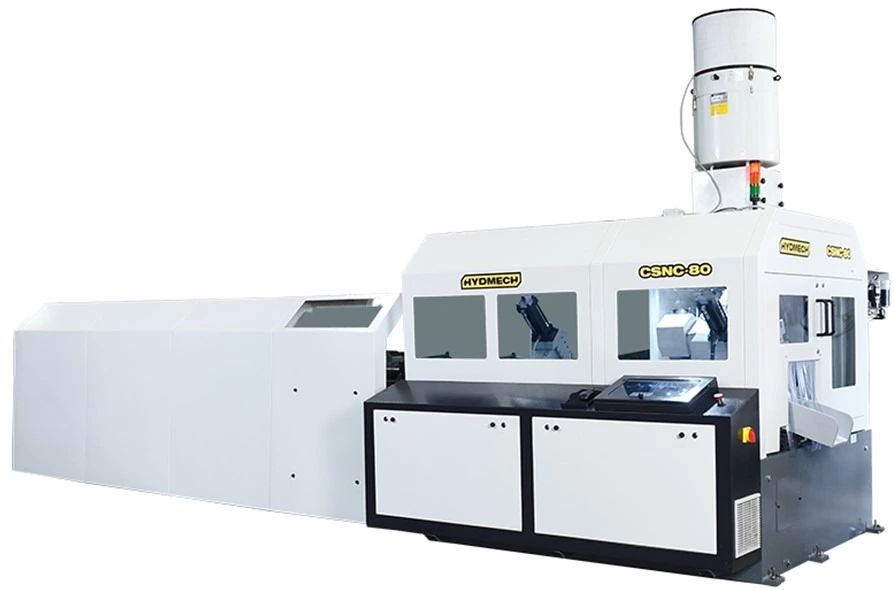

NEW HYDMECH CSNC-80XL

HYDMECH (NEW) MODEL CSNC-80XL HIGH SPEED
CNC CARBIDE CIRCULAR SAW

CAPACITY
- 0.4" - 3.15" ROUND AT 90 DEGREES
- 0.40"-2.17" SQUARE AT 90 DEGREES
285MM X 32MM X 1.7 KERF CARBIDE
CERMET TIPPED BODY BLADE SIZE
10' - 20' BAR STOCK LENGTH
45 DEGREE SLANT TYPE CUTTING AXIS
ZERO OR PROGRAMMABLE
FROM 0.4" TO 3.9" TRIM CUT
39" MULTI-INDEX STANDARD SINGLE STROKE
50-180 MPM BLADE SPEED
0.24" MIN CUT OFF LENGTH
3.15"/80 MM + CUT LENGTH +CUTTER THICKNESS
REMNANT LENGTH
15 HP BLADE DRIVE
3 HP/5 HP W/NON-ROUND LOADER
HYDRAULIC DRIVE
240, 480, 575 VOLTS

STANDARD FEATURES
- MITSUBISHI PLC CONTROLLER
ALLOWS FOR 200 PROGRAMS TO BE SAVED
- JOB MONITORING WITH CYCLE TIME,
JOB DURATION, PARTS COUNT AND AMP LOAD
SETTING TO PROTECT THE SAW BLADE
- MATERIAL LIBRARY W/US STEEL GRADES MENU
W/ABILITY TO ADD CUSTOM MATERIAL GRADES
- BAR FEED FEATURES A ROLLER BED
W/A MATERIAL GRIPPER FEED CARRIAGE INDEXING
VIA BALL SCREW AND AC SERVO DRIVE
- 7.87" PER SECOND SHUTTLE SPEED
- COUNTER BALANCING FEATURE FOR INCLINDED CUTTING HEAD.
THIS FEATURE IS INCORPORATED TO CREATE POSITIVE TORQUE ON
SERVO FEED MOTOR FOR BETTER SAWING PERFORMANCE
- MIST EXHAUST SYSTEM
- HEAVY DUTY SAW HEAD IS DRIVEN BY BALL SCREW
AND AC SERVO DRIVE
- UNIVERSAL BAR LOADER FOR ROUND AND
SQUARE MATERIAL WITH HYDRAULIC INCLINE PITCH
ADJUSTMENT AND SAFETY GUARD SHEETS PROVIDES
INCLINED STORAGE WIDTH OF 27.9" FOR ROUNDS
MANUAL INCLINE SETTING
- 3,748 LBS CAPACITY
- PLC CONTROLLED AUTOMATIC OIL LUBRICATION
OF ALL MOVING PARTS
- OUTPUT SORTING ENSURES TRIM CUTS AND
REMNANT PIECES ARE SORTED AUTOMATICALLY
FROM GOOD PARTS
- VARIABLE VISE PRESSURE CONTROL WITH DIAL
GAUGE - TWO STATIONS WITH HYDRAULIC
HORIZONTAL AND VERTICAL CLAMPING
- COOLING NOZZLE
- BLADE LUBRICATION FEATURES TRIPLE JET SYSTEM
TO LUBRICATE BLADE
- COOLANT LEVEL GETS LOW, THE MACHINE WILL
ALARM TO ALERT THE OPERATOR
- HYDRAULIC ROTATING WIRED CHIP BRUSH ROTATES
IN BOTH DIRECTIONS FOR PROPER CHIP REMOVAL
- STATUS LIGHT INDICATING TOWER
- CHIP AUGER
- AIR COOLED ELECTRIC MAGNETIC HEAD BREAK REMOVES
ALL BACKLASH
- BUILT IN HYDRAULIC TANK AND POWER PACK
- TOOL STEEL HARDENED PRECISION BLADE GUIDES
- FOUR BLADE STARTER PACKAGE
- 285MM X 1.7MM BODY X /32 MM BORE
BLADE SPECS
- 4/9/50 MM PIN HOLES
- 4/11/63 MM BOLT HOLES
- POWER TRANSFORMER

OPTIONS AVAILABLE - PRICE ON REQUEST
- AUTOBAR LOADER 20' - HYDRAULIC INCLINE SETTING
- CHAIN AND FINGER BUNDLE UNSCRAMBLE - MAX WEIGHT 2 TONS
- CHAIN CHIP CONVEYOR
- LONG CUT OUTFEED MOTORIZED SLIDING TABLE - 1000MM TRAVEL
- LONG CUT OUTFEED MOTORIZED SLIDING TABLE - 2000MM TRAVEL
- LONG CUT OUTFEED MOTORIZED SLIDING TABLE - 3000 MM TRAVEL
- PLC PROGRAM CHANGE
- MAINTENANCE KIT - 4 SAW GUIDE PLATES, 2 METERING CARTRIDGE
LUBRICATION, 25 WIRE BRUSHES, SSR RELAY, NORMAL RELAY,
5 GLASS FUSES, PROXIMITY SENSOR, PHOTO SENSOR, AND MIST
PRE-COLLECTOR FILTERS
Power: 240, 480, 575 (3-Phase)
