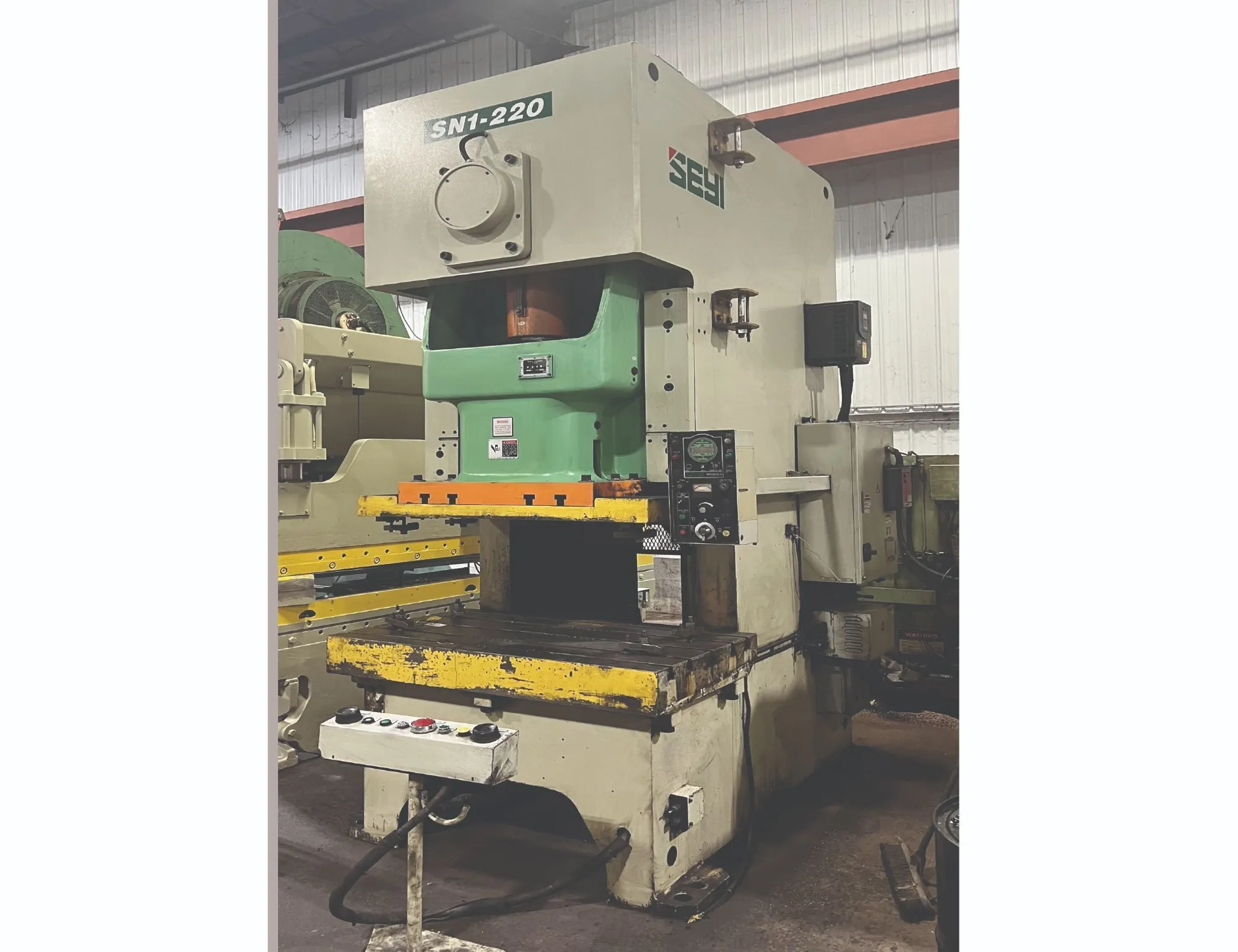

2012 used 220 Ton Seyi SN1-220, OBI Single Point Gap Frame Press. Features a 55.12" x 33.07" bed, dual palm buttons, and a range of 25-55 SPM. Equipped with hydraulic overload and powered adjustment for optimal performance. Serial#EW200-1561.
| Ton | 220 T | |
| Bed L-R | 55.12 in | |
| Bed F-B | 33.07 in | |
| Stroke | 8.66 in | |
| Adjustment | 4.3 | 4.3 |
| Shut Height | 17.72 in | |
| Speed (max) | 55 strokes/min. | 55 strokes/min. |
| Speed (min) | 25 strokes/min. | 25 strokes/min. |
| OBI Single Double | Single Crank | Single Crank |
| Control | CNC | CNC |
Serial#EW200-1561,
Seyi WPC2000-S Control
Stroke: 8.66"
Slide Adjustment: 4.33” (powered)
Die Height: 17.72”
Bolster Area: 55.12” lr x 33.07” fb
Bolster: 7” Thick
Slide Area: 33.86” lr x 25.59” fb
Speed: 25-55 SPM
17.72" Die Height
Floor to Top of Bed: 32.5”
Floor to Top of Bolster: 39.5”
Dual Palm Buttons
Hydraulic Overload
Micro Inch / Inch / Single / Continuous Modes
Clearances:
Total Clearance: .041"
Lower: .024"
Upper Connection: .009"
Main: .008"
