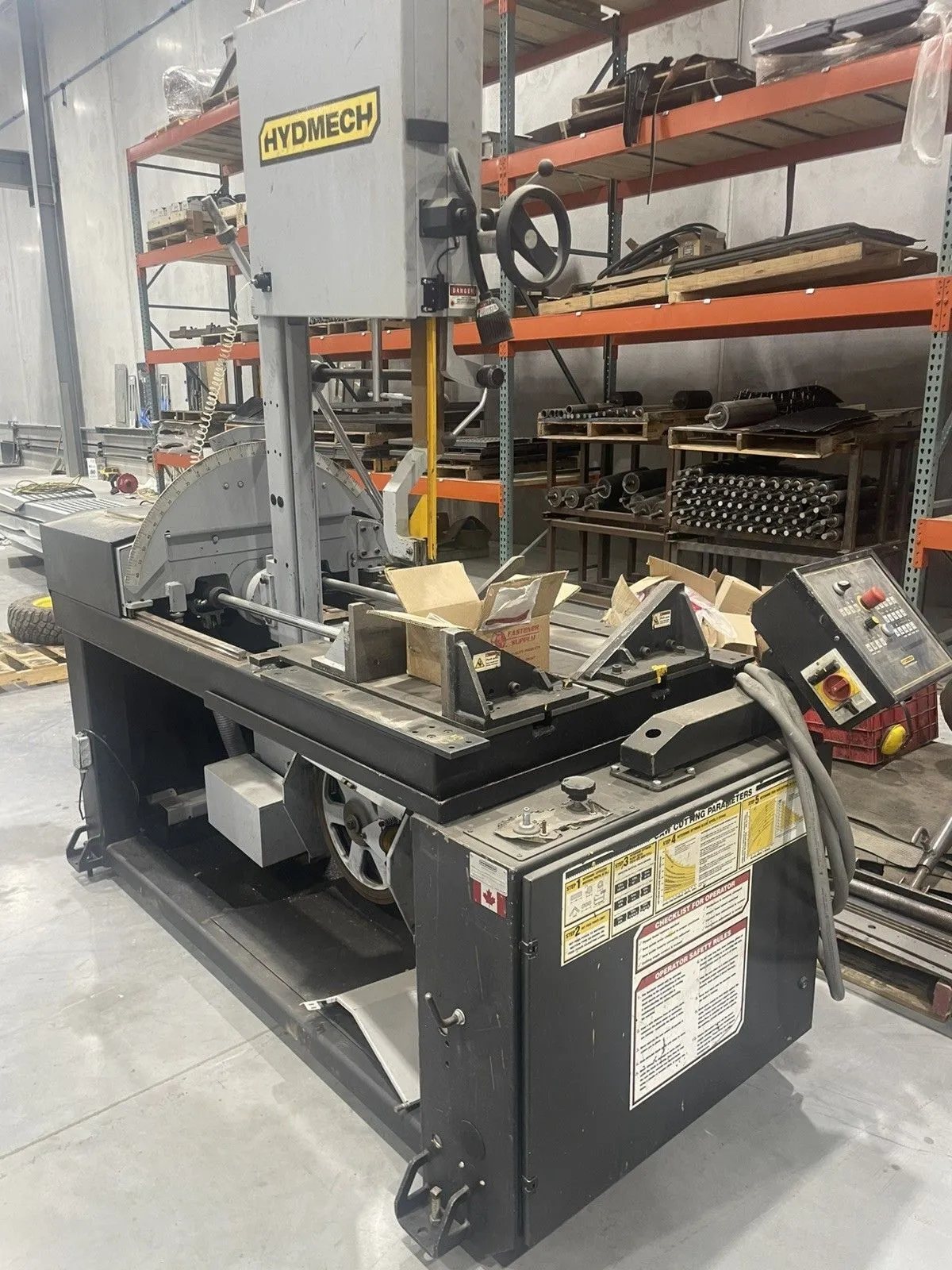

Hyd-Mech VW-18 Series II Vertical Band Saw
| Throat | 18" | 457.2 mm |
| Work Height | 22" | 558.8 mm |
| Power | 5 hp | 3.7 kW |
| Blade Width | 1" | 25.4 mm |
| Blade Length | 192" | 4,876.8 mm |
Hyd-Mech VW-18 Series II Vertical Band Saw
Capacity Rectangular (h x w) Round
90° 22″ x 18″
20 3/4″ x 18″ cant. head 17 1/2″
45° 15″ x 18″
14″ x 18″ cant. head 12 1/2″
60° Right 10 1/4″ x 18″
9 1/2″ x 18″ cant. head 10 1/4″
9 1/2″ cant. head
Blade Size 1 1/4” x 16’ 3”
Blade Drive 5 HP VFD
Machine Voltage 240 or 480 v (208, 575 optional)
Blade Speed 65-385 SFM
Coolant Tank Capacity 12 Gal.
Machine Weight 2,700 lbs.
Table Height 36 1/2”
Dimensions (w x l x h) 36” x 95” x 96”
