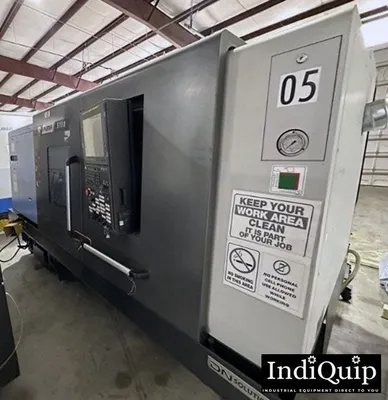

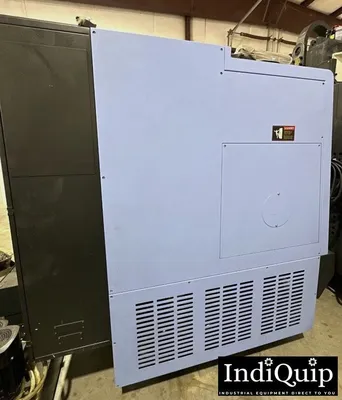

USED 2023 DOOSAN 5100B

Doosan PUMA 5100B CNC lathe with 25.6" max turning diameter, 10.8" spindle bore, and 60 HP spindle power. Heavy-duty horizontal turning center with BMT turret, high torque, and Fanuc control for oil & gas and large-part machining.

Turning Capacity
Max Turning Diameter: 25.6 in
Max Turning Length: 39.1 in
Swing Over Bed: 34.6 in
Chuck Size: 21 in
Spindle
Max Spindle Speed: 1,500 RPM
Spindle Power: 60.3 HP (30 min) / 49.6 HP (continuous)
Max Spindle Torque: 2,980 ft-lb
Spindle Bore: 10.8 in (large bore)
Axes
X-Axis Travel: 14.0 in
Z-Axis Travel: 80.4 in

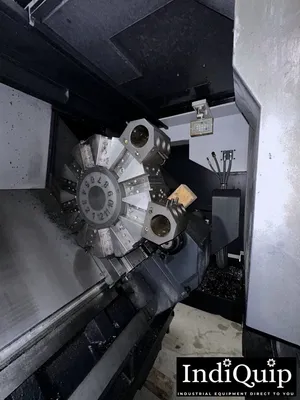

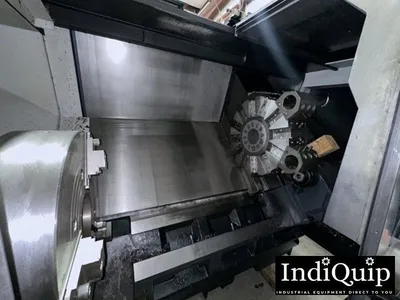

Turret & Tooling
Turret Type: BMT75P
Tool Stations: 12
Max Boring Bar Diameter: 2.4 in
Workholding / Weight Capacity
Max Chuck Load: 3,086 lb
Max Shaft Work Weight: 5,732 lb
Tailstock
Tailstock Travel: 80.7 in
Quill Diameter / Travel: 4.7 in / 4.7 in
Quill Taper: MT #6 (Live)
Machine
Approx. Machine Weight: 23,369 lb

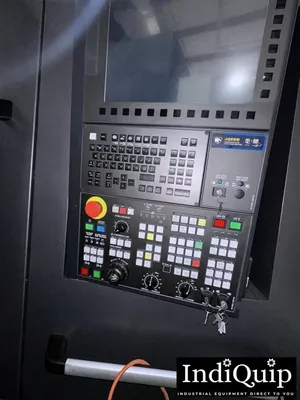

CNC Control: Doosan Fanuc i Plus / Fanuc 32i
