USED 2008 ERMAKSAN CNC SAP 12 X 176
Overview
Description

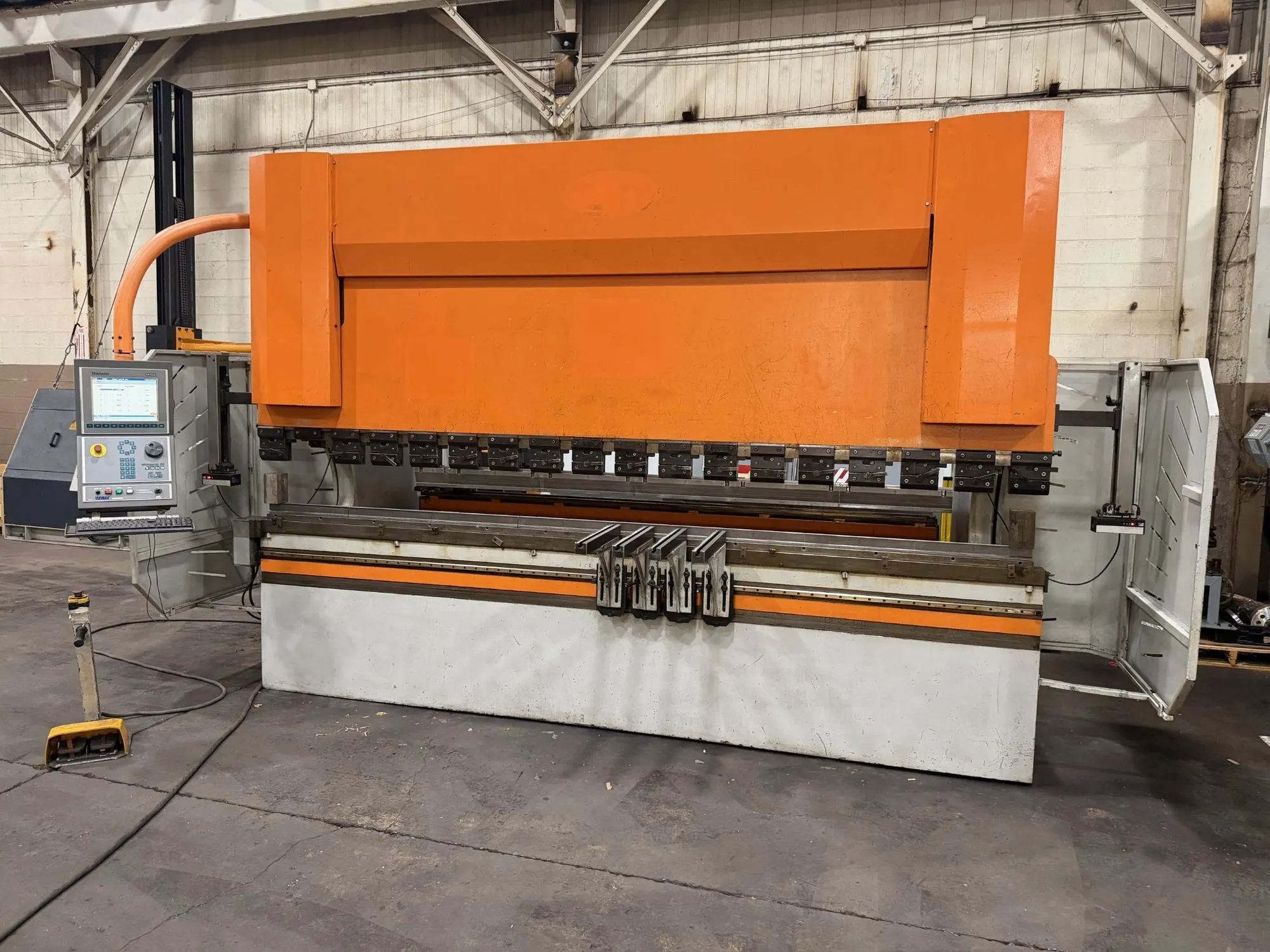

2008 Ermaksan CNC SAP 12 X 176 hydraulic press brake, featuring 176-ton capacity, 12' length, Delem DA66W CNC control, CNC crowning, and sectionalized tooling. Equipped with backgauge and laser-safe finger guard.
Specifications
| Tonnage | 176 T | 159.665 t |
|---|---|---|
| Type | HYD | HYD |
| Overall Length | 12' | 3.7 m |
| Between Housings | 128" | 3.3 m |
| Stroke | 7" | 177.8 mm |
| # Axis | 4 | 4 |
| Control | CNC (Delem DA66W) | CNC (Delem DA66W) |
| Dimensions | 71" x 193" x 114" | 71" x 193" x 114" |
| Weight | 25850 Lbs. | 25850 Lbs. |
Brand: Ermaksan
Model: CNC SAP 12 X 176
Specifications:
Tonnage: 176 Tons
Overall length bed/ram: 148"
Distance between housings: 128"
Ram depth stop style: Programmable
Upacting or downacting: Downacting
Ram tilt adjustment: Powered
Number of gauging axis: 4
X-axis backgauge travel: 39"
Stroke length: 7”
Ram clamps (sectionalized or solid bar): Sectionalized
Hydraulic or manual clamping: Manual
Number of cylinders: 2
Advance speed: 3.94 IPS
Main motor: 20 H.P.
Voltage: 220 / 440 volt 3 phase
Dimensions: 71" x 193" x 114"
Weight: 26,460 Lbs.
Equipped With
Delem DA66W CNC control
CNC crowning
Accepts American or European tooling
Full length sectionalized gooseneck punch
Full length sectionalized die
(4) Front support arms
(2) backgauge fingers
Manual Z on fingers
Laser safe finger guard
Auto gib lubrication
