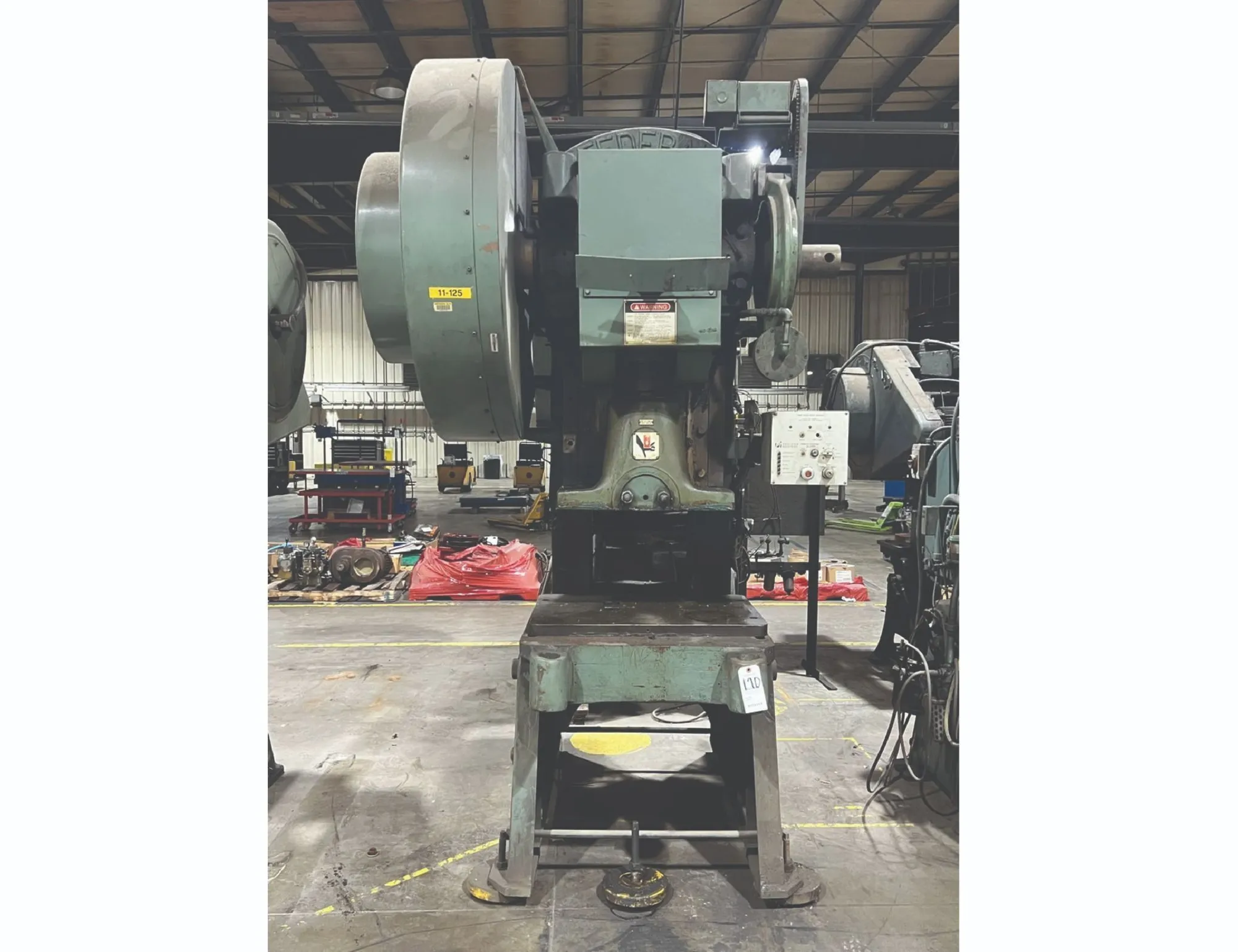

Used 70 Ton Federal #6A Single Crank Flywheel OBI Press, remanufactured in 2000. Features include 33" x 25.5" bed, 4" stroke, and air clutch. Equipped with a Precision Industries Brake Monitor for enhanced operation. Model #6A, Serial #6A-672.
| Ton | 70 T | |
| Bed L-R | 33 in | |
| Bed F-B | 25.5 in | |
| Stroke | 4 in | |
| Shut Height | 13.5 in | |
| OBI Single Double | Single Crank | Single Crank |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 6-1/2'W x 7'D | 6-1/2'W x 7'D |
Remanufactured By Federal 11/2000
Serial#6A-672
Capacity: 70 Ton
Stroke: 4”
Adjustment: 3”
Bed Size: 33” LR x 25.5” FB
Ram Size: 24” LR x 12” FB
Floor to Top of Bolster: 36"
Bolster Thickness: 1-1/2"
Floor to Top of Bed: 34-1/2"
Shut Height: 13.5
Speed: 95 SPM
Throat Depth: 13.5”
Precision Industries Brake Monitor
