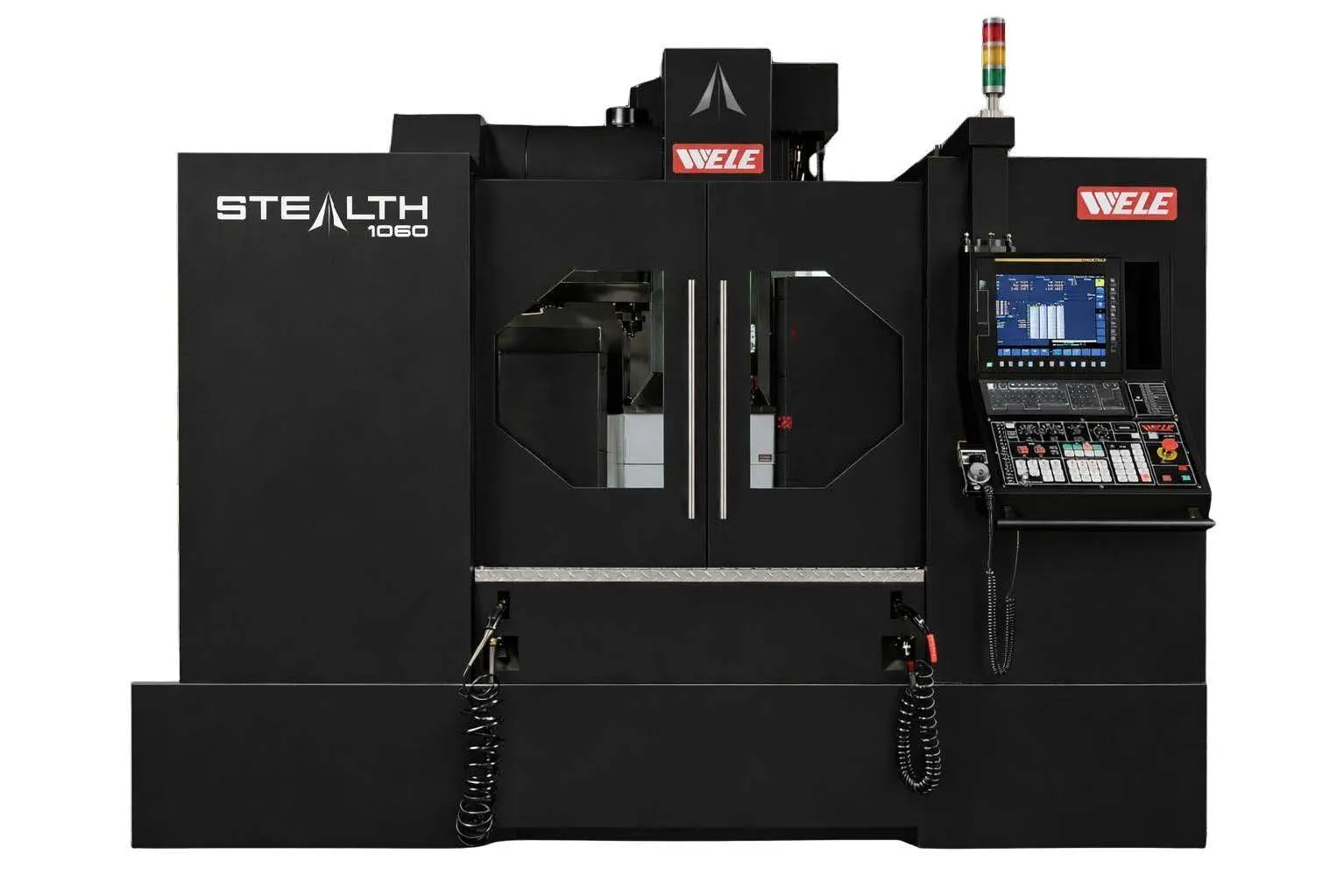

NEW TOYODA-WELE Stealth 1060

Description

Machine Features Overview:

FANUC OiMF PLUS CNC Machine Control
High Speed – 25 HP - 12,000RPM Integral Motor Spindle – Big Plus CAT40 Spindle Taper
(30) Thirty-Two Pocket Standard Automatic Tool
Precision Hand Scraped Machine Metal to Metal Contact Points for Long Term Accuracy, Vibration Dampening and Extended Machine Life
Built in WELE iSmartTune Controller Package with Tool Life Monitoring and ATC Recovery Suite
Standard FANUC Package Includes 200 Block Look Ahead Function and 2MB Memory Standard
Embedded Machine Operator and Maintenance Manuals Resident on Controller
Dual Chip Auger with X-Axis Auger as Standard Feature. Includes Coolant Wash Down
300 PSI Coolant Through Spindle System Included
BLUM ZX-Speed ATLM & TC50 Probe Included

Specifications
SPINDLE TAPERCAT40 (BIG PLUS)CAT40 (BIG PLUS)
X Travel40.2"1,021.1 mm
Y Travel23.6"599.44 mm
Z Travel23.6"599.44 mm
TABLE (L)45.2"1,148.1 mm
TABLE (W)23.6"599.44 mm
SPINDLE SPEED12,000 RPM12,000 RPM
SPINDLE HP25 hp18.6 kW
MAGAZINE CAPACITY3030
ControlCNC (Fanuc 0i MF-Plus 15” LCD)CNC (Fanuc 0i MF-Plus 15” LCD)
Weight13,000 lbs13,000 lbs
