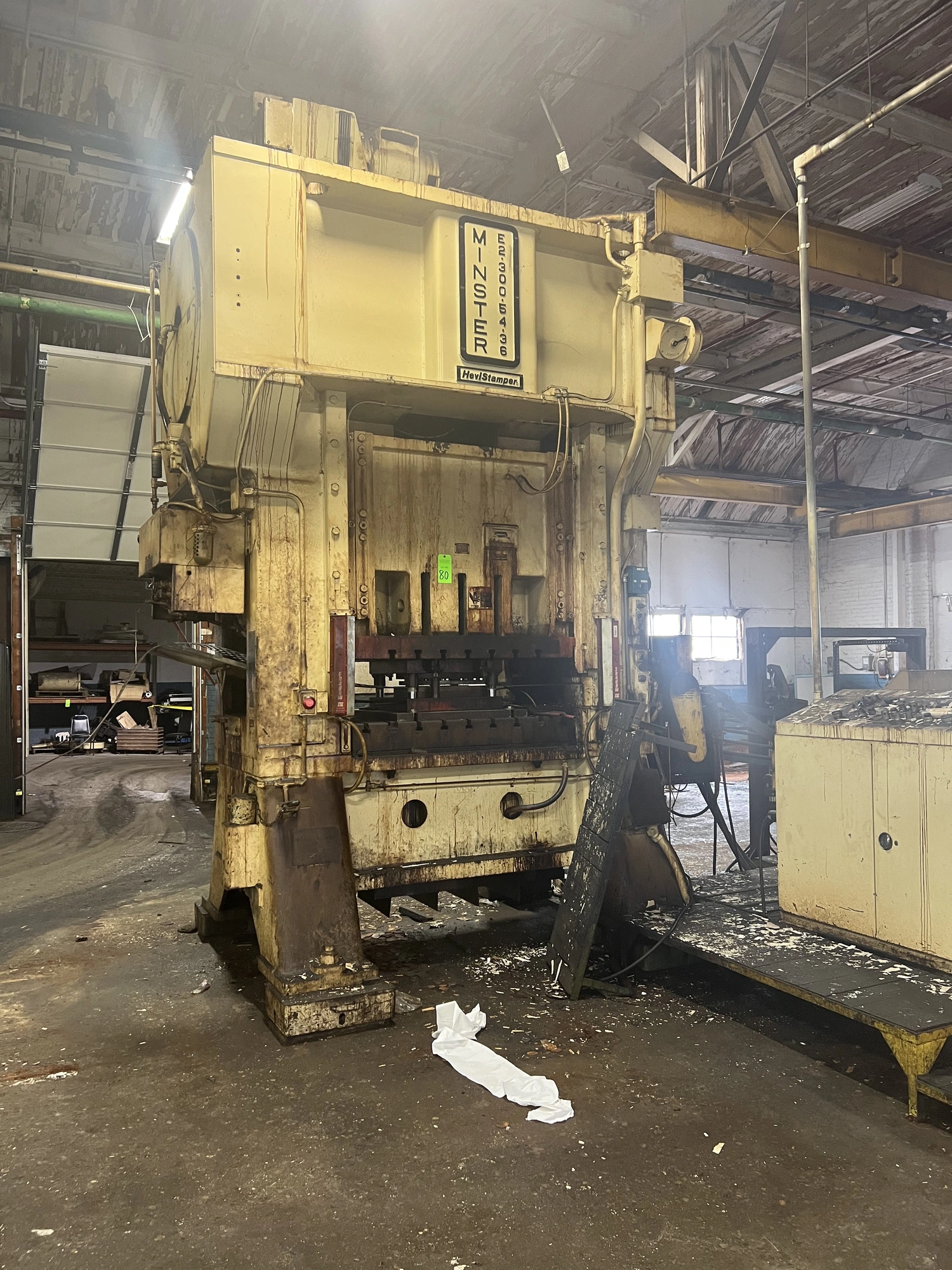

1973 Minster E2-300-54-36, 300-ton capacity press with 54"x36" bed, 1.5" stroke, and speeds up to 150 SPM. Features include air clutch/brake, air counterbalances, recirculating lubrication, 8-point gibbing, and front/back light curtains.
| Ton | 300 T | |
| Bed L-R | 54 in | |
| Bed F-B | 36 in | |
| Stroke | 1.5 in | |
| Adjustment | 6 | 6 |
| Shut Height | 22 in | |
| Min Speed | 0 spm | 0 strokes/min. |
| Max Speed | 150 spm | 150 strokes/min. |
| Windows | 21 in |
Serial# E2-300-21320
Capacity: 300 Ton
Bed Area: 54” lr x 36” fb
Stroke: 1.5”
Adjustment: 6”
Shut Height: 22” above bed (slide down adjustment up)
Bolster Thickness: 6” T slotted
Ram: T Slotted
Speed: 0 - 150 SPM
Windows: 21” wide
Equipped with:
Air Clutch and Brake
Air Counter Balances
Recirculating Lubrication System
8 Point Gibbing
Light Curtains front and back
Approx. Overall Weight: 80,000#
