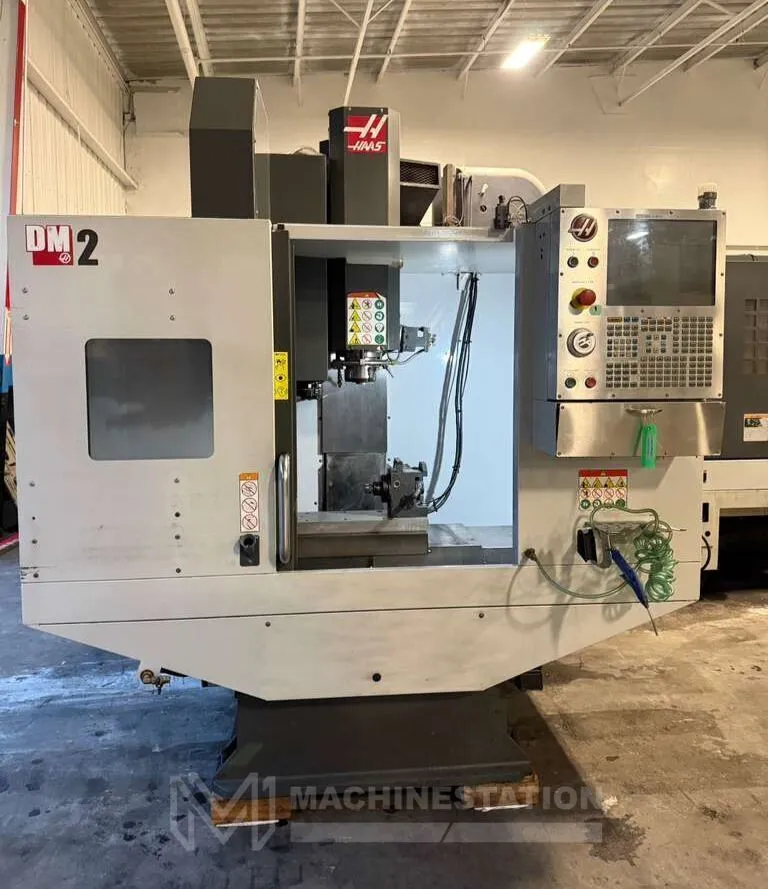

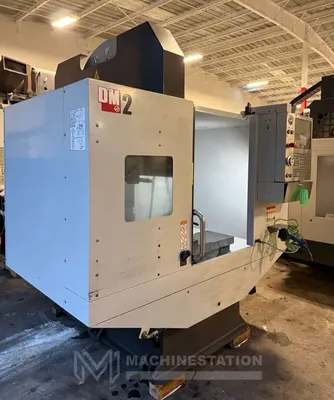

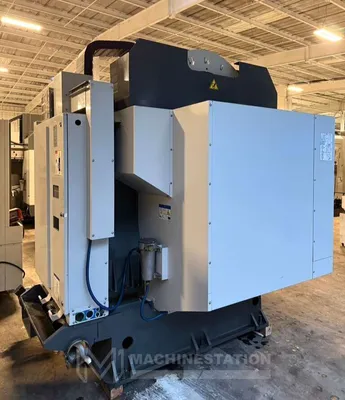

USED 2018 HAAS DM-2
Overview
Avoid Paying More! New Haas prices just went up 5% as of May 1st 2025 — plus, long lead times on new machines mean delays and higher costs. This 2018 Haas DM-2 is fully equipped with 15,000 RPM Spindle, 4th Axis Drive and Wiring, Haas 4th Axis Indexer with Tailstock, HSM and Chip Auger.
“Replacement Cost Over $107,000 with Similar Options”
Specs
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

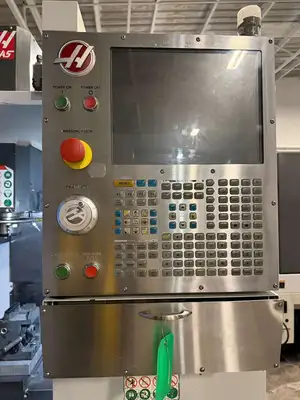

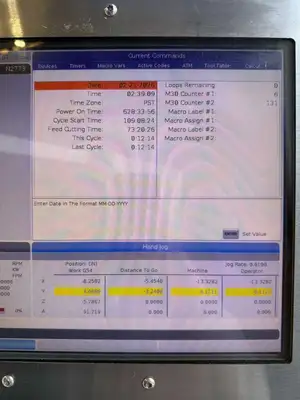

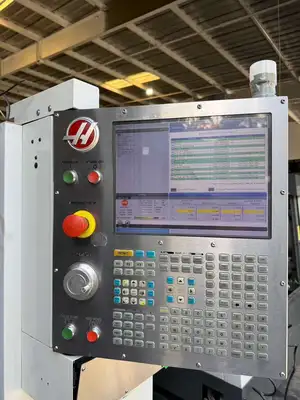

Haas CNC Control
CAT-40 Taper Spindle
18 Station Automatic Tool Changer
Rigid Tapping
Media Display
Compensation Tables
1GB Memory
Coolant System
Travel:
X-Axis: 28.0″
Y-Axis: 16.0″
Z-Axis: 15.5″
Rapid Traverse Rates: 2400 Inch Per Minute
Cutting Feed Rates: 1200 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6″ – 21.5″
Table:
Length: 34.0″
Width: 15.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 500 lbs
Spindle:

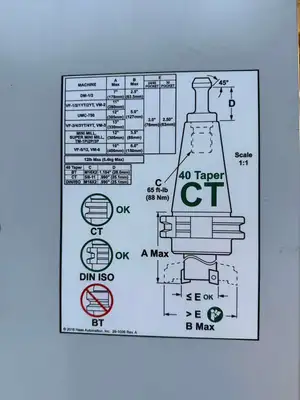

Taper Size: CAT-40
Speed Range: 15,000 RPM
Spindle Power: 15 HP
Automatic Tool Changer:
Capacity: 18 Stations Side Mounted
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″
Max Tool Length: 7.0″
Tool Changing Time: 1.75 Seconds
General:

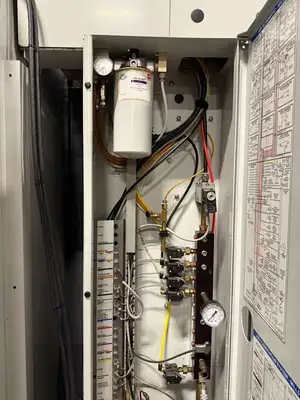

Air Required: 100 psi 4 scfm

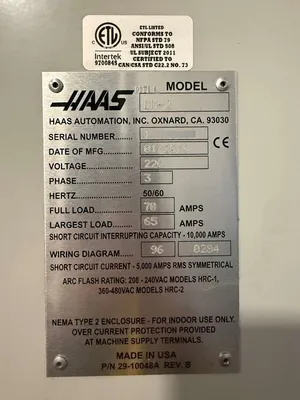

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 91″ x 100″ x 98″ High
Weight: 5,350 lbs

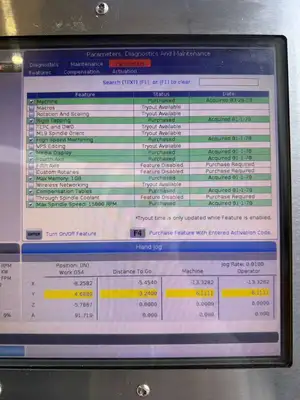

Equipped With

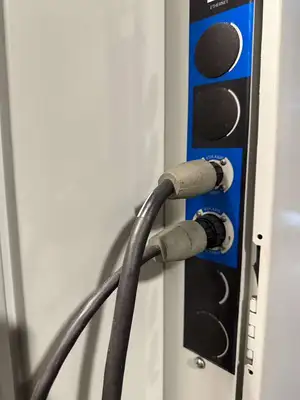

4th Axis Wiring and Drive (Upgraded $3,595 value Included)

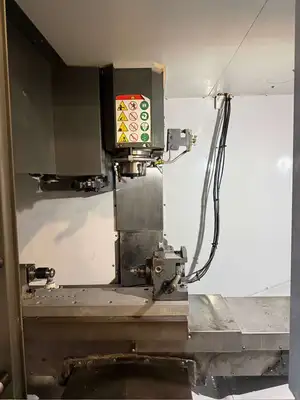

Haas 4th Axis Indexer with Tailstock (Upgraded $13,895 value Included)
15,000 RPM Spindle (Upgraded $14,695 value Included)
High Speed Machining (Upgraded $3,995 value Included)

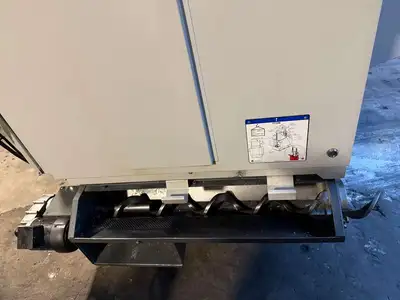

Chip Auger (Upgraded $4,095 value Included)
