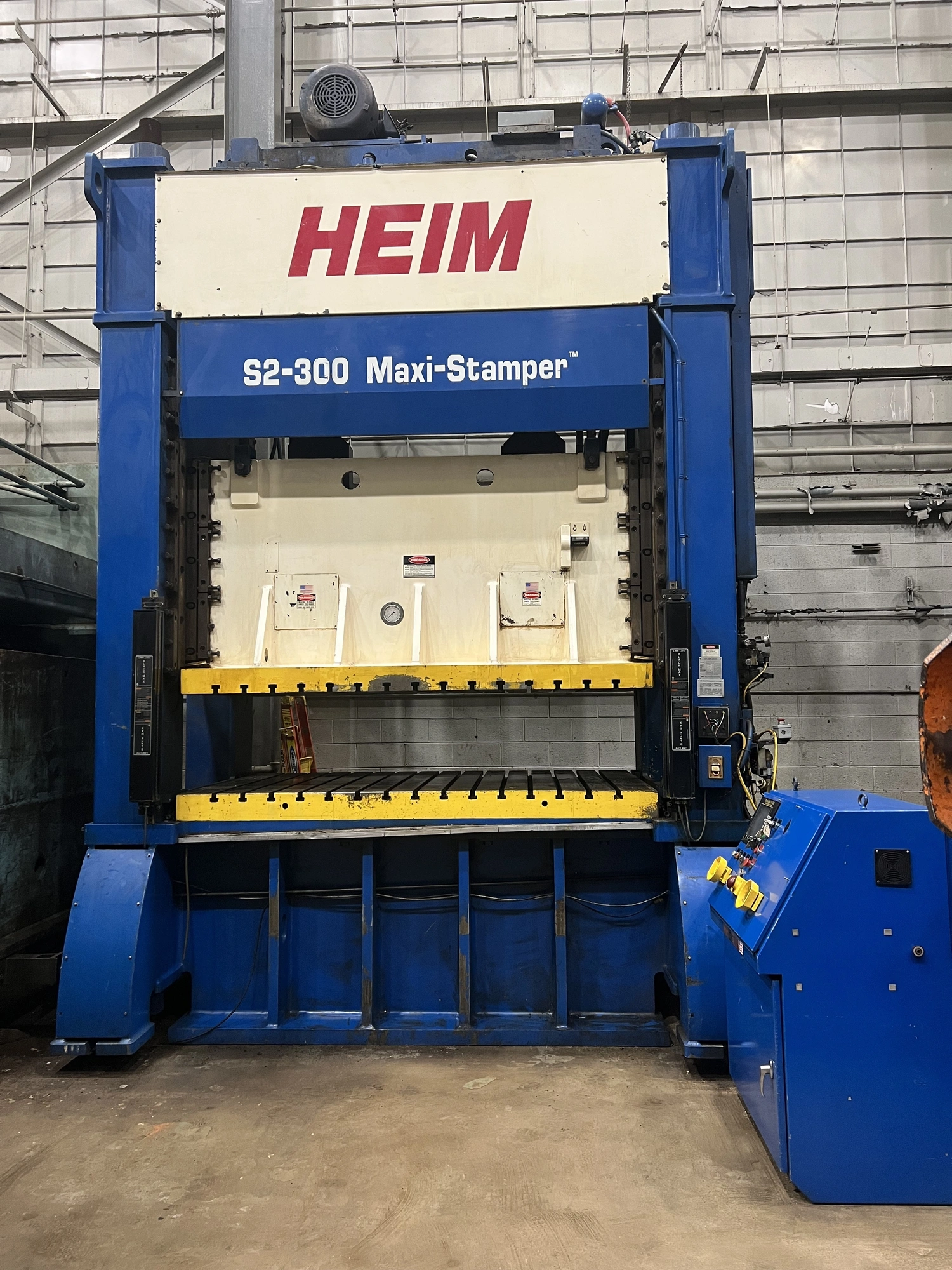

2001 HEIM S2-300 MS, 300 Ton capacity with dual crank press, 100x60 in bed, 10 in stroke, speeds of 25-50 SPM. Features Link Omnilink 5000 control, recirculating lubrication, and more. Second bolster not included; GA drawing available.
| Ton | 300 T | |
| Bed L-R | 100 in | |
| Bed F-B | 60 in | |
| Stroke | 10 in | |
| Shut Height | 32 in | |
| Min Speed | 25 spm | 25 strokes/min. |
| Max Speed | 50 spm | 50 strokes/min. |
| Windows | 38 in | |
| Dimensions | 148"L-R x 96"F-B x 228" Tall | 148"L-R x 96"F-B x 228" Tall |
| Weight | 94,000 lbs | 94,000 lbs |
Serial# H-3939
Capacity: 300 Ton
Stroke Length: 10”
Adjustment: 10”
Shut Height: 32” Over Bolster (SDAU)
Bolster Size: 100” lr x 60” fb x 6” thick
Note: second bolster in photo not included.
Speed: 25 - 50 SPM
Equipped With:
Link Omnilink 5000 Control
Die Protection
Tonnage Monitor
50 HP Motor with AC Frequency Drive (Variable)
Recirculating Lubrication
T-SLots on 6” Centers
Vibro Mounts
Dual Palm Buttons
GA Drawing on File
