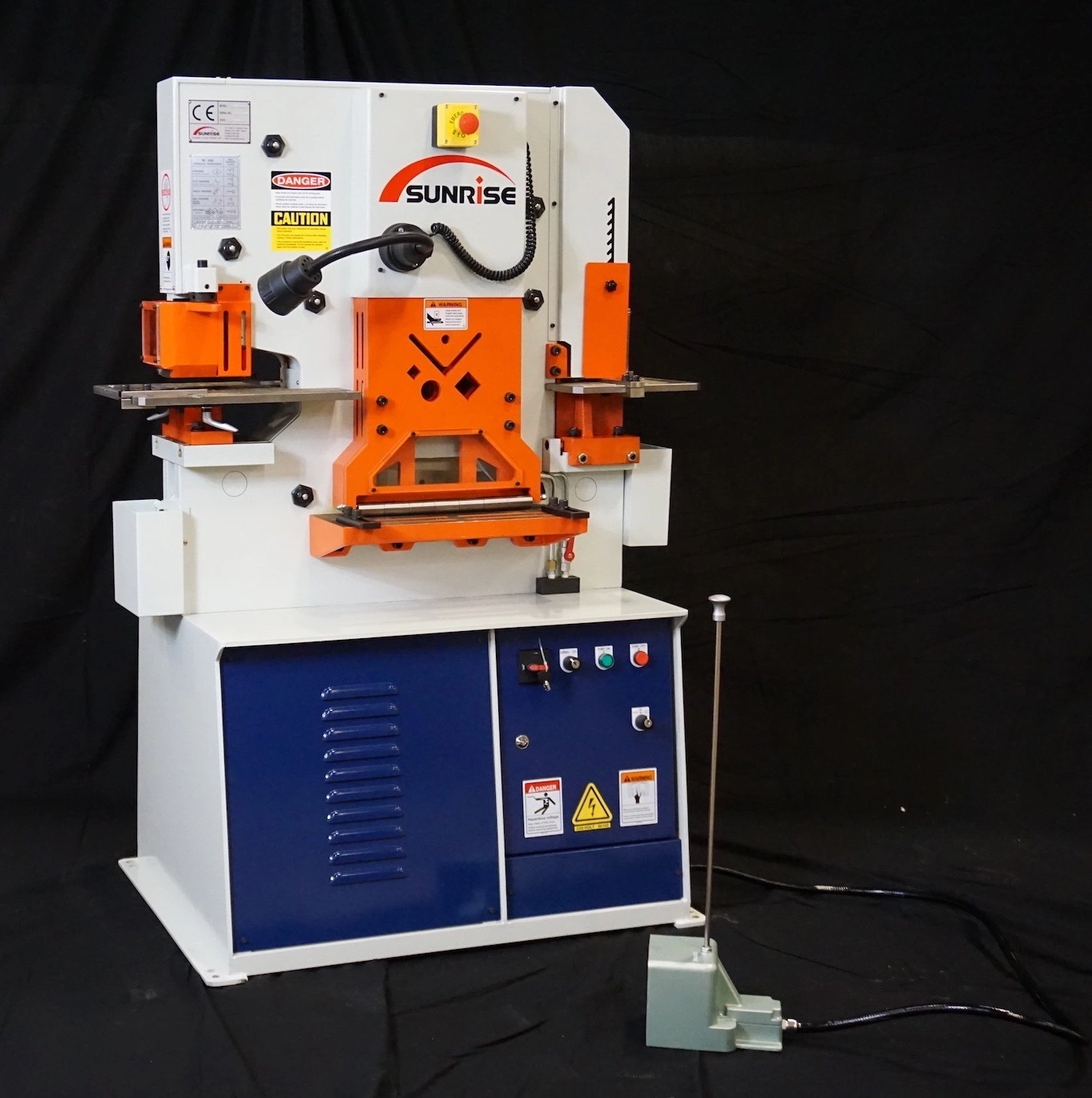

SUNRISE K-Series Ironworkers range in capacities from 50 to 95 Tons and feature a vertical cylinder design. The K-series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
The low-pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling, and more.
The large punching base with the “T-slots” provides a solid base for securing the punch tooling, as well as a wide range of optional and custom-designed tooling.
SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the bronze bushings and gibings, multi-sided blades, and the highest quality components as well a standard three-year parts warranty.
Product Features:
• Single Phase Power Only (230V/1Ph)
• Single Cylinder – Vertical Design
• Five fully integrated working stations
• Angle shear with no material loss cut and four-edge blades
• Heavy-duty adjustable punch stripper with visibility window
SUNRISE Ironworkers include, as standard, the most complete set of features of any Ironworker brand:
• 40″ Touch-and-Cut Electric Back Gauge (Optional extensions to 12′ available)
• Machined Punch Gauge Table with X-Y Positioning System
• Machined Notcher Gauge Table with X-Y Positioning
• LED Magnetic-Base Work Light
• Set of 11 Punches & Dies from American Punch – 3/8″ – 1-1/2″
• 1.5″ capacity die block with large, swing-away stripper
• Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB
• Full tank of Hydraulic Oil
• HD Start-Up Video including safety, maintenance, and operation – Including QR codes to easily access on the side of each machine.
• Extensive List of Optional Equipment: Accessory PDF
| Tonnage | 66 T | 59.874 t |
| Power | 7.5 hp | 7.5 hp |
| Throat | 7" | 177.8 mm |
| Dimensions | 47 x 30 x 64″ | 47 x 30 x 64″ |
| Weight | 2,925 Lbs | 2,925 Lbs |
Punch: 66 Tons – 7/8″ in 3/4″
Throat: 7″
Angle Shear: 4 x 4″ x 3/8″
Plate Shear: 14″ x 5/8″ with Standard Hydraulic Hold-Down for all Shearing Functions!
Notcher: 2″ x 3-1/2″ x 5/16″
HP: 7.5
Power Requirements: Single Phase | 230V/1Ph
Machine Size: 47 x 30 x 64″ – 2925#
