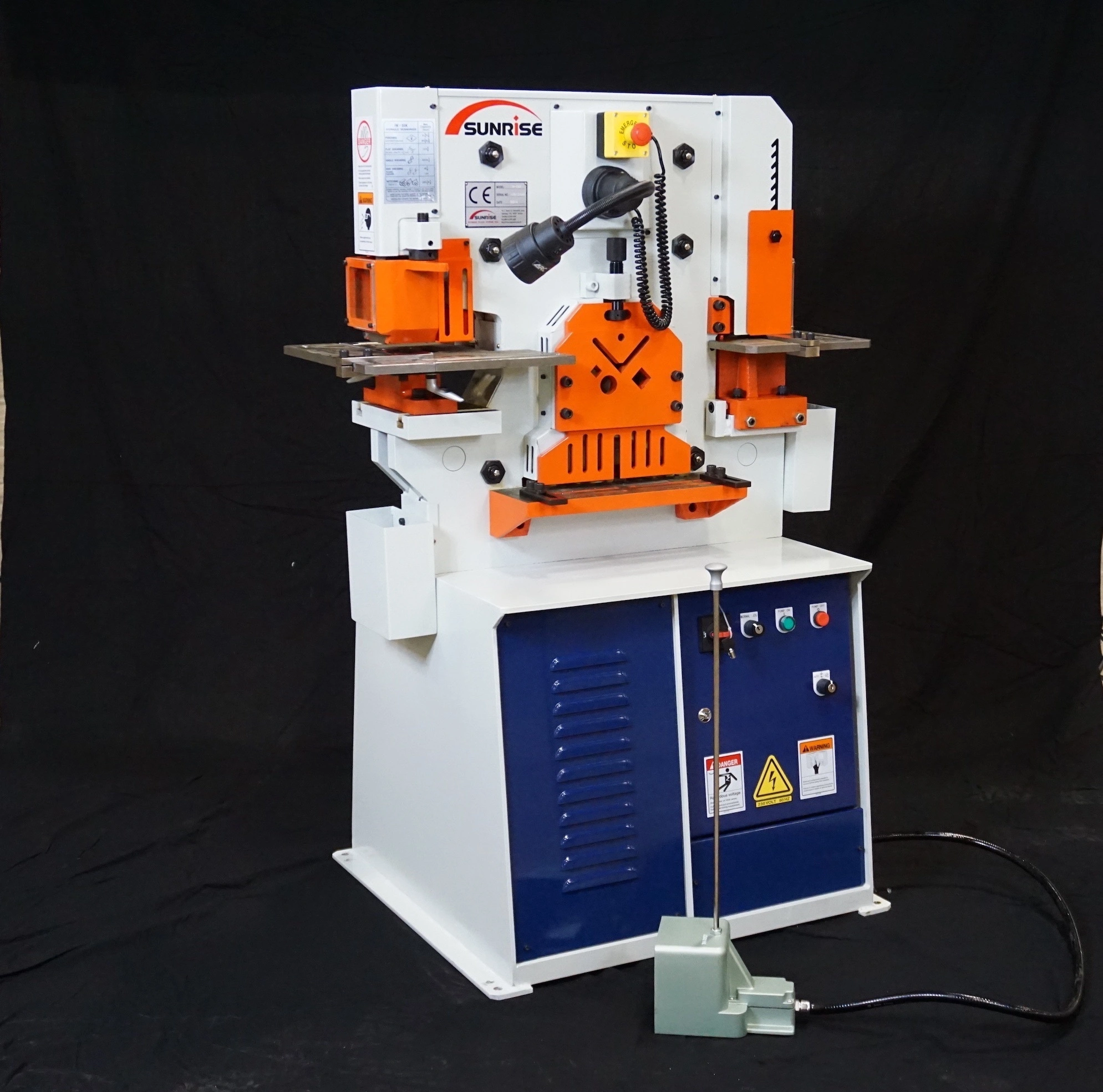

SUNRISE K-Series Ironworkers range in capacities from 50 to 95 Tons and feature a vertical cylinder design. The K-series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
The low-pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling, and more.
The large punching base with the “T-slots” provides a solid base for securing the punch tooling, as well as a wide range of optional and custom-designed tooling.
SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the bronze bushings and gibings, multi-sided blades, and the highest quality components as well a standard three-year parts warranty.
Product Features:
• Single Phase Power Only (230V/1Ph)
• Single Cylinder – Vertical Design
• Five fully integrated working stations
• Angle shear with no material loss cut and four-edge blades
• Heavy-duty adjustable punch stripper with visibility window
SUNRISE Ironworkers include, as standard, the most complete set of features of any Ironworker brand:
• 40″ Touch-and-Cut Electric Back Gauge (Optional extensions to 12′ available)
• Machined Punch Gauge Table with X-Y Positioning System
• Machined Notcher Gauge Table with X-Y Positioning
• LED Magnetic-Base Work Light
• Set of 11 Punches & Dies from American Punch – 3/8″ – 1-1/2″
• 1.5″ capacity die block with large, swing-away stripper
• Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB
• Full tank of Hydraulic Oil
• HD Start-Up Video including safety, maintenance, and operation – Including QR codes to easily access on the side of each machine.
• Extensive List of Optional Equipment: Accessory PDF
| Tonnage | 50 T | 45.359 t |
| Angle (L1) | 3" | 76.2 mm |
| Angle (L2) | 3" | 76.2 mm |
| Angle (T) | 0.25" | 6.35 mm |
| Power | 5 hp | 5 hp |
| Throat | 6.5" | 165.1 mm |
| Dimensions | 41 x 30 x 58 | 41 x 30 x 58 |
| Weight | 1848 | 1848 |
Punch: 50 Tons – 1-1/2″ in 3/8″ material or 13/16″ in 11/16″ material
Throat: 6-1/2″
Angle Shear: 3″ x 3″ x 1/4″
Plate Shear: 12″ x 3/8″
Notcher: 2″ x 3-1/2″ x 1/4″
HP: 5
Power Requirements: 3 Phase | 220/480 (Optional Single Phase Motor Available)
Machine Size: 41″ x 30″ x 58″ – 1,848 Lbs
