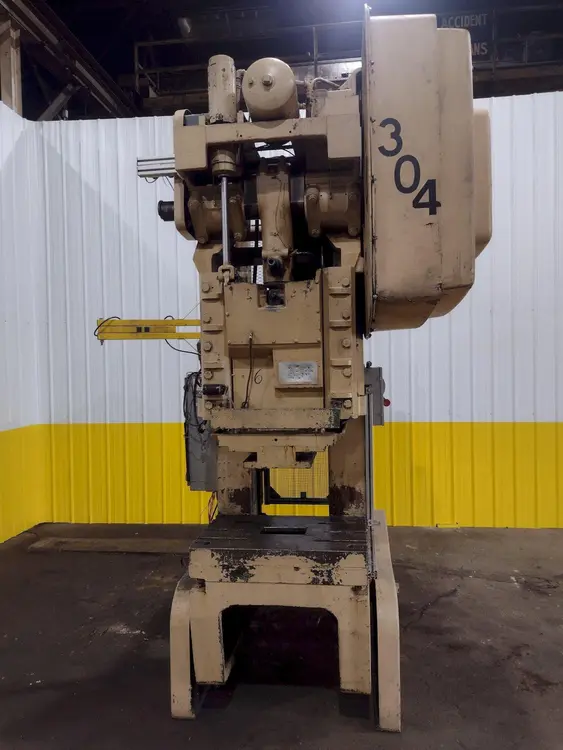

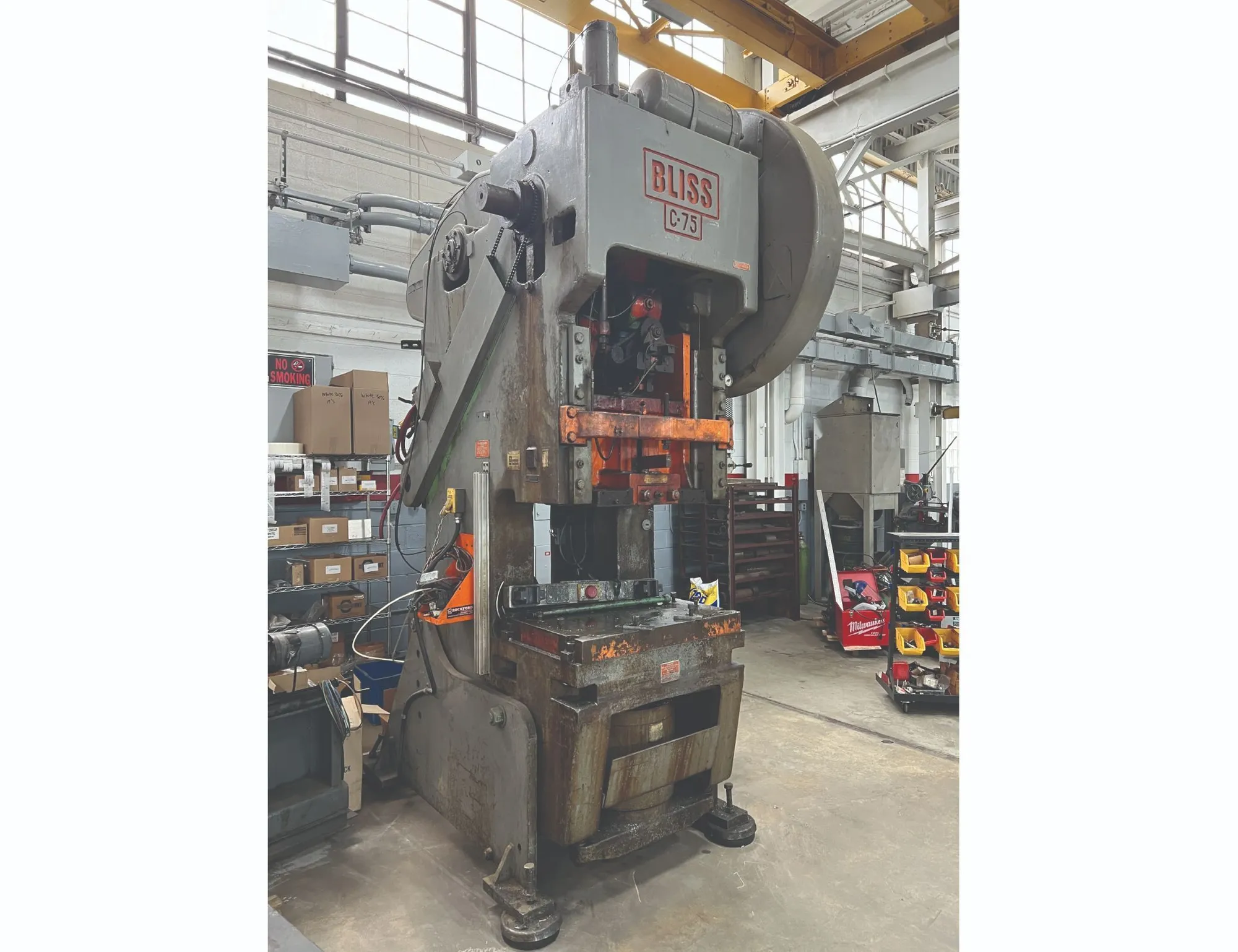

Used 1968 Bliss C-75 OBI Press, 75-ton capacity, features a 36" x 24" bed area, 4" stroke, and air clutch/brake system. Includes 10 HP variable speed motor and air cushion.
| Ton | 75 T | |
| Bed L-R | 36 in | |
| Bed F-B | 24 in | |
| Stroke | 4 in | |
| Adjustment | 3.5 in | |
| Shut Height | 17.5 in | |
| OBI Single Double | Single Crank | Single Crank |
| Dimensions | 6'6"W x 8' D | 6'6"W x 8' D |
Capacity: 75 Ton
Stroke: 4”
Slide Adjustment: 3 1/2”
Shut Height: 17 1/2”
Speed: 80 SPM (To Be Verified)
Bed Area: 36”LR x 24” FB
Bolster Area: 34”LR x 24"FB x 3" Thick, Drilled & Tapped
Slide Area: 23” LR x 18” FB
Equipped With:
Air Clutch & Brake
Air Cushion
10 HP Variable Speed Motor
