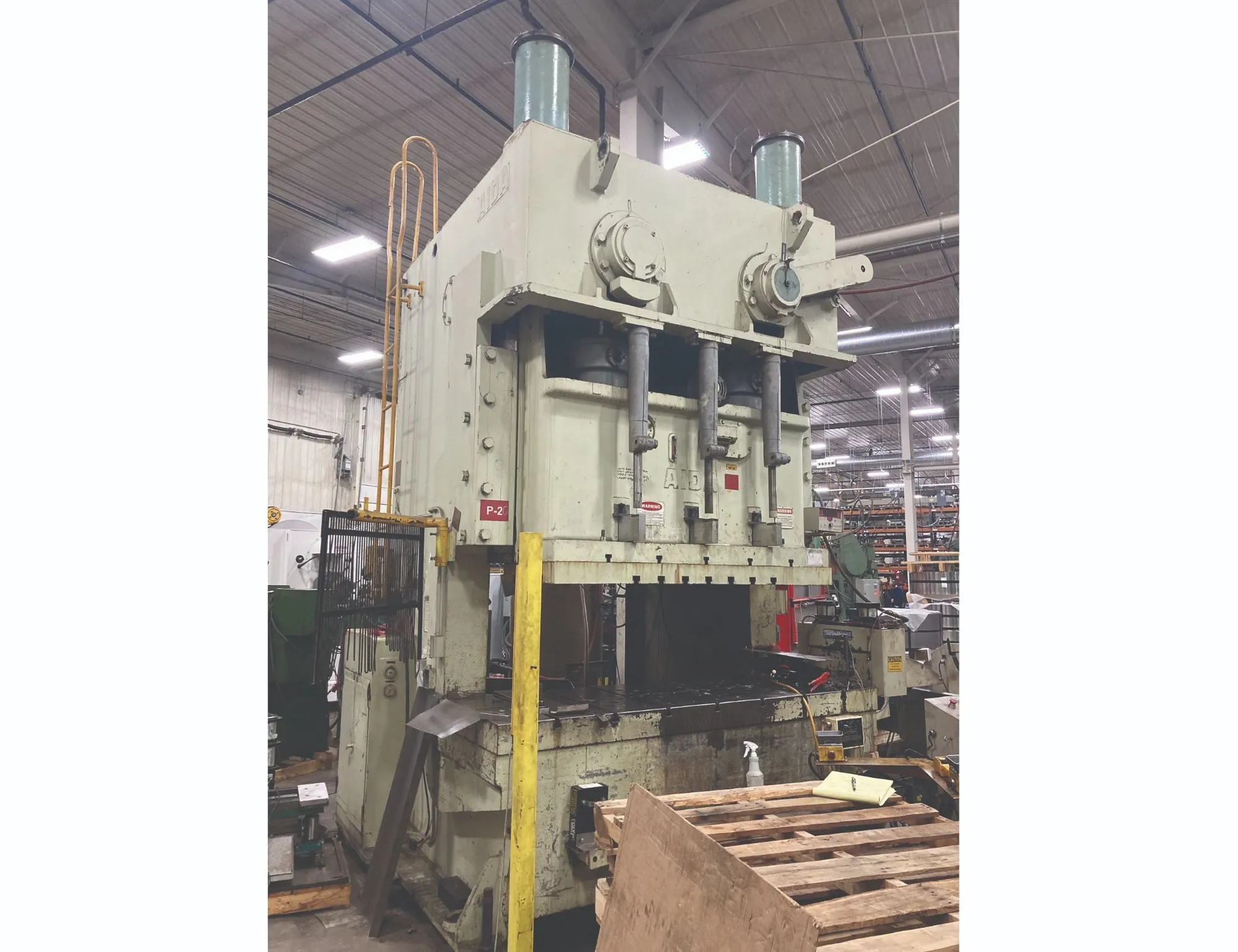

Used 220 Ton Aida Double Crank Gap Frame Press, Model PDC-20, offers 220T capacity, 94.4"x31.4" bed, and 33 SPM speed. Features air clutch, dual palm buttons, and air counterbalances, ideal for demanding operations. Serial# 10620-0045, approx. 65,000 lbs.
| Ton | 220 T | |
| Bed L-R | 94.4 in | |
| Bed F-B | 31.4 in | |
| Stroke | 9.8 in | |
| Adjustment | 4.0 | 4.0 |
| Shut Height | 19.6 in | |
| Speed (max) | 33 strokes/min. | 33 strokes/min. |
| OBI Single Double | Double Crank | Double Crank |
| Cushions | Yes | Yes |
| Air Clutch (Yes/No) | Yes | Yes |
Serial# 10620-0045
Capacity: 220 Ton
Stroke: 9.8”
Adjustment: 4.1”
Shut Height: 19.6” SDAU over bolster
Bed Size: 94.4” lr x 31.4” fb
Slide Area: 72” lr x 25.5” fb
Speed: 33 SPM
Equipped with:
Air Clutch & Brake
Air Counter Balances
Dual Palm Buttons
Main Motor: 20 HP
(2) Die Cushions
Approx Dimensions:108” lr x 102” fb x 173” high
Approx Weight: 65,000#
