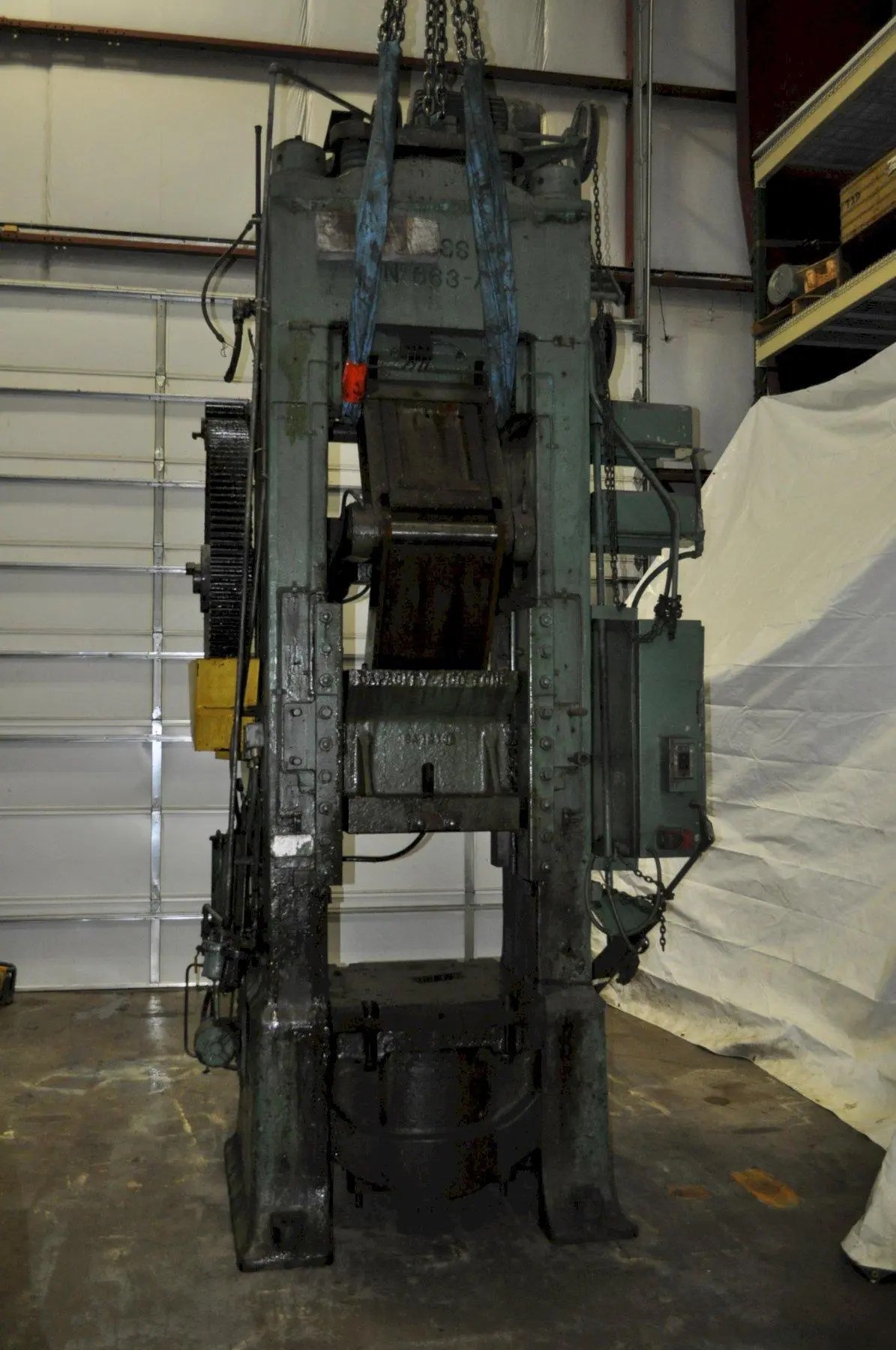

Available: 400 Ton Bliss Knuckle Joint Press, Model 663-A, Year 1955. Features include 400 T capacity, 30.5" x 30.5" bed, 10" stroke, 19.5" shut height, 18 spm speed, dual palm buttons, and inch/single stroke mode. Serial# T35341.
| Ton | 400 T | |
| Bed L-R | 30.5 in | |
| Bed F-B | 30.5 in | |
| Stroke | 10 in | |
| Shut Height | 19.5 in | |
| Speed | 18 spm | 18 strokes/min. |
| Dimensions | 75" lr x 75" fb x 183" tall | 75" lr x 75" fb x 183" tall |
| Weight | 35,000# | 35,000# |
Serial# T35341
Capacity: 400 Ton
Bed Area: 30.5” x 30.5”
Ram Area: 25.5” lr x 21” fb
Approx 4” thick bolster
Stroke: 10”
Shut Height: 19.5” over bed
Adjustment: 1/2”
Speed: 18 SPM
Dual Palm Buttons
Inch / Single Stroke Mode
