USED 2023 JPW INDUSTRIAL OVENS #C2-83-139TULEP480V45-60KW

Located in Minneapolis, Minnesota, this JPW Industrial 40’ Conveyor Curing Oven offers high-capacity, precision-controlled thermal processing and can be inspected under power. To schedule an inspection, please contact us.

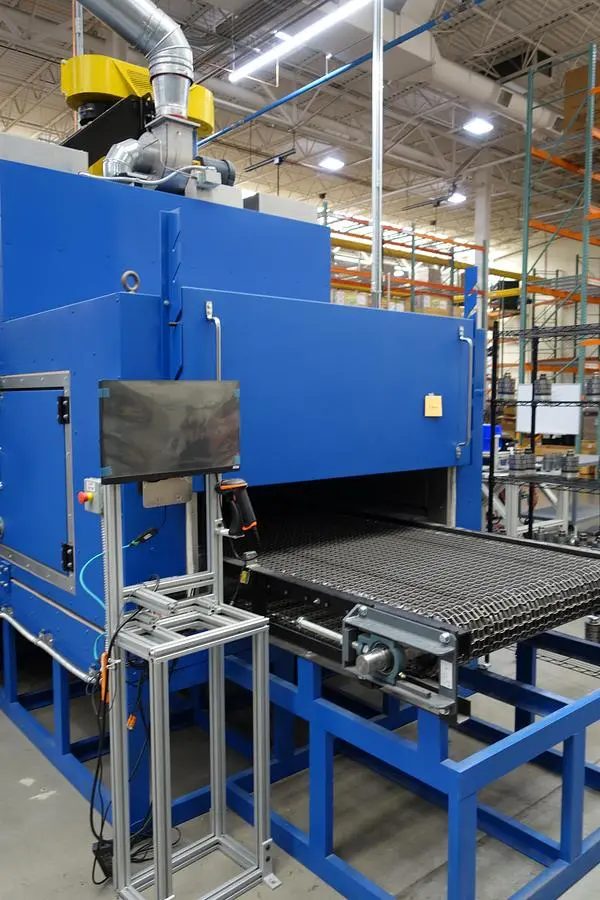

This 2023 oven, model C2-83-139TULEP480V45-60KW, is designed for continuous conveyor curing operations up to 200°C. It features 4.5” thick insulated walls, ceiling, and floor, with a CRS blue-painted exterior and an aluminized interior for durability and thermal efficiency. The conveyor is 42” wide, heavy-duty flatwire with steel support, and rated for 2,000 lb load. The system is fully controlled via AB PLC with HMI monitoring, including Watlow PM high-limit sensors for safety.
The oven has two independently controlled zones:
Zone 1: 70–100°C ±3°C, 45 KW heat, 142” L x 42” W x 24” H heating section, 18,000 CFM recirculation fan.
Zone 2: 100–150°C ±3°C, 60 KW heat, 237” L x 42” W x 24” H heating section, 23,000 CFM recirculation fan.
Additional features include:

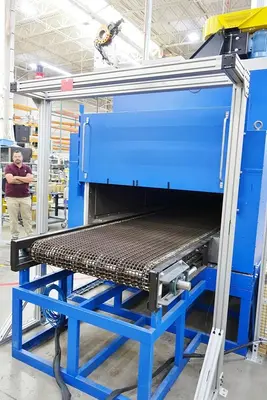

Adjustable inlet/outlet crank doors (max 21” open)
Skid frame elevating conveyor to 36” from floor
Conveyor speed: 1.25–3.5” per minute

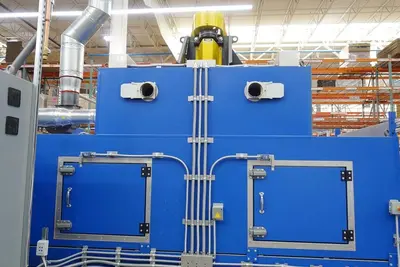

High-volume recirculation fans with VFD control for precise airflow

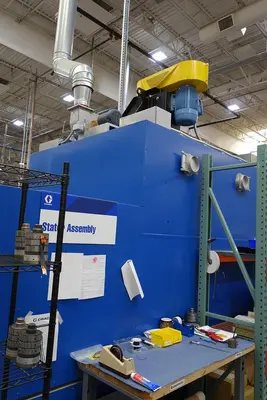

1,500 CFM forced exhaust (VFD-controlled)
Vertical down airflow with 12–14” center dead zone between conveyors

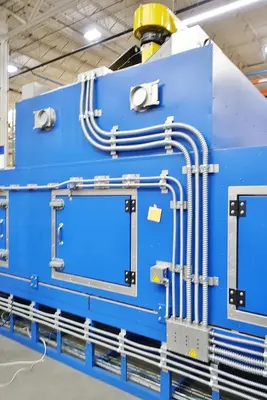

Safety features: fused rotary disconnect, E-stops at both ends, right-side access doors doubling as explosion relief
Effective Work Area:
Zone 1: 3’ 6” W x 2’ 0” H x 11’ 10” L
Zone 2: 3’ 6” W x 2’ 0” H x 19’ 9” L
External Dimensions: 8’ 9” W x 11’ 0” H x 39’ 2” L
Total Heat Capacity: 105 KW (45 KW Zone 1 / 60 KW Zone 2)

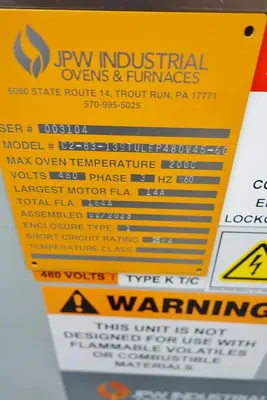

Electrical Requirements: 480V, 3-phase, 60 Hz, 163 amps (recommended 300-amp breaker)
This high-capacity curing oven is ideal for industrial production requiring precise temperature control and large throughput.
Sold As -Is, As Inspected.
