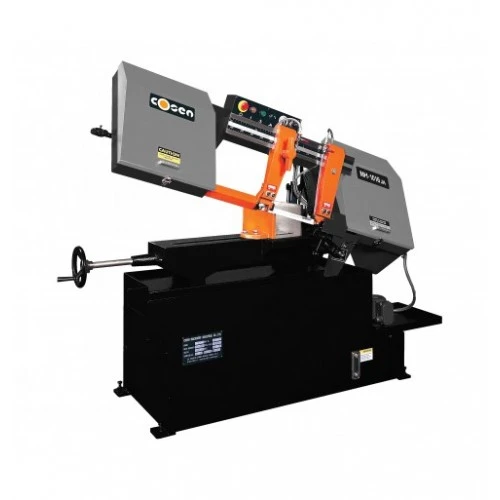

COSEN MH-1018JA HORIZONTAL BAND SAW 10" ROUND CAPACITY 2 HP WITH COOLANT

COSEN MH-1018JA HORIZONTAL BAND SAW 10" ROUND CAPACITY 2 HP WITH COOLANT
The MH-1018JA comes equipped with a manual vise and adjustable hydraulic down feed. It is an ideal band saw for the small to medium machine shop, maintenance shop, metal fabricating shop, school, and for limited run production work. It is a great machine for cutting square, round, and rectangular solids, as well as tubing material. Its solid construction ensures many years of reliability and accuracy at a high level of performance.

Round Capacity
10"

Rectangular Capacity (HxW)
9" x 16.5"

Blade Speed
60Hz: 75, 121, 190, 305 FPM

Blade Size (LxWxT)
11' 6" x 1" x .035"

Blade Motor
2 HP

Coolant Motor
1/8 HP

Coolant Tank Capacity
---

Hydraulic Tank Capacity
---

Workbed Height
25.6"

Weight
950 lbs

Floorspace (LxWxH)

68" x 29" x 41"
Hydraulic cylinder plus precision ground hinge support

Step pulley drive

Adjustable flood coolant system

Hardened worm gear for durability

Carbide blade guides and bearing provides additional blade support

Rigid cast-iron guide arms

Cast-iron vise

Vises can rotate to allow a 45 degree cut

Blade cleaning chip brush

Adjustable down-feed control
