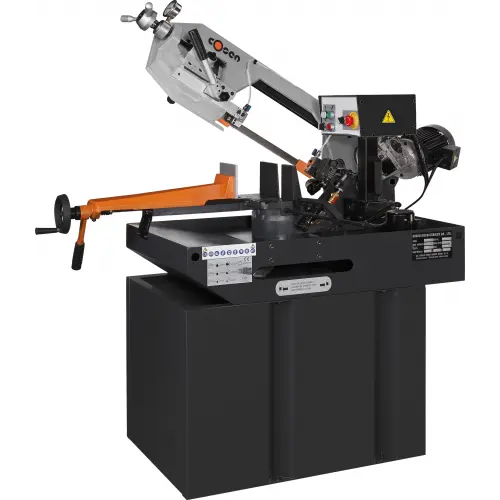

COSEN MH-270M MANUAL MITERING HORIZONTAL BANDSAW

COSEN MH-270M MANUAL MITERING HORIZONTAL BANDSAW 6" X 9.375" Rectangular Cutting Capacity At 90 Degrees; 6" x 6" Square Capacity At 90 Degrees; 8.750" Round Cutting Capacity At 90 Degrees; 1" Blade Width, 1 1/2 HP Main Motor, With Coolant System; Variable Speed - 125 - 250 FPM; Rugged Construction For Many Years Of Reliable, Accurate Performance;

COSEN MODEL MH-270M

Manual Mitering Cutting

Horizontal Bandsaw

Cosen’s Model MH-270M is an ideal machine tool for machine shops, maintenance facilities, fabrication shops, and limited production work. The rugged construction insures many years of reliable, accurate performance.

SPECIFICATIONS

Maximum Cutting Capacity:

Round

90°...8.750" (225 mm)

45°...5.750” (145 mm)

30°...3.50” (90 mm)

Square

90°...6” x 6"

45°...5.750” x 5.750”

30°...3.5” x 3.5”

Rectangle

90° H x W...6.0” x 9.375" (150 x 245 mm)

45° H x W...5.750” x 8.0” (145 x 210 mm)

30° H x W...3.50” x 7.0” (90 x 180 mm)

Blade:

Speed – Variable...125 – 250 fpm

Size...1" x 97-5/8” x .035" (27mm x 2480mm x .9mm)

Guides...Tungsten Carbide w/Roller bearings

Motor:

Saw Blade...1 ½ hp

Coolant...1/8 hp

Weight...550 lbs.

Power...220V, 1 ph, 60 Hz

Shipping Dimensions...56” x 30” x 36”

Floor Space (L x W x H)...52" x 28" x 52.2"

MH-270M Machine Features

— Coolant system.

— Wire blade chip brush.

— Swivel saw frame for miter cutting capability adjustable left cutting angle from 0。 to 60。

— Quick clamping vise, equipped with quick short range sliding device.

— Blade tensioning system fitted with light indicator and fixed screw for blade integrity checking

— Quick blade changeover with no need of tools

— Adjustable material stopper for mass-produced cuts
